Retrofit iPod wiring harness - AZ82.60-P-0001-02SC

Remove glove box lamp (E13/1) from glove box (4).
Release damping material (8) from glove box (4) as per picture and fold upwards.

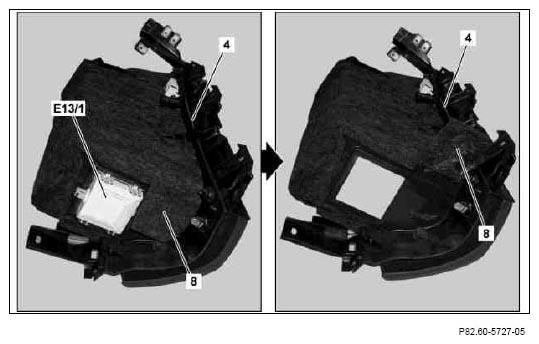

Fig 1: Identifying Glove Box Lamp Of Glove Box And Damping Material
Courtesy of MERCEDES-BENZ USA
Drill hole (C) with Ø=20 mm in glove box (4) as per dimensioning.
Ensure that no other components are damaged when drilling the hole (C).

Illustrated on model 221

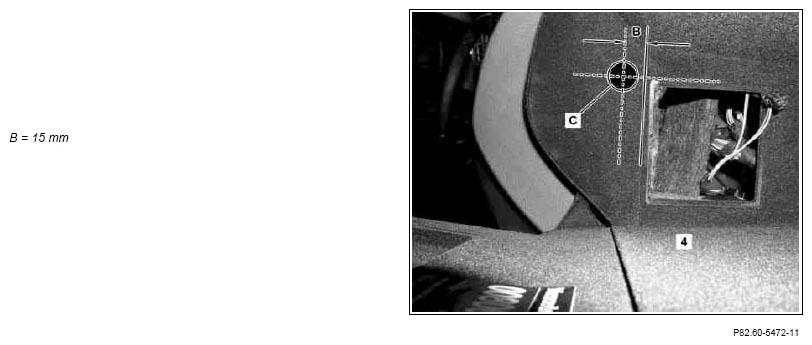

Fig 2: Identifying Drill Hole Dimensions
Courtesy of MERCEDES-BENZ USA

Fig 3: iPod Wiring Harness Routing Diagram
Courtesy of MERCEDES-BENZ USA
Slide interface coupling (5) of iPod wiring harness (1) from the inside to outside through hole drilled in glove box (4).
Seal hole with grommet (6) of iPod wiring harness (1).
Install glove box lamp (E13/1) in glove box (4).
Secure damping material (8) over drilled hole and iPod wiring harness (1) to glove box (4) as per picture.
Position glove box (4) with Pod wiring harness (1) in front passenger footwell.
iPod coupling (2) is connected to iPod at a later point in time. Interface connector (5) is connected to the iPod interface at a later time.

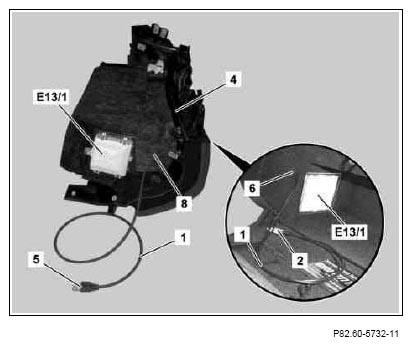

Fig 4: Identifying Interface Coupling And Grommet Of iPod Wiring Harness
Courtesy of MERCEDES-BENZ USA
