Retrofit Mercedes-Benz InCar Internet adapter wiring harness - AZ82.85-P-0005-02SX

Connection scheme

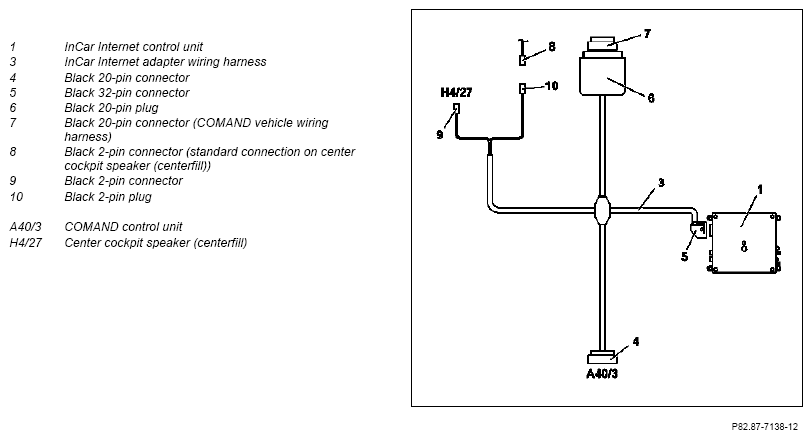

Fig 1: Connection Scheme Of Retrofit Mercedes-Benz Incar Internet Adapter Wiring Harness

Courtesy of MERCEDES-BENZ USA

Routing diagram, shown on model 221

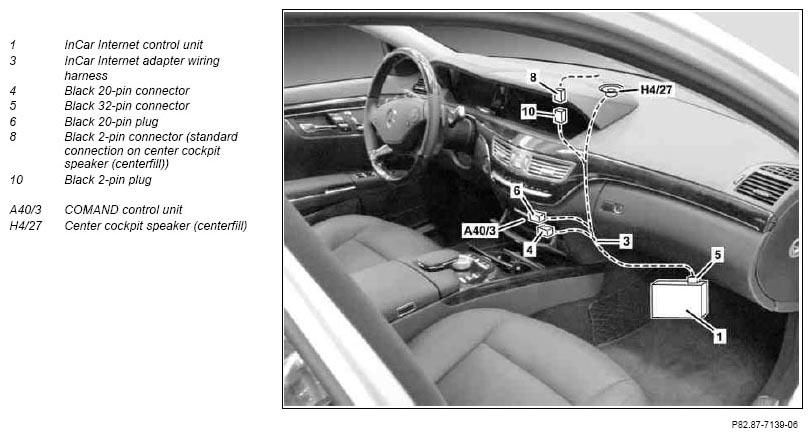

Fig 2: Routing Diagram Of Retrofit Mercedes-Benz Incar Internet Adapter Wiring Harness (Shown On Model 221)

Courtesy of MERCEDES-BENZ USA

1. Wrap felt tape around speaker branch-off line (3.1) of InCar Internet adapter wiring harness (3).

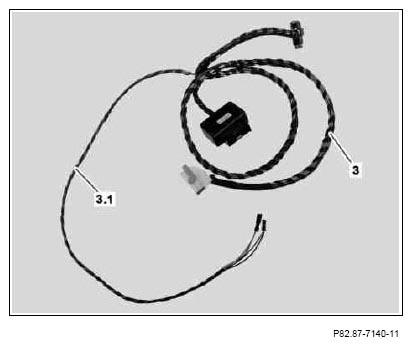

   Fig 3: Routing Diagram Of Incar Internet Adapter Wiring Harness

   Courtesy of MERCEDES-BENZ USA
2. Connect black 20-pin plug connector (6) of InCar Internet adapter wiring harness (3) to black 20-pin connector (7) of vehicle wiring harness.
3. Remove black, 2-pin optical fiber connector (11) from black, 20-pin connector (7), and install in black, 20-pin connector (4).
4. Route InCar Internet adapter wiring harness (3) at bottom left in installation opening.

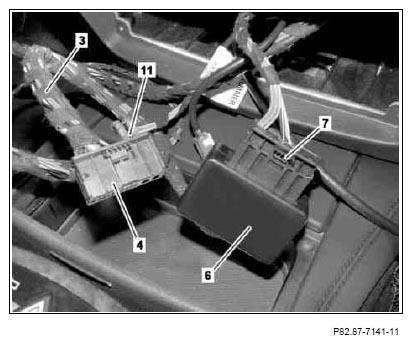

   Fig 4: Identifying 2-Pin Optical Fiber Connector And 20-Pin Connector

   Courtesy of MERCEDES-BENZ USA

   The black 20-pin connector (4) will be connected to the COMMAND controller unit at a later stage. The InCar Internet adapter wiring harness (3) obstructs the installation of the COMMAND controller unit because of its size.

   The COMMAND controller unit is only possible when the InCar Internet adapter wiring harness (3) is located as low down as possible in the rear area.

5. Route black, 32-pin connector (5) of InCar Internet adapter wiring harness (3) into the front passenger footwell.

   The black, 32-pin connector (5) will be connected to the InCar Internet control unit (1) at a later stage.

   Fig 5: Routing Diagram Of Incar Internet Adapter Wiring Harness

   Courtesy of MERCEDES-BENZ USA
6. Route black 2-pin plug connector and black 2-pin connector of speaker branch-off line (3.1) of InCar Internet adapter wiring harness (3), as shown, to the installation location of the center cockpit speaker (centerfill) (H4/27).

   Use a pull-through device.

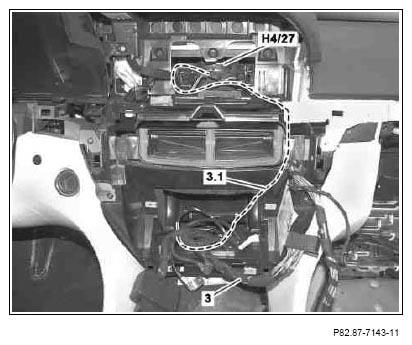

   Fig 6: Routing Diagram Of Speaker Branch-Off Line

   Courtesy of MERCEDES-BENZ USA
7. Detach black 2-pin connector (8) from center cockpit speaker (centerfill) (H4/27).
8. Connect black, 2-pin plug (10) to black 2-pin connector (8) of vehicle wiring harness.
9. Connect black 2-pin connector (9) to center cockpit speaker (centerfill) (H4/27).

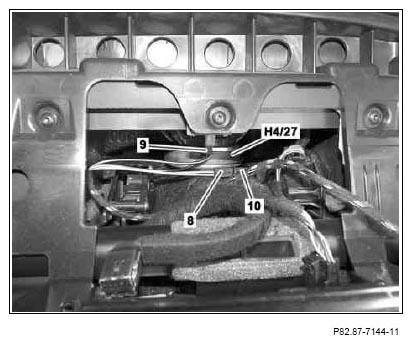

   Fig 7: Identifying Center Cockpit Speaker And 2-Pin And Plug Connector
