Retrofit Mercedes-Benz InCar Internet - AZ82.85-P-0005SC

MODEL 216.3## 1# with CODE (512) COMMAND APS with DVD changer with CODE (527) COMMAND APS with single DVD drive (with navigation) with CODE (528) COMMAND with DVD changer except CODE (460) Canada version except CODE (494) USA version except CODE (498) Japan version except CODE (830) China version

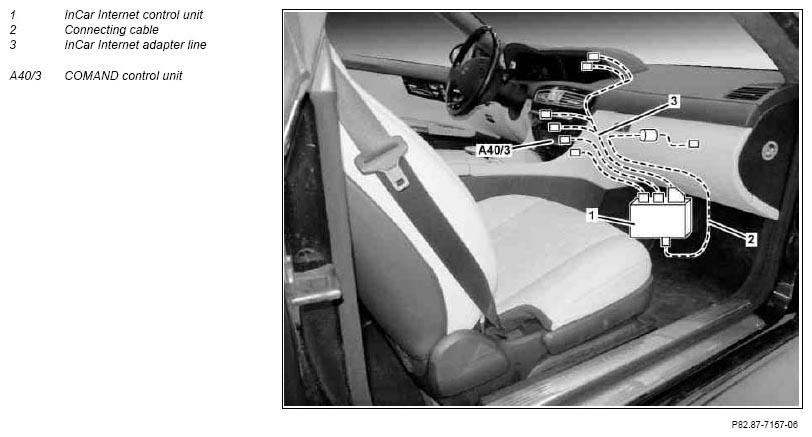

Fig 1: Identifying Incar Internet Control Unit, Connecting Cable, Adapter Line And Command Control Unit

Courtesy of MERCEDES-BENZ USA

	Remove
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Move front passenger seat toward rear
2	Remove glove box		AR68.10-P-1400SX
3	Remove COMMAND controller unit (A40/3)		AR82.85-P-1100SC
4	Remove Audio/COMMAND display		AR82.85-P-7429SX
	Install
5	Retrofit InCar Internet adapter wiring harness		AZ82.85-P-0005-02SX
6	Retrofit low voltage differential signal (LVDS) head unit wiring harness and LVDS display wiring harness		AZ82.85-P-0004-03SX
7	Install Audio/COMMAND display		AR82.85-P-7429SX
8	Retrofit connecting cable (2)	Rechargeable drill / screwdriver	AZ82.85-P-0005-05SC
9	Strap down the electrical connector for the AUX connection previously installed in the glove box to the vehicle wiring harness and wrap felt tape around it	On vehicles without code (518) Media interface
10	Retrofit InCar Internet control unit (1)		AZ82.85-P-0005-04SX
11	Install remaining parts
12	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach "Mercedes-Benz InCar Internet retrofitted as per AZ82.85-P-0005SC " note under field organization texts to DG 82.
13	Perform function check of InCar Internet
