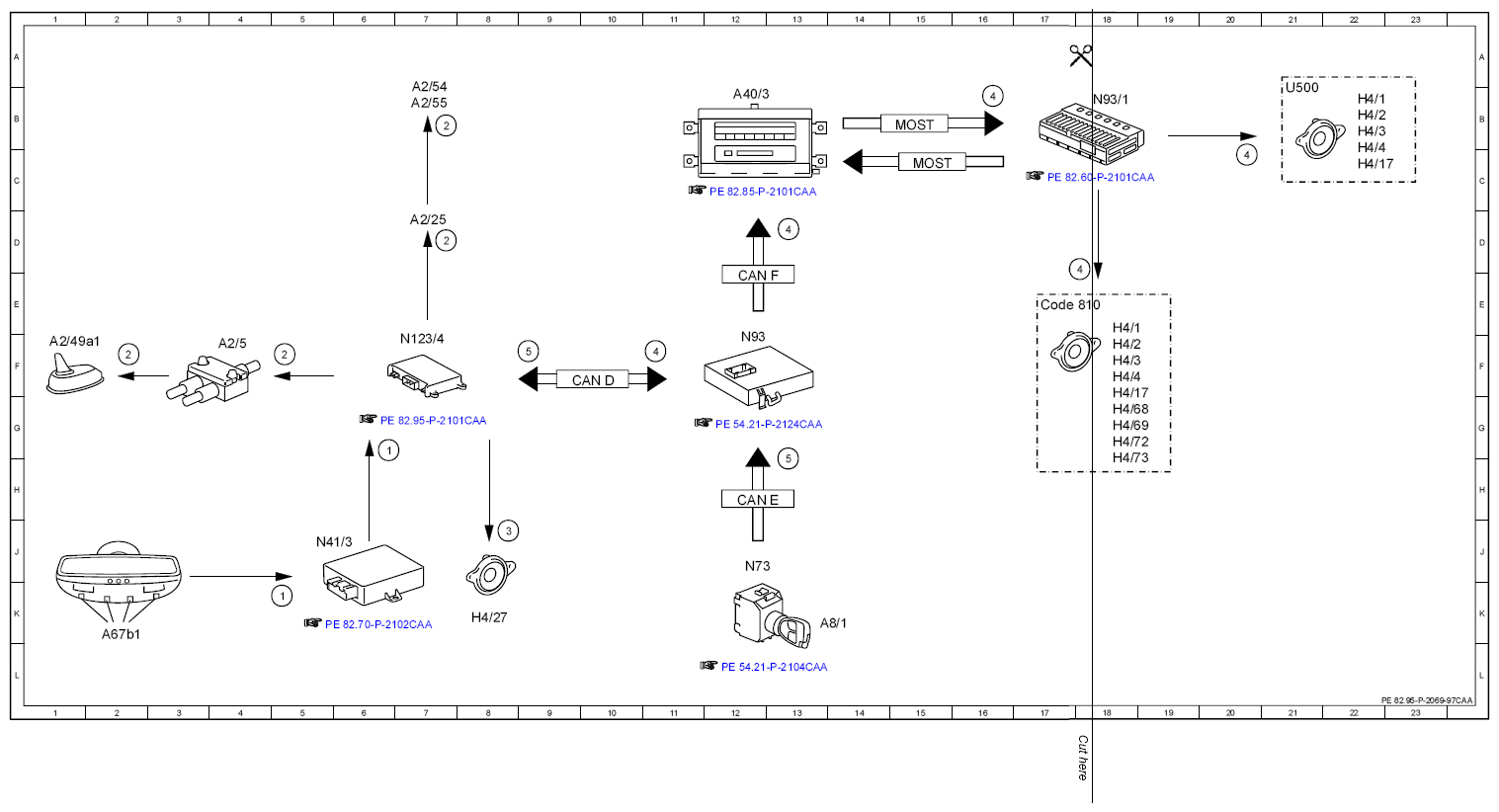

| 1 |
Voice input, signal |
|
| 1 |
Voice input, signal |
|
| 2 |
Telephone, signal |
|
| 2 |
Telephone, signal |
|
| 2 |
Telephone, signal |
|
| 2 |
Telephone, signal |
|
| 3 |
Voice output, signal |
|
| 4 |
Mute, signal |
|
| 4 |
Mute, signal |
|
| 4 |
Mute, signal |
|
| 4 |
Mute, signal |
|
| 4 |
Mute, signal |
|
| 5 |
Circuit 15R/circuit 15, status ON |
|
| 5 |
Circuit 15R/circuit 15, status ON |
|
| A2/25 |
Emergency call system antenna splitter |
|
| A2/49a1 |
Telephone antenna |
|
| A2/5 |
Antenna splitter |
|
| A2/54 |
Emergency call system left backup antenna |
|
| A2/55 |
Emergency call system right backup antenna |
|
| A40/3 |
COMMAND control unit |
|
| A67b1 |
Hands-free system microphone group |
|
| A8/1 |
Transmitter key |
|
| CAN D |
Diagnostic CAN |
|
| CAN E |
Chassis CAN |
|
| CAN F |
Central CAN |
|
| Code 810 |
Sound system |
|
| H4/1 |
Left door speaker group |
|
| H4/1 |
Left door speaker group |
|
| H4/17 |
Bass module speaker |
|
| H4/17 |
Bass module speaker |
|
| H4/2 |
Right door speaker group |
|
| H4/2 |
Right door speaker group |
|
| H4/27 |
Center cockpit speaker (centerfill) |
|
| H4/3 |
Left door rear speaker |
|
| H4/3 |
Left door rear speaker |
|
| H4/4 |
Right door rear speaker |
|
| H4/4 |
Right door rear speaker |
|
| H4/68 |
Left door Sound tweeter |
|
| H4/69 |
Right door Sound tweeter |
|
| H4/72 |
Left door Sound woofer and midrange speaker group |
|
| H4/73 |
Right door Sound woofer and midrange speaker group |
|
| MOST |
Media Oriented System Transport |
|
| MOST |
Media Oriented System Transport |
|
| N123/4 |
Emergency call system control unit |
|
| N41/3 |
Voice control system (VCS [SBS]) control unit |
|
| N73 |
EIS [EZS] control unit |
|
| N93 |
Central gateway control unit |
|
| N93/1 |
Audio tuner control unit |
|
| U500 |
Not valid for Sound System |
|
