| A0 |
Color code key |
56L |
| A2/30 |
Navigation processor |
17L |
| A2/49 |
Telephone and GPS antenna |
26L |
| A2/49a2 |
GPS antenna |
25L |
| A2/5 |
Antenna splitter |
33L |

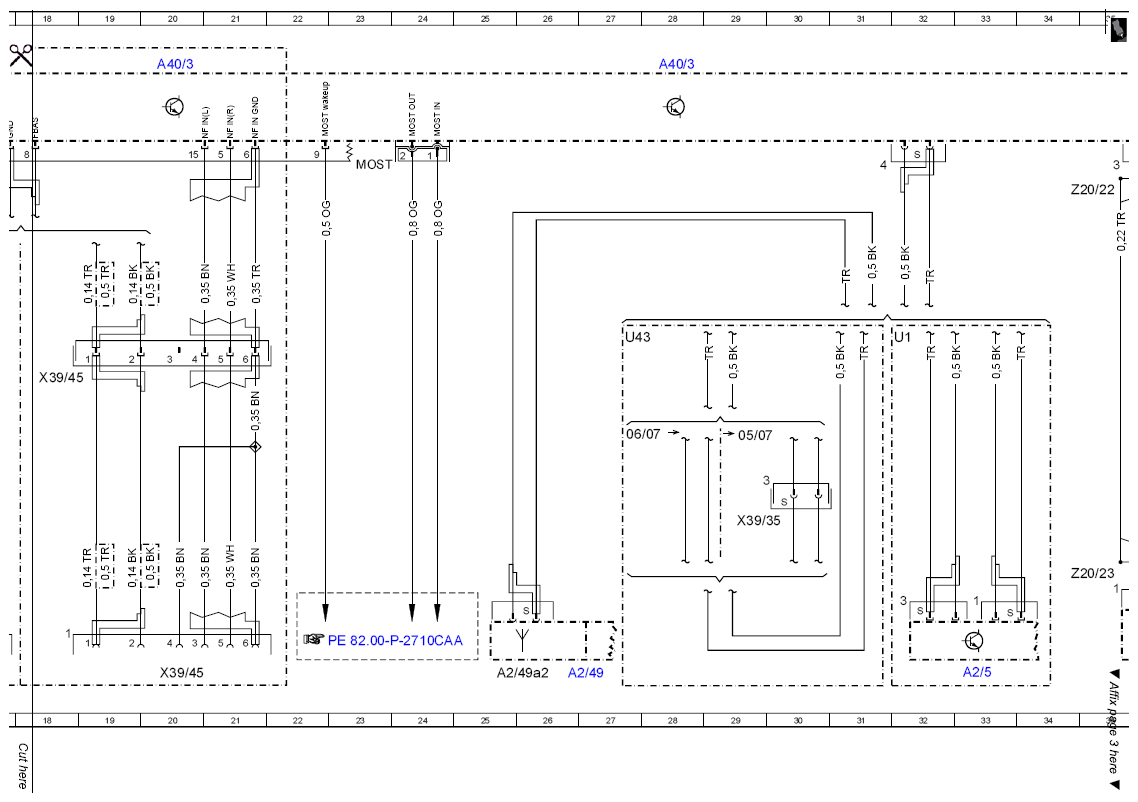

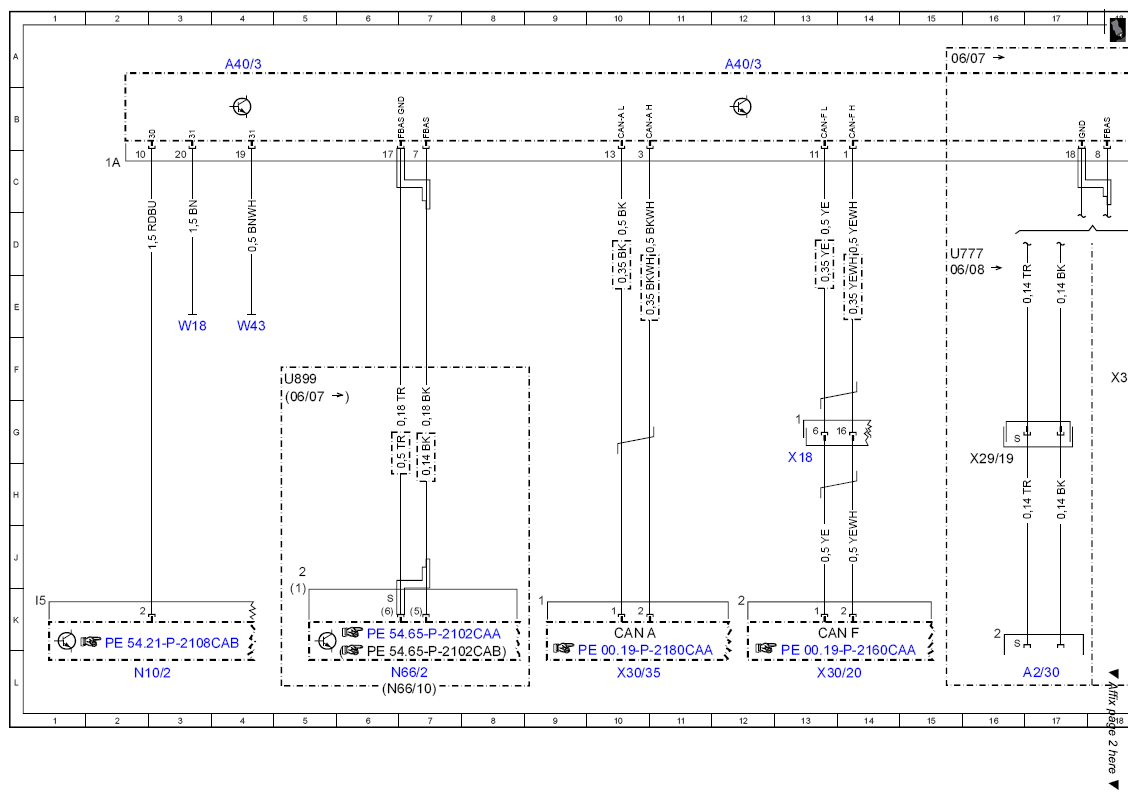

| A40/3 |
COMMAND control unit |
4A |
| A40/3 |
COMMAND control unit |
12A |
| A40/3 |
COMMAND control unit |
20A |
| A40/3 |
COMMAND control unit |
28A |
| A40/3 |
COMMAND control unit |
36A |
| A40/3 |
COMMAND control unit |
44A |
| A40/3 |
COMMAND control unit |
52A |

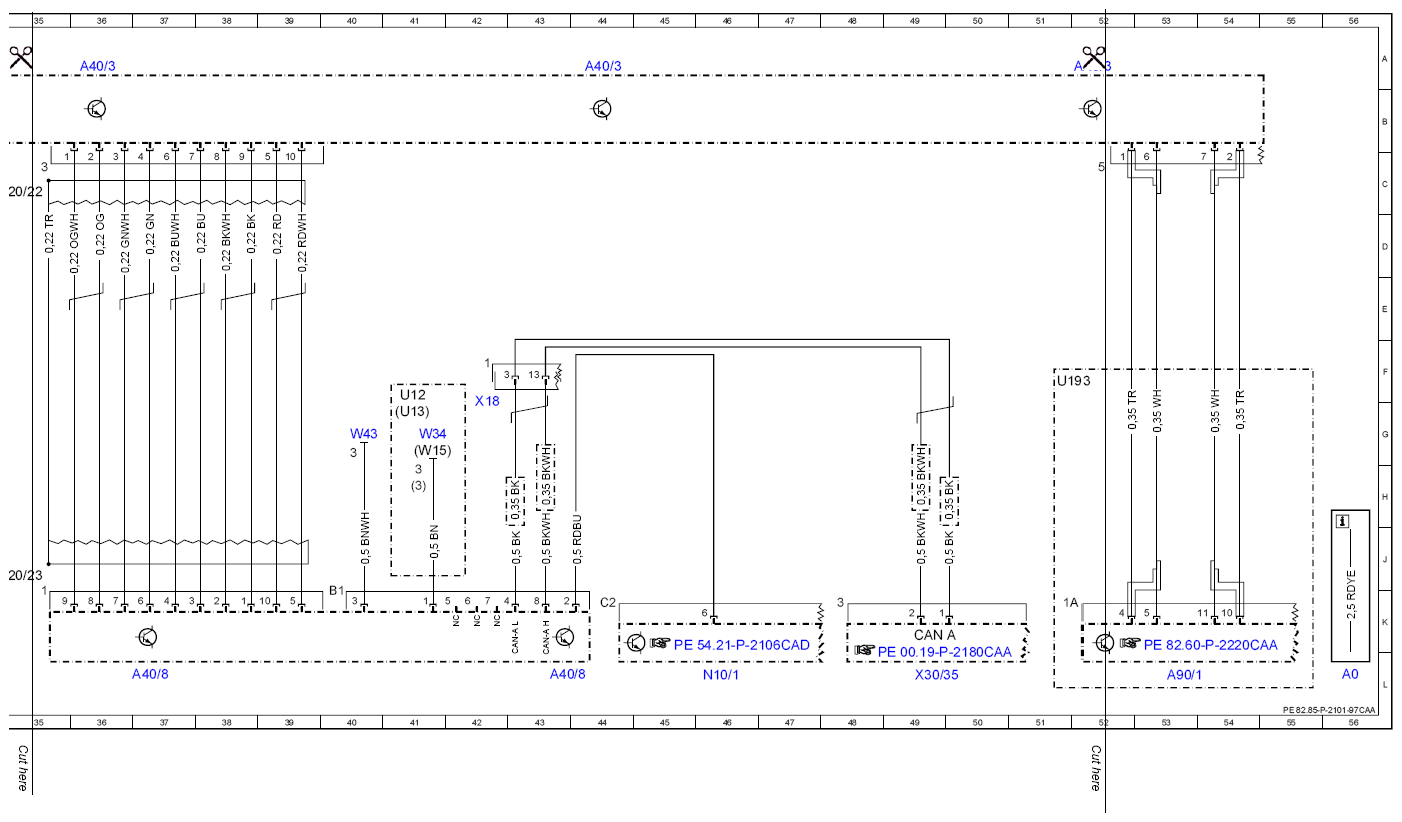

| A40/8 |
COMMAND display |
37L |
| A40/8 |
COMMAND display |
43L |
| A90/1 |
TV combination tuner (analog/digital) |
53L |
| CAN A |
Telematics CAN |
10K |
| CAN A |
Telematics CAN |
49K |
| CAN F |
Central CAN |
13K |
| MOST |
Media Oriented System Transport |
|
| N10/1 |
Front SAM control unit with fuse and relay module |
46L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
2L |
| N66/10 |
Backup camera voltage supply module |
|
| N66/2 |
Backup camera control unit |
7L |
| U1 |
Valid for {{USA}} |
32F |
| U12 |
Valid for left-hand drive vehicles |
41F |
| U13 |
Valid for right-hand drive vehicles |
|
| U193 |
Valid for TV and Video |
51F |
| U43 |
Valid for ECE |
27F |
| U777 |
Valid for navigation |
15D |
| U899 |
Valid for backup camera |
5F |
| W15 |
Power ground (electronics) |
|
| W18 |
Ground (left front seat crossmember) |
3E |
| W34 |
Ground (left footwell) |
41G |
| W43 |
Ground (reference, image transmission systems) |
4E |
| W43 |
Ground (reference, image transmission systems) |
40G |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
13G |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
42G |
| X29/19 |
F-BAS signal connector (Command to navigation/China) |
16H |
| X30/20 |
Central CAN voltage distributor connector |
13L |
| X30/35 |
Telematics CAN voltage distributor connector |
10L |
| X30/35 |
Telematics CAN voltage distributor connector |
49L |
| X39/35 |
GPS antenna connector |
29H |
| X39/45 |
Walkman separation point |
18F |
| X39/45 |
Walkman separation point |
20L |
| Z20/22 |
Cable end insulation not stripped, placed inside insulated tubing |
35C |
| Z20/23 |
Cable end insulation not stripped, placed inside insulated tubing |
35J |
