Accelerator pedal sensor design - GF30.20-P-4010-02M

View of accelerator pedal module

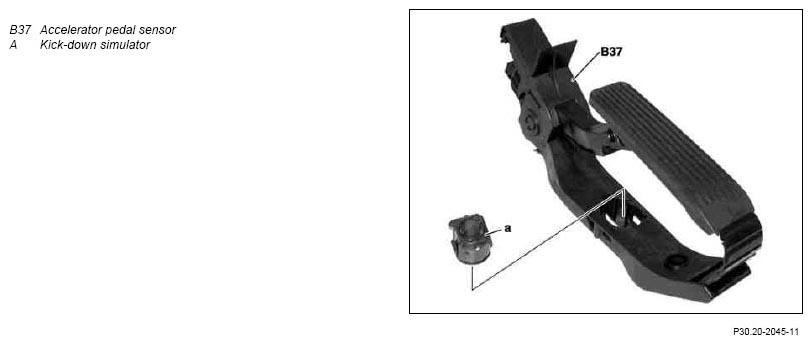

Fig 1: Identifying Accelerator Pedal Sensor And Kick-Down Simulator
G07509466Courtesy of MERCEDES-BENZ USA

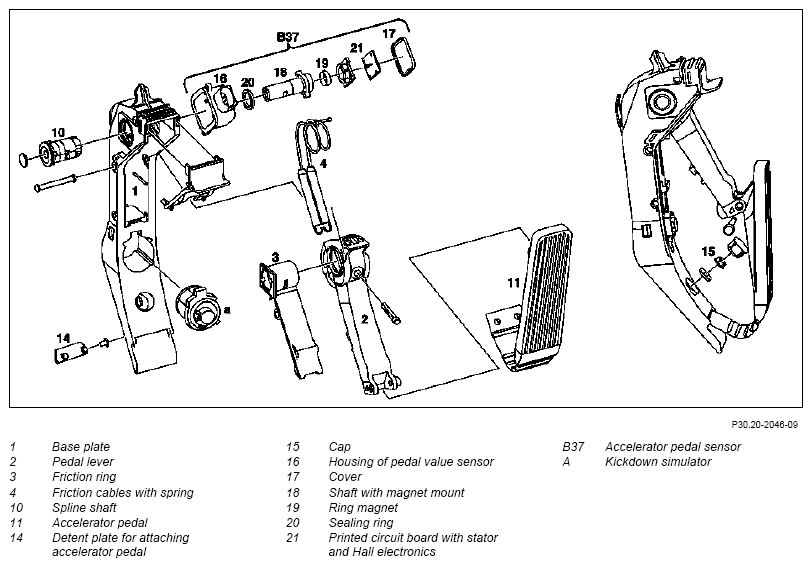

Fig 2: Exploded View Of Accelerator Pedal Sensor
G07509467Courtesy of MERCEDES-BENZ USA

IMPORTANT Replace accelerator pedal module always complete!
