| Code: |
Designation: |
Position: |

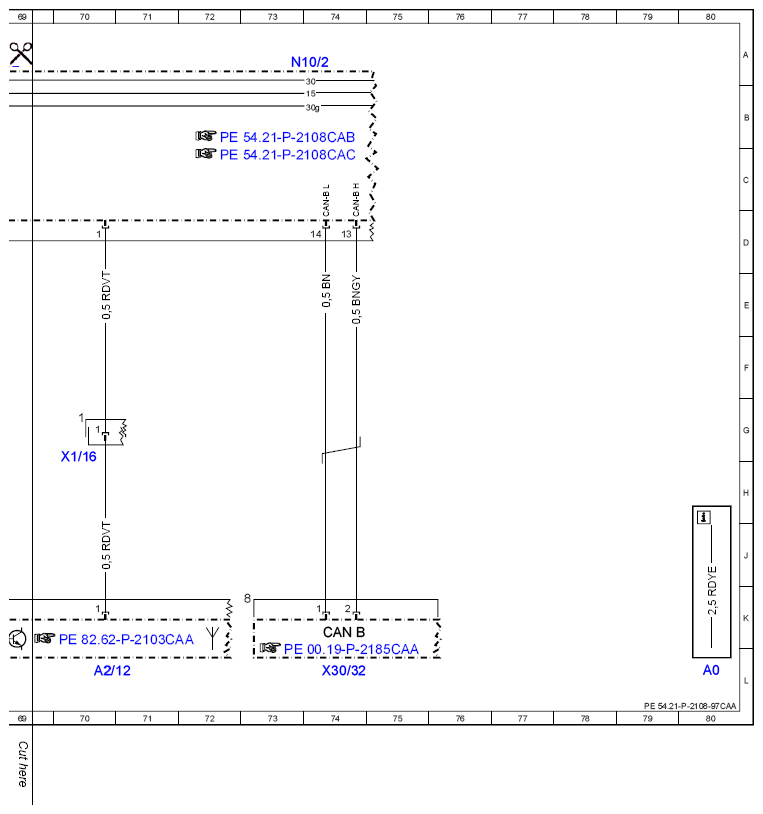

| A0 |
Color code key |
80L |
| A2/12 |
Rear window antenna amplifier module |
70L |

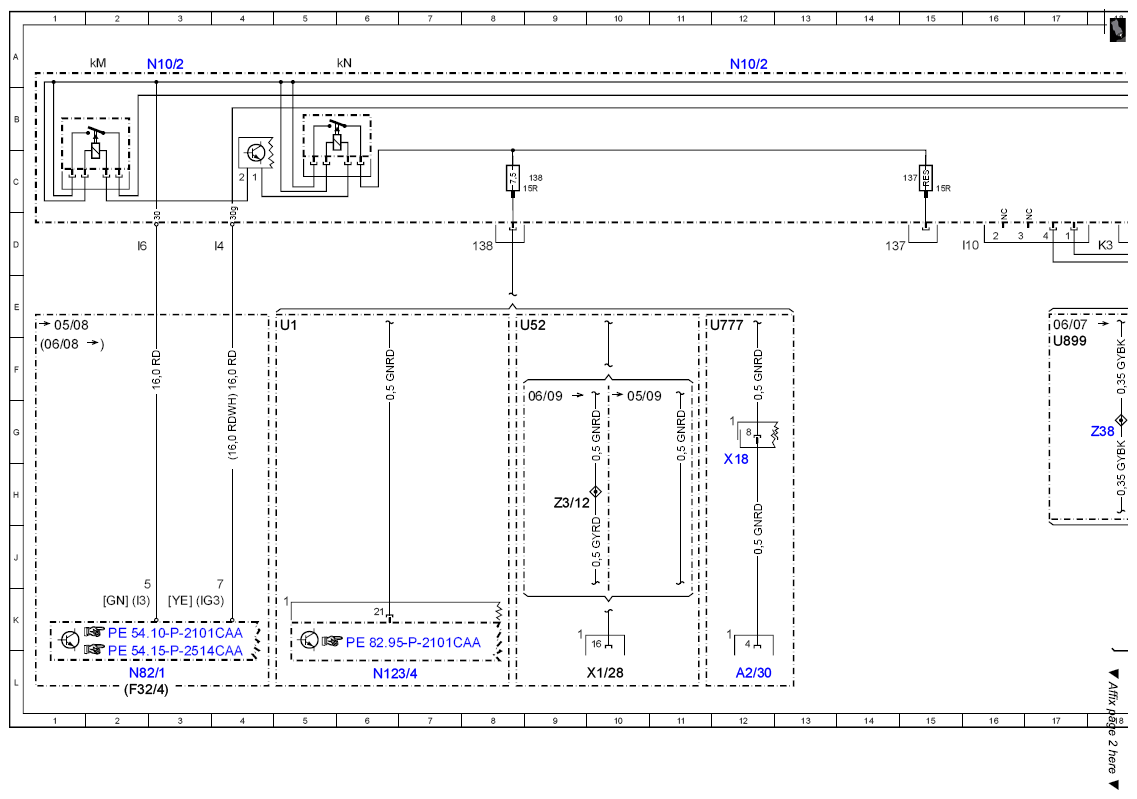

| A2/30 |
Navigation processor |
12L |

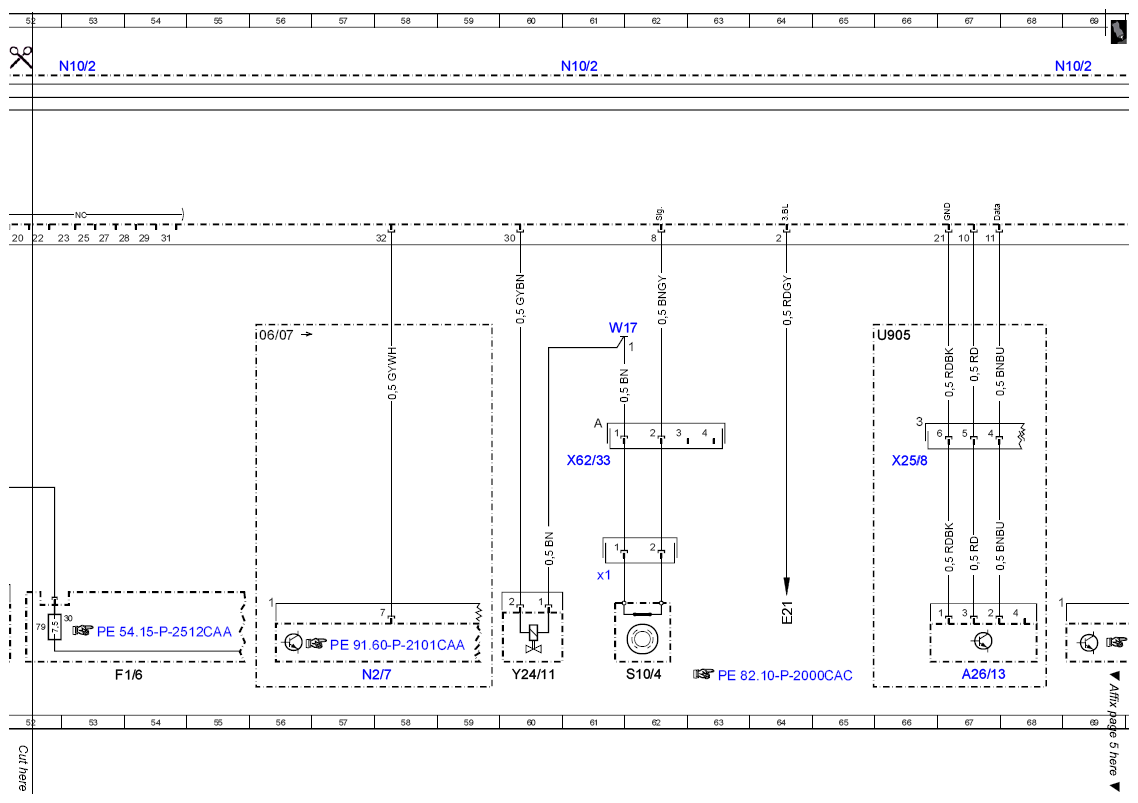

| A26/13 |
Ultrasonic echo sounder sensor |
67L |
| CAN B |
Interior CAN |
74K |

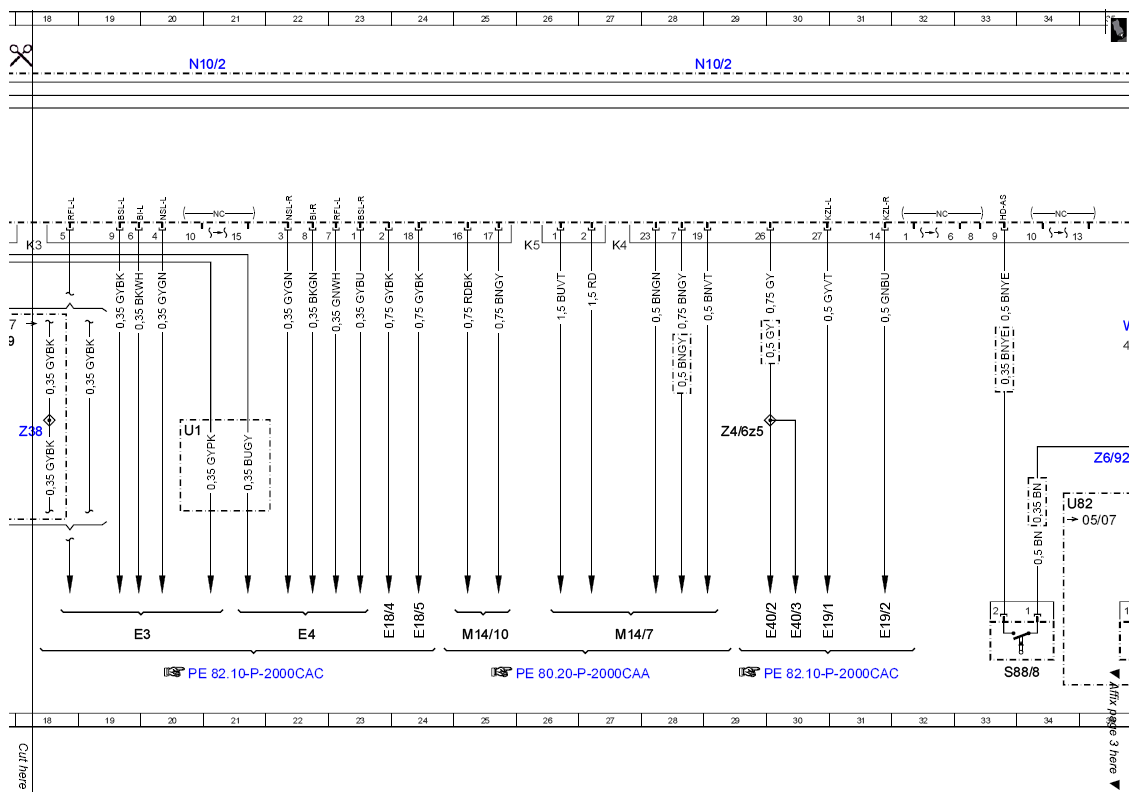

| E18/4 |
Right luggage compartment lamp |
24K |
| E18/5 |
Left luggage compartment lamp |
24K |
| E19/1 |
Left license plate lamp |
31K |
| E19/2 |
Right license plate lamp |
31K |
| E21 |
Center high-mounted stop lamp |
64K |
| E3 |
Left taillamp |
19K |
| E4 |
Right taillamp |
22K |
| E40/2 |
Left trunk lid ambient and warning lamp |
30K |
| E40/3 |
Right trunk lid ambient and warning lamp |
30K |
| F1/6 |
Right instrument panel fuse box |
54L |
| F1/6f79 |
Fuse 79 |
52K |
| F32/4 |
Interior prefuse box |
2L |

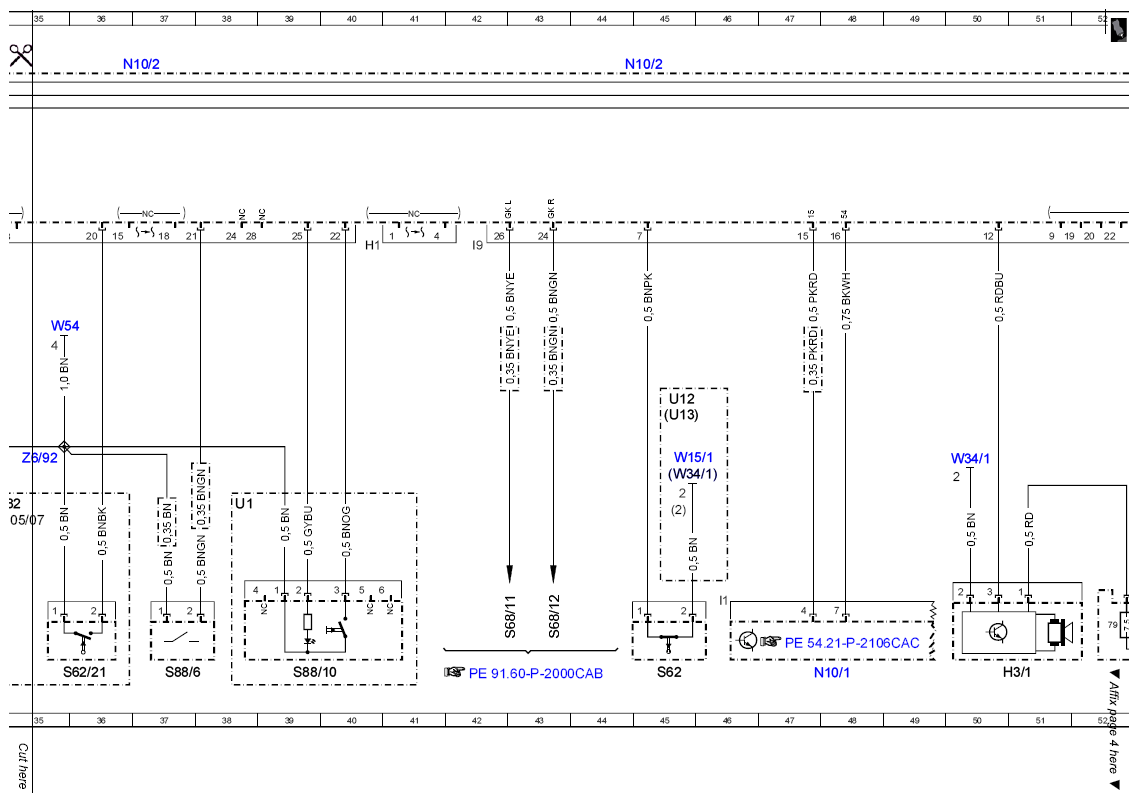

| H3/1 |
Alarm signal siren |
51L |
| M14/10 |
Fuel filler flap CL [ZV] motor |
25K |
| M14/7 |
Trunk lid CL [ZV] motor |
27K |
| N10/1 |
Front SAM control unit with fuse and relay module |
48L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
20A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
29A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
37A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
45A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
61A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
69A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
73A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
53A |
| N10/2f137 |
Fuse 137 |
15C |
| N10/2f138 |
Fuse 138 |
9C |
| N10/2kM |
Circuit 15 (2)/spare 1 relay (changeover contact) |
2A |
| N10/2kN |
Circuit 15R relay |
6A |
| N123/4 |
Emergency call system control unit |
6L |
| N2/7 |
Restraint systems control unit |
57L |
| N82/1 |
Vehicle power supply control unit |
2L |
| S10/4 |
Right rear brake pad contact sensor |
62L |
| S10/4x1 |
Right rear brake pad contact sensor connector |
61J |
| S62 |
ATA [EDW] hood switch |
45L |
| S62/21 |
Trunk lid KEYLESS-GO button |
36L |
| S68/11 |
Left rear seat belt buckle switch |
43K |
| S68/12 |
Right rear seat belt buckle switch |
43K |
| S88/10 |
Trunk lid emergency release switch |
39L |
| S88/6 |
Trunk lid contact switch |
37L |
| S88/8 |
Trunk lid external operation switch |
33L |
| U1 |
Valid for {{USA}} |
5E |
| U1 |
Valid for {{USA}} |
20G |
| U1 |
Valid for {{USA}} |
38H |
| U12 |
Valid for left-hand drive vehicles |
45G |
| U13 |
Valid for right-hand drive vehicles |
45G |
| U52 |
Valid for {{Japan}} |
8E |
| U777 |
Valid for navigation |
11E |
| U82 |
Valid for KEYLESS GO |
34H |
| U899 |
Valid for backup camera |
17F |
| U905 |
Valid for interior protection |
66E |
| W15/1 |
Ground (right footwell) |
45G |
| W17 |
Ground (right rear seat) |
61E |
| W34/1 |
Ground (electronics - left footwell) |
50H |
| W34/1 |
Ground (electronics - left footwell) |
45H |
| W54 |
Ground (right rear wheelhouse) |
35E |
| X1/16 |
Roof antenna connector |
70H |
| X1/28 |
TV/tuner connector |
10L |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
12H |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
66H |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
74L |
| X62/33 |
Right rear axle multiple circuit junction connector |
61G |
| Y24/11 |
Rear head restraints valve block |
60L |
| Z3/12 |
Circuit 15R connector sleeve |
9H |
| Z38 |
Backup lamp connector sleeve |
18G |
| Z4/6z5 |
Luggage compartment lamp circuit 30 connector sleeve |
29G |
| Z6/92 |
Trunk lid ground connector sleeve |
35G |
