| Code: |
Designation: |
Position: |

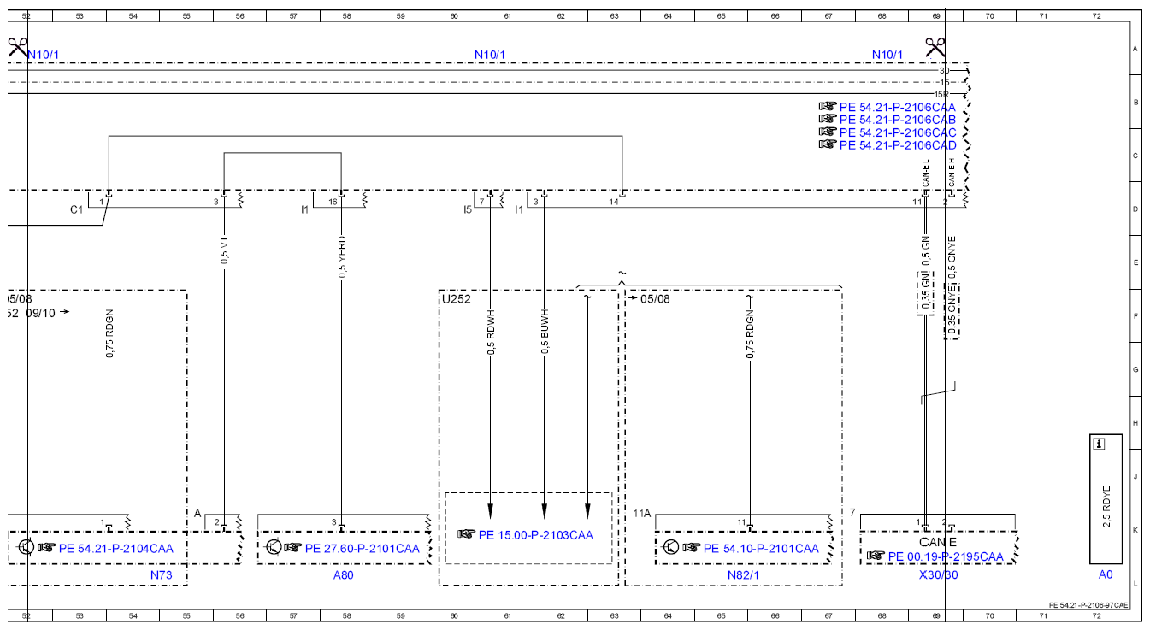

| A0 |
Color code key |
72L |
| A80 |
Intelligent servo module for DIRECT SELECT |
58L |

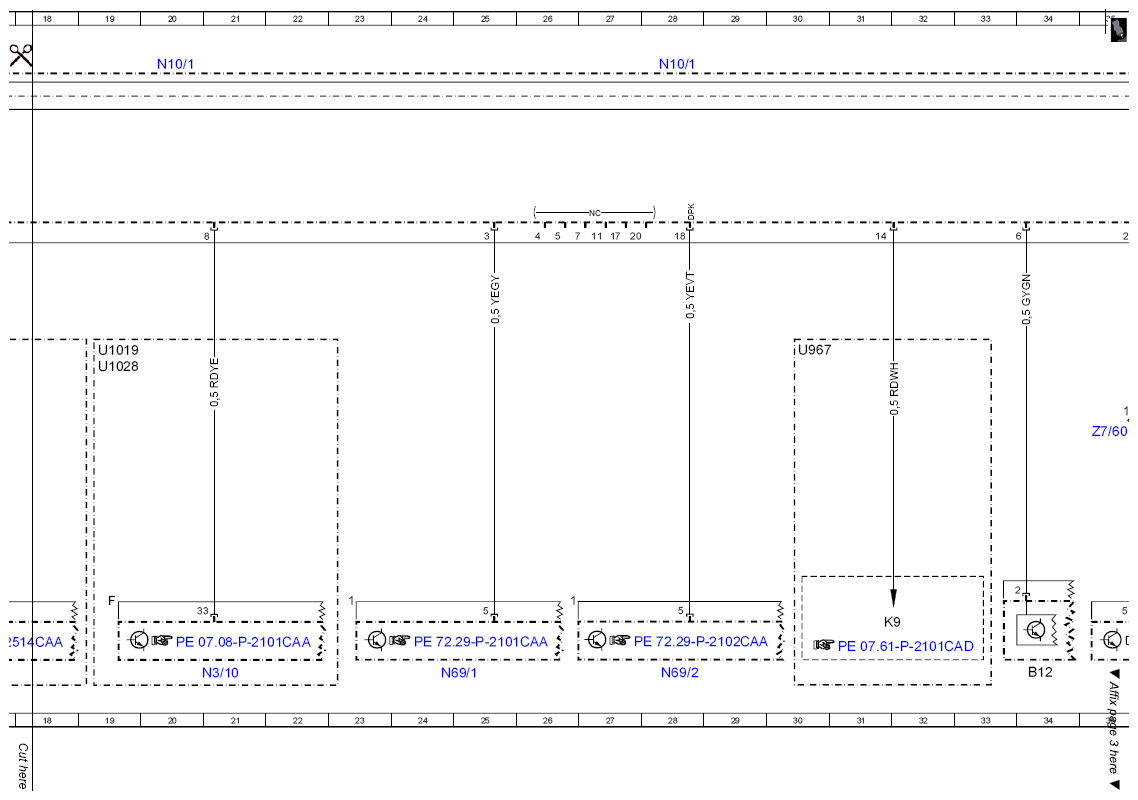

| B12 |
Refrigerant pressure sensor |
34L |
| CAN B |
Interior CAN |
43K |
| CAN E |
Chassis CAN |
69K |

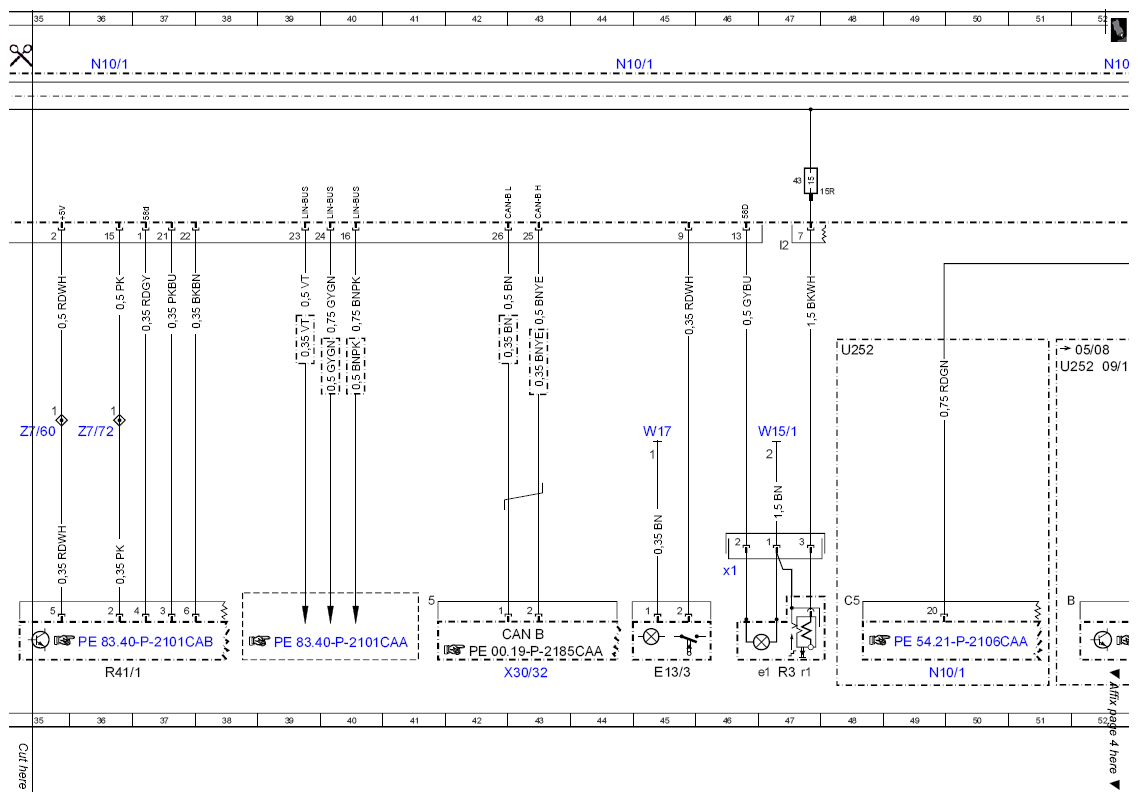

| E13/3 |
Stowage compartment illumination |
45L |

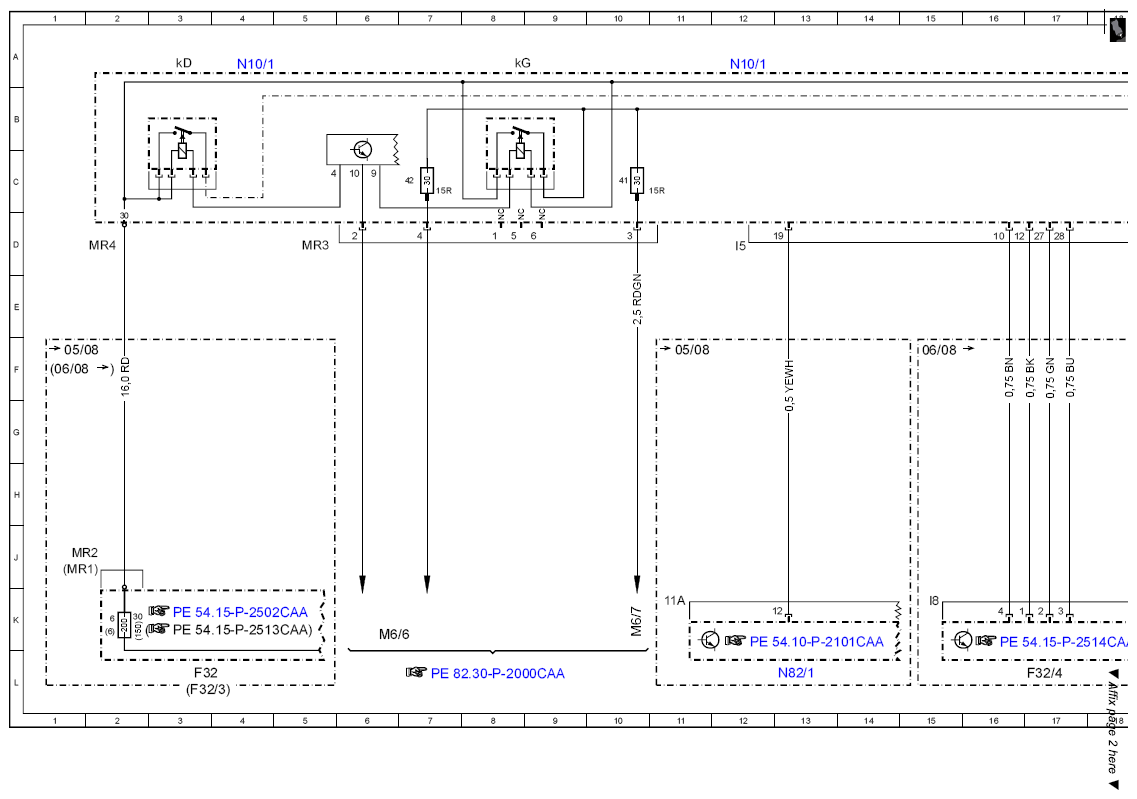

| F32 |
Front prefuse |
3L |
| F32/3 |
Engine compartment prefuse box |
|
| F32/3f6 |
Fuse 6 |
|
| F32/4 |
Interior prefuse box |
17L |
| F32f6 |
Fuse 6 |
2K |
| K9 |
Additional fan relay |
31K |
| M6/6 |
Master wiper motor |
6K |
| M6/7 |
Slave wiper motor |
10K |
| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
20A |
| N10/1 |
Front SAM control unit with fuse and relay module |
28A |
| N10/1 |
Front SAM control unit with fuse and relay module |
36A |
| N10/1 |
Front SAM control unit with fuse and relay module |
49L |
| N10/1 |
Front SAM control unit with fuse and relay module |
44A |
| N10/1 |
Front SAM control unit with fuse and relay module |
52A |
| N10/1 |
Front SAM control unit with fuse and relay module |
61A |
| N10/1 |
Front SAM control unit with fuse and relay module |
68A |
| N10/1f41 |
Fuse 41 |
10C |
| N10/1f42 |
Fuse 42 |
7C |
| N10/1f43 |
Fuse 43 |
47C |
| N10/1kD |
Circuit 15 relay |
3A |
| N10/1kG |
Circuit 15R relay |
8A |
| N3/10 |
ME-SFI [ME] control unit |
21L |
| N69/1 |
Left door control unit |
24L |
| N69/2 |
Right door control unit |
28L |
| N73 |
EIS [EZS] control unit |
54L |
| N82/1 |
Vehicle power supply control unit |
13L |
| N82/1 |
Vehicle power supply control unit |
65L |
| R3 |
Front cigar lighter (with ashtray illumination) |
47L |
| R3e1 |
Illumination |
47L |
| R3r1 |
Heating element |
47L |
| R3x1 |
Front cigar lighter connector |
46J |
| R41/1 |
Left side air outlet potentiometer |
36L |
| U1019 |
Valid for engine 278 |
19F |
| U1028 |
19F |
|
| U252 |
Valid for ECO start/stop function |
48F |
| U252 |
Valid for ECO start/stop function |
51F |
| U252 |
Valid for ECO start/stop function |
60F |
| U967 |
Valid for engine 275.982 |
30F |
| W15/1 |
Ground (right footwell) |
47G |
| W17 |
Ground (right rear seat) |
45G |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
69L |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
43L |
| Z7/60 |
5V output connector sleeve (solder connector in wiring harness) |
35G |
| Z7/72 |
COC nozzles and sensors sensor ground connector sleeve |
36G |
