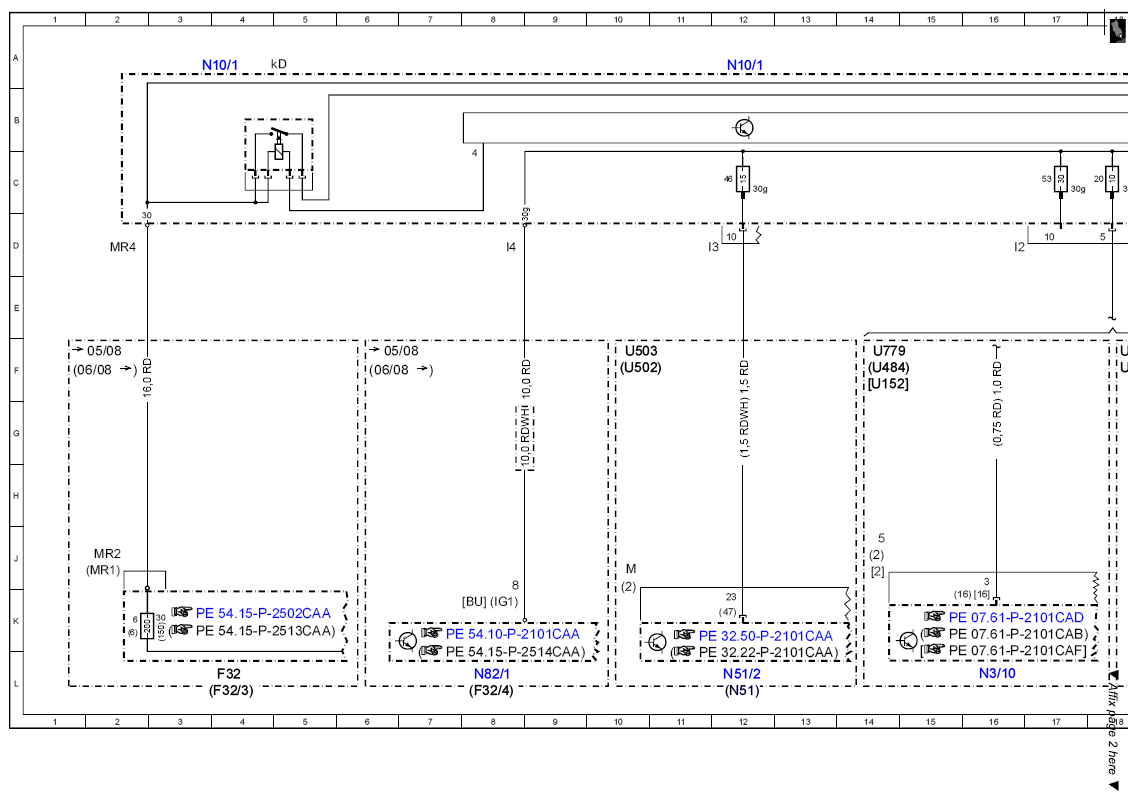

| Code: |
Designation: |
Position: |
| A0 |
Color code key |
80L |
| A1 |
Instrument cluster |
42L |
| A32 |
AC air recirculation unit |
46L |
| A40/8 |
COMMAND display |
28L |
| A40/8 |
COMMAND display |
28L |
| A40/8 |
COMMAND display |
24L |
| CAN E |
Chassis CAN |
35K |
| E1 |
Left front lamp unit |
51K |
| E1 |
Left front lamp unit |
67L |
| E1/3 |
Left daytime running lamps headlamp |
49K |

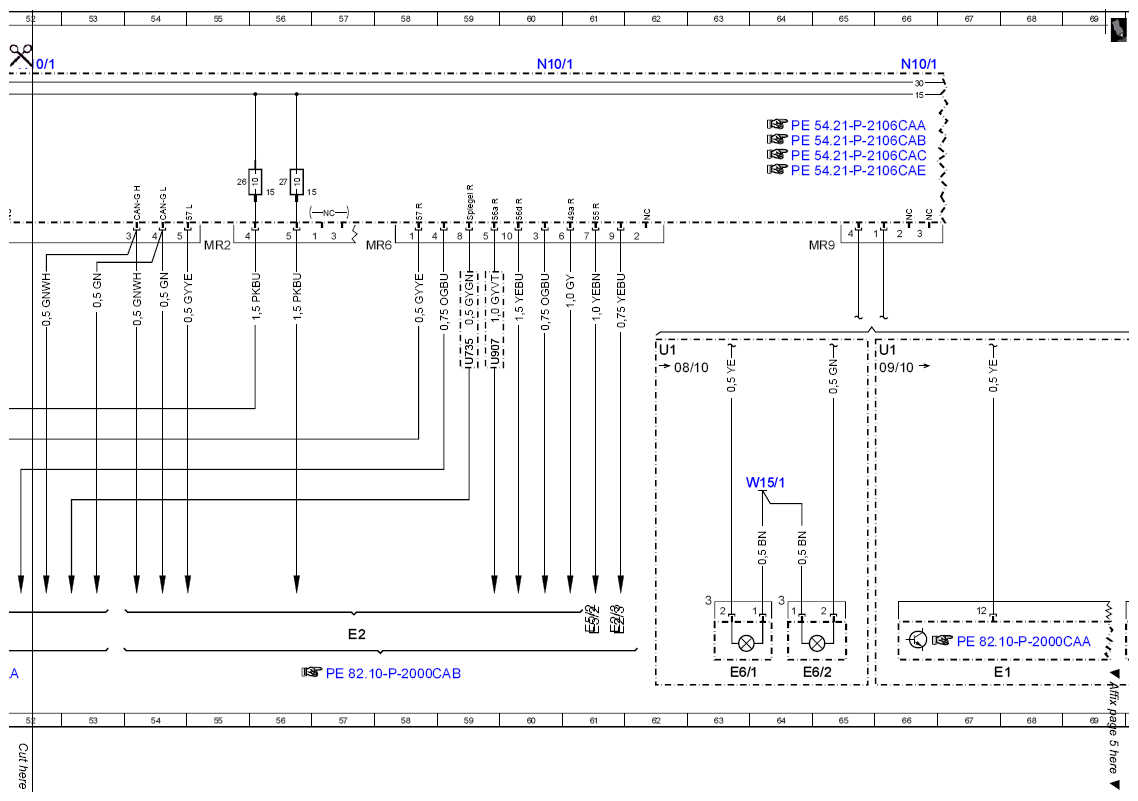

| E2 |
Right front lamp unit |
57K |
| E2 |
Right front lamp unit |
71L |
| E2/3 |
Right daytime running lamps headlamp |
61K |
| E5/1 |
Left front fog lamp |
49K |
| E5/2 |
Right fog lamp |
61K |
| E6/1 |
Left front side marker lamp {{USA}} |
63L |
| E6/2 |
Right front side-marker lamp {{USA}} |
64L |
| F32 |
Front prefuse |
4L |
| F32/3 |
Engine compartment prefuse box |
4L |
| F32/3f6 |
Fuse 6 |
2K |
| F32/4 |
Interior prefuse box |
8L |
| F32f6 |
Fuse 6 |
2K |
| N10/1 |
Front SAM control unit with fuse and relay module |
3A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
28A |
| N10/1 |
Front SAM control unit with fuse and relay module |
20A |
| N10/1 |
Front SAM control unit with fuse and relay module |
36A |
| N10/1 |
Front SAM control unit with fuse and relay module |
66A |
| N10/1 |
Front SAM control unit with fuse and relay module |
44A |
| N10/1 |
Front SAM control unit with fuse and relay module |
52A |
| N10/1 |
Front SAM control unit with fuse and relay module |
60A |
| N10/1f20 |
Fuse 20 |
18C |
| N10/1f25 |
Fuse 25 |
42C |
| N10/1f26 |
Fuse 26 |
55C |
| N10/1f27 |
Fuse 27 |
56C |
| N10/1f36 |
Fuse 36 |
43C |
| N10/1f46 |
Fuse 46 |
12C |
| N10/1f47 |
Fuse 47 |
20C |
| N10/1f48 |
Fuse 48 |
21C |
| N10/1f49 |
Fuse 49 |
32C |
| N10/1f50 |
Fuse 50 |
38C |
| N10/1f51 |
Fuse 51 |
26C |
| N10/1f53 |
Fuse 53 |
17C |
| N10/1f54 |
Fuse 54 |
46C |
| N10/1kD |
Circuit 15 (2)/spare 1 relay (changeover contact) |
5A |

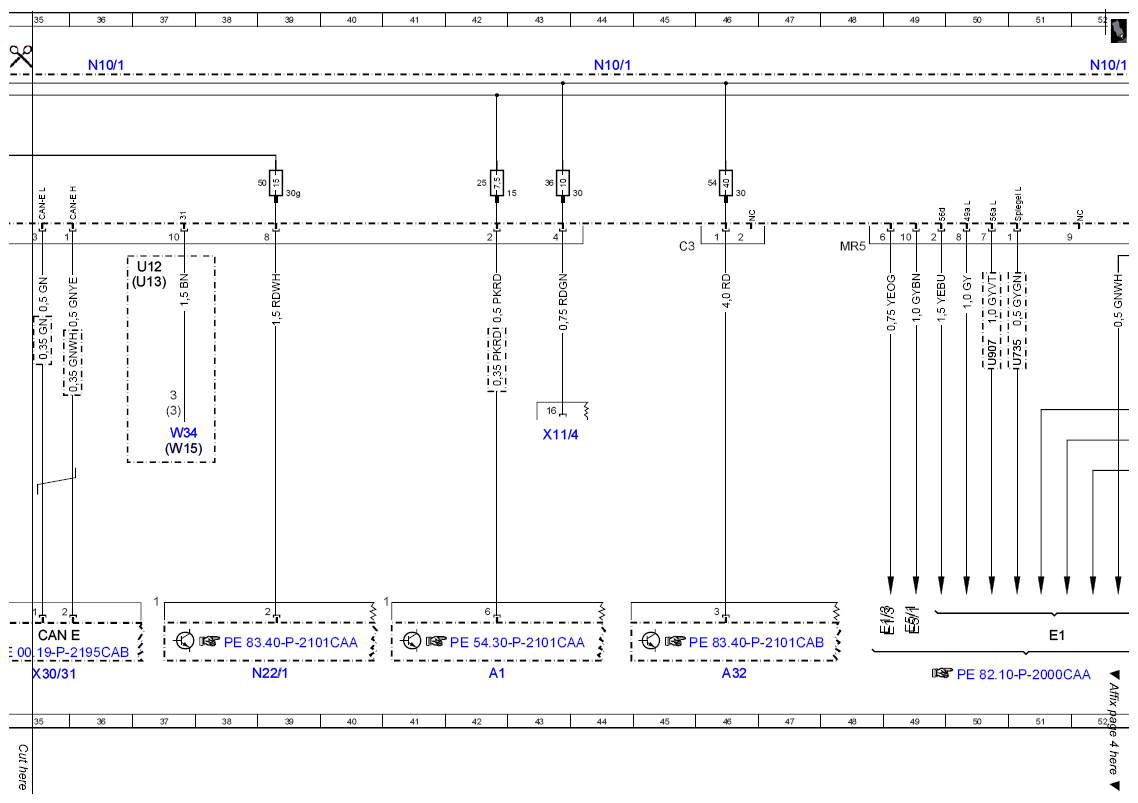

| N22/1 |
AAC [KLA] control unit |
39L |

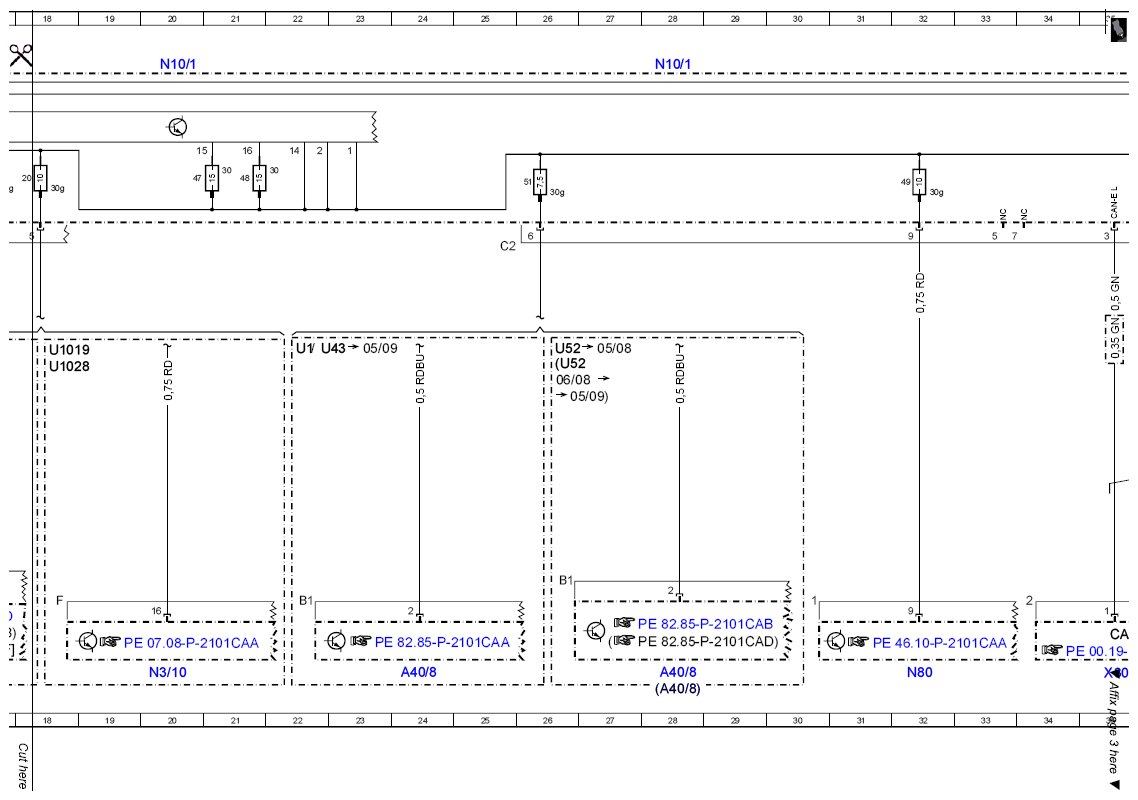

| N3/10 |
ME-SFI [ME] control unit |
20L |
| N3/10 |
ME-SFI [ME] control unit |
16L |
| N51 |
AIRMATIC with ADS control unit |
12L |
| N51/2 |
ABC control unit |
12L |
| N80 |
Steering column module |
32L |
| N82/1 |
Vehicle power supply control unit |
8L |
| U1 |
Valid for {{USA}} |
22F |
| U1 |
Valid for {{USA}} |
62F |
| U1 |
Valid for {{USA}} |
66F |
| U1019 |
Valid for engine 278 |
18F |
| U1028 |
Valid for engine 157 |
18F |
| U12 |
Valid for left-hand drive vehicles |
37D |
| U13 |
Valid for right-hand drive vehicles |
36E |
| U152 |
Valid for engine 156 |
14F |
| U43 |
Valid for ECE |
22F |
| U484 |
Valid for M273 ME |
14F |
| U502 |
Valid for AIRMATIC |
10F |
| U503 |
Valid for ABC |
10F |
| U52 |
Valid for {{Japan}} |
26F |
| U52 |
Valid for {{Japan}} |
26F |
| U735 |
Valid for bi-xenon |
51F |
| U735 |
Valid for bi-xenon |
59F |
| U779 |
Valid for engine 275 |
14F |
| U907 |
Valid for night view assist |
50F |
| U907 |
Valid for night view assist |
59F |
| W15 |
Power ground (electronics) |
37G |
| W15/1 |
Ground (right footwell) |
64H |
| W34 |
Ground (left footwell) |
37G |
| X11/4 |
Data link connector |
43G |
| X30/31 |
Chassis CAN/cockpit voltage distributor connector |
35L |
