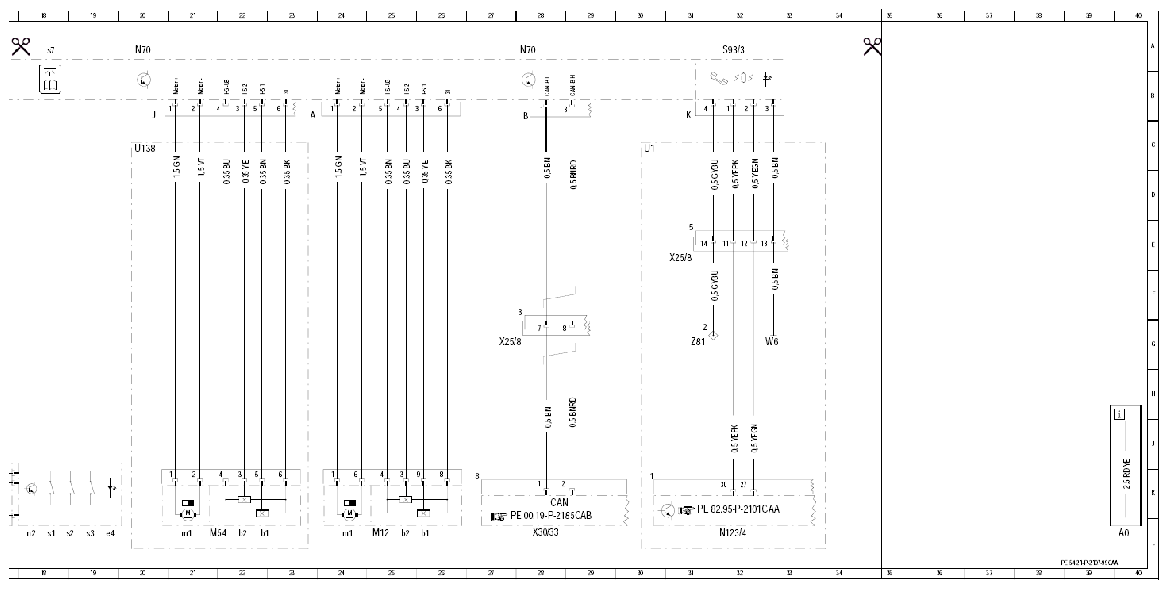

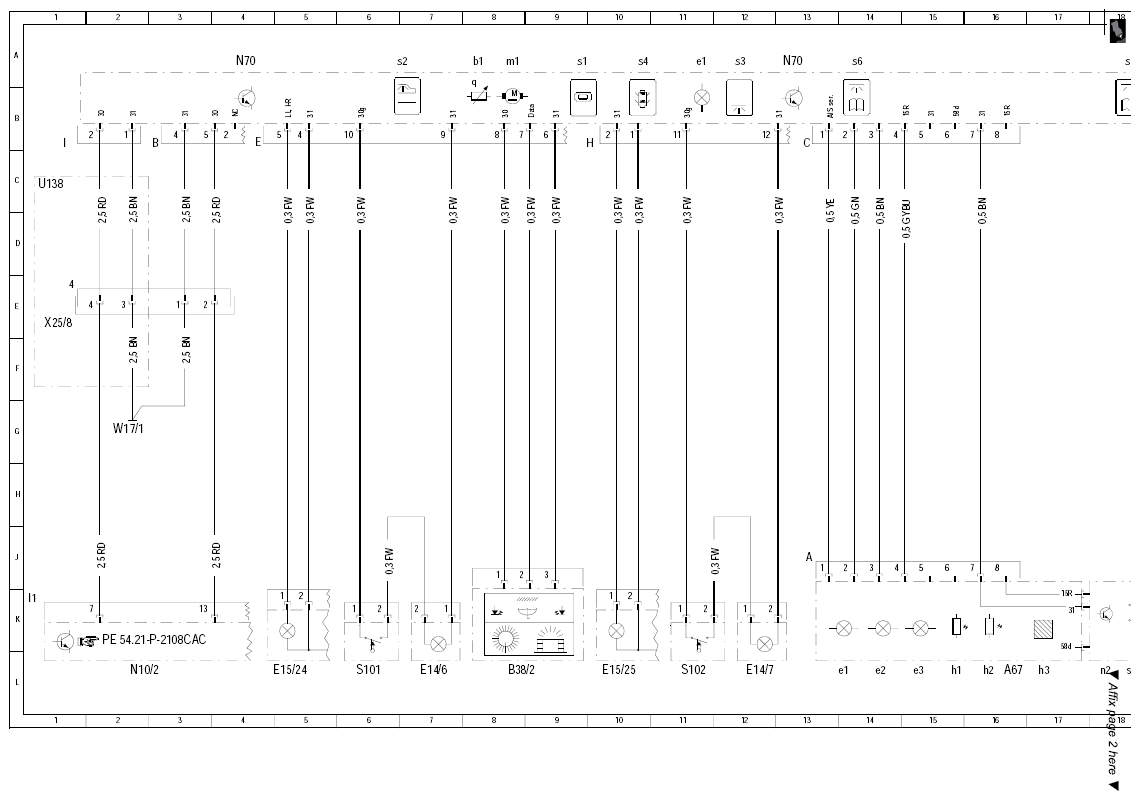

| Code: |
Designation: |
Position: |
| A0 |
Explanation of color codes |
40 L |
| A67 |
Interior rearview mirror unit |
16 L |
| A67e1 |
Left reading lamp |
13 L |
| A67e2 |
Right reading lamp |
14 L |
| A67e3 |
Ambient lamp |
14 L |
| A67e4 |
Garage door opener indicator lamp |
19 L |
| A67h1 |
Automatic dimming interior rearview mirror sensor, forward |
15 L |
| A67h2 |
Automatic dimming interior rearview mirror sensor, back |
16 L |
| A67h3 |
Automatic dimming mirror |
16 L |
| A67n2 |
Garage door opener transmitter unit (-A67n2-) |
17 L |
| A67s1 |
Garage door opener push button 1 |
18 L |
| A67s2 |
Garage door opener push button 2 |
18 L |
| A67s3 |
Garage door opener push button 3 |
19 L |
| B38/2 |
Rain/light sensor |
8 L |
| E14/6 |
Left front vanity mirror illumination |
7 L |
| E14/7 |
Right front vanity mirror illumination |
12 L |
| E15/24 |
Left coat hook lamp |
4 L |
| E15/25 |
Right coat hook lamp |
10 L |
| M12 |
Roof drive system |
25 L |
| M12b1 |
Roof system Hall sensor 1 |
25 L |
| M12b2 |
Roof system Hall sensor 2 |
25 L |
| M12m1 |
Roof motor |
24 L |
| M54 |
Front roller sun blind motor |
21 L |
| M54b1 |
Front roller sun blind Hall sensor 1 |
22 L |
| M54b2 |
Front roller sun blind Hall sensor 2 |
22 L |
| M54m1 |
Front roller sun blind motor |
20 L |
| N10/2 |
Rear SAM control module with fuse and relay module |
2 L |
| N123/4 |
Emergency call system control unit |
32 L |
| N70 |
Overhead control panel control module |
4 A |
| N70 |
Overhead control panel control module |
13 A |
| N70 |
Overhead control panel control module |
20 A |
| N70 |
Overhead control panel control module |
28 A |
| N70b1 |
In-car temperature sensor |
7 A |
| N70e1 |
Front dome lamp |
11 A |
| N70m1 |
In-car temperature sensor fan motor |
8 A |
| N70s1 |
Roof switch |
9 A |
| N70s2 |
Coat hook lamps switch |
6 A |
| N70s3 |
Door contact ON and OFF switch |
12 A |
| N70s4 |
Front dome lamp switch |
10 A |
| N70s6 |
Left front reading lamp switch |
14 A |
| N70s7 |
Right front reading lamp switch |
18 A |
| S101 |
Left front vanity mirror illumination switch |
6 L |
| S102 |
Right front vanity mirror illumination switch |
11 L |
| S93/3 |
SOS push button switch |
32 A |
| U1 |
Valid for {{USA}} |
30 C |
| U138 |
Valid for front roller sun blind |
1 C |
| U138 |
Valid for front roller sun blind |
20 C |
| W17/1 |
Ground (left rear seat) |
2 G |
| W6 |
Ground (left wheelhousing in trunk) |
32 G |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
1 E |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
27 G |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
31 E |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
28 L |
| Z81 |
Circuit 58d connector sleeve |
31 G |
