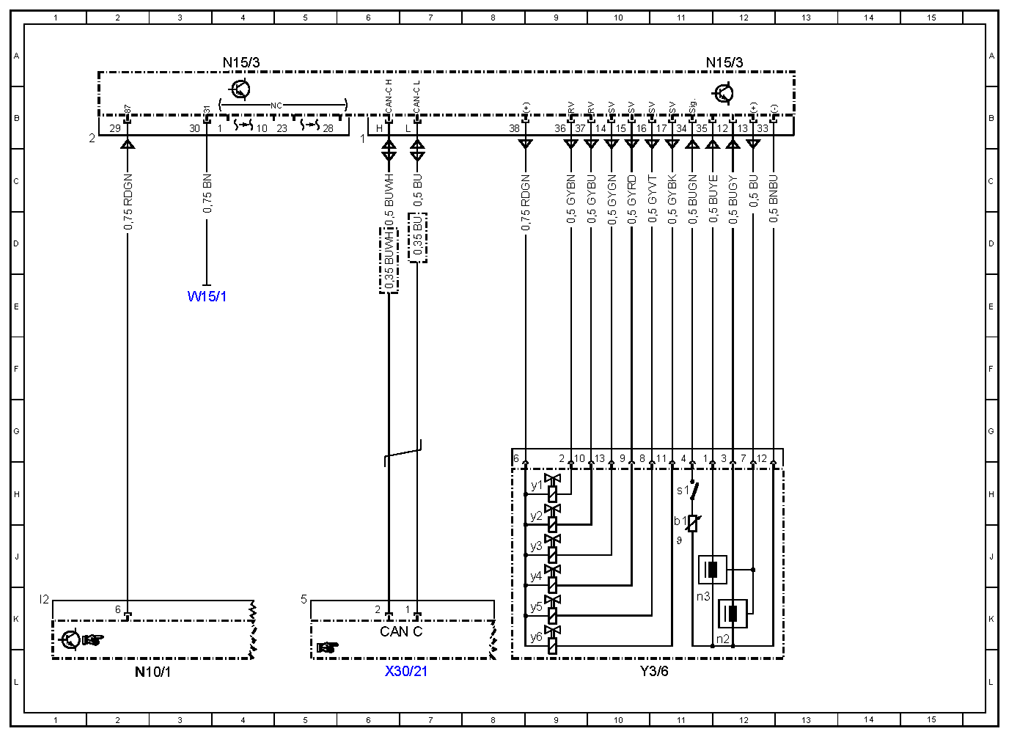

| CAN C |
Drive train CAN |
6K |
| N10/1 |
Front SAM control unit with fuse and relay module |
2L |
| N15/3 |
ETC [EGS] control unit |
4A |
| N15/3 |
ETC [EGS] control unit |
12A |
| W15/1 |
Ground (right footwell) |
3E |
| X30/21 |
Drive train CAN voltage distributor connector |
6L |
| Y3/6 |
Electric control unit |
10L |
| Y3/6b1 |
Transmission oil temperature sensor |
11H |
| Y3/6n2 |
RPM sensor 2 |
12K |
| Y3/6n3 |
RPM sensor 3 |
11K |
| Y3/6s1 |
Starter lockout contact |
11H |
| Y3/6y1 |
Modulating pressure control solenoid valve |
9H |
| Y3/6y2 |
Shift pressure control solenoid valve |
9H |
| Y3/6y3 |
1-2 and 4-5 shift solenoid valve |
9J |
| Y3/6y4 |
3-4 shift solenoid valve |
9J |
| Y3/6y5 |
2-3 shift solenoid valve |
9K |
| Y3/6y6 |
Torque converter lockup PWM solenoid valve |
9K |
