Carry out distance and comparison measurements on front and rear axles - AR40.30-P-0402SX

MODEL 216, 221.0/1

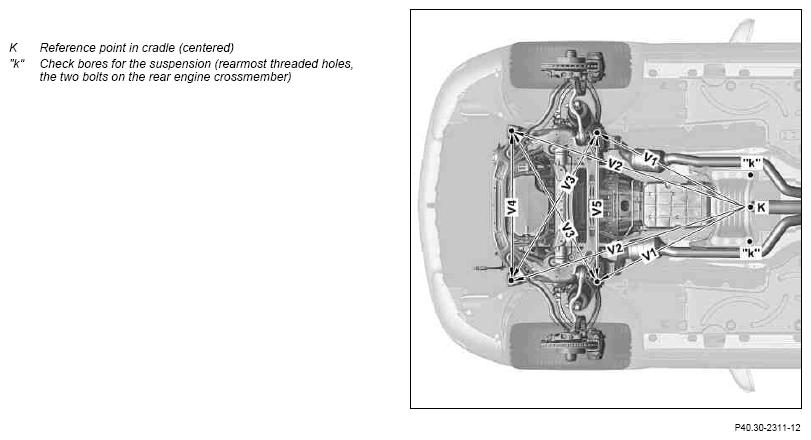

Front axle, shown on model 221

Fig 1: Checking Bores For Suspension On Front Axle - Shown On Model 221

Courtesy of MERCEDES-BENZ USA

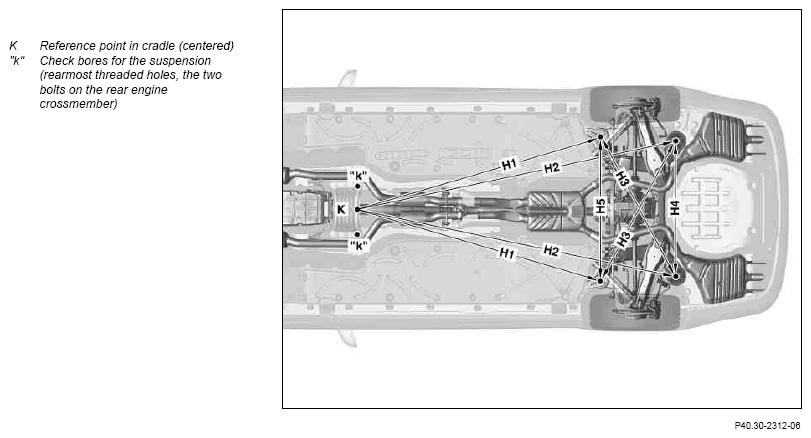

Rear axle, shown on model 221

Fig 2: Checking Bores For Suspension On Rear Axle - Shown On Model 221

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

18.9.08

Value changed: dimension, V2

*BE40.30-P-1001-06I

	Measure
1	Perform preparations for distance and comparative measurements		AR40.30-P-0401SX
2.1	Carry out distance measurement on front axle	For front end damage	AR40.30-P-0402-01SX
		Test specifications for distance measurement of front axle	*BE40.30-P-1001-06I
			Fig 5
			Fig 7
			Fig 3
			Fig 4
		Depending on the accident damage, further individual measuring points can be defined for a comparative measurement.	Fig 6
2.2	Carry out distance measurement on rear axle	For rear end damage	AR40.30-P-0402-02SX
		Test specifications for distance measurement of rear axle	*BE40.30-P-1001-05H
			Fig 5
			Fig 7
			Fig 4
		Depending on the accident damage, further individual measuring points can be defined for a comparative measurement.	Fig 6

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENTS ON REAR AXLE

Number	Designation			Model 216 except 4MATIC	Model 216 with 4MATIC
BE40.30-P-1001-05H	Dimension	H1	mm	1765 (±2)	1769 (±2)
		H2	mm	2311 (±2)	2314 (±2)
		H3	mm	1208 (±2)	1208 (±2)
		H4	mm	1026 (±2)	1026 (±2)
		H5	mm	1096 (±2)	1096 (±2)
		See		AR40.30-P-0402-02SX	AR40.30-P-0402-02SX

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENTS ON REAR AXLE

Number	Designation			MODEL 221.0	MODEL 221.1
BE40.30-P-1001-05H	Dimension	H1	mm	1839 (±2)	1964 (±2)
		H2	mm	2399 (±2)	2522 (±2)
		H3	mm	1208 (±2)	1208 (±2)
		H4	mm	1026 (±2)	1026 (±2)
		H5	mm	1096 (±2)	1096 (±2)
		See		AR40.30-P-0402-02SX	AR40.30-P-0402-02SX

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENT ON FRONT AXLE

Number	Designation			Model 216, 221
BE40.30-P-1001-06I	Dimension	V1	mm	977 (±2)
		V2	mm	1438 (±2)
		V3	mm	973 (±2)
		V4	mm	854 (±2)
		V5	mm	830 (±2)
		See		AR40.30-P-0402-01SX

Fig 3: Identifying Telescopic Measuring Rod (124 589 01 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Telescopic Measuring Rod (124 589 02 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Mount (170 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Set Of Measurement Fixtures (168 589 07 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Connecting Pieces (124 589 08 63 00)

Courtesy of MERCEDES-BENZ USA
