Wiring diagram of blower - PE83.10-U-2000-97CAA

Code: Designation: Position:
B10/31 Left side outlet temperature sensor 26L
B10/32 Right side outlet temperature sensor 31L
B10/35 Left footwell temperature sensor 27L
B10/36 Right footwell temperature sensor 30L
B10/4 In-car temperature sensor 25L
B10/6 Evaporator temperature sensor 29L
M2/10 Left footwell flap actuator motor 16L
M2/11 Right footwell flap actuator motor 18L
M2/12 Left center air flap actuator motor 14L
M2/13 Right center air flap actuator motor 19L
M2/17 Left side outlet flap actuator motor 9L
M2/18 Right side outlet flap actuator motor 5L
M2/30 Upper left blending air flap actuator motor 2L
M2/31 Lower left blending air flap actuator motor 12L
M2/32 Upper right blending air flap actuator motor 23L
M2/33 Lower right blending air flap actuator motor 21L
M2/5 Fresh air/air recirculation flaps actuator motor 11L
M2/8 Left defroster vent flap actuator motor 3L
M2/9 Right defroster vent flap actuator motor 7L
N22/1 AAC [KLA] control unit 4A
N22/1 AAC [KLA] control unit 12A
N22/1 AAC [KLA] control unit 20A
N22/1 AAC [KLA] control unit 28A
Z68/7 Cockpit AC system sensor ground 28G

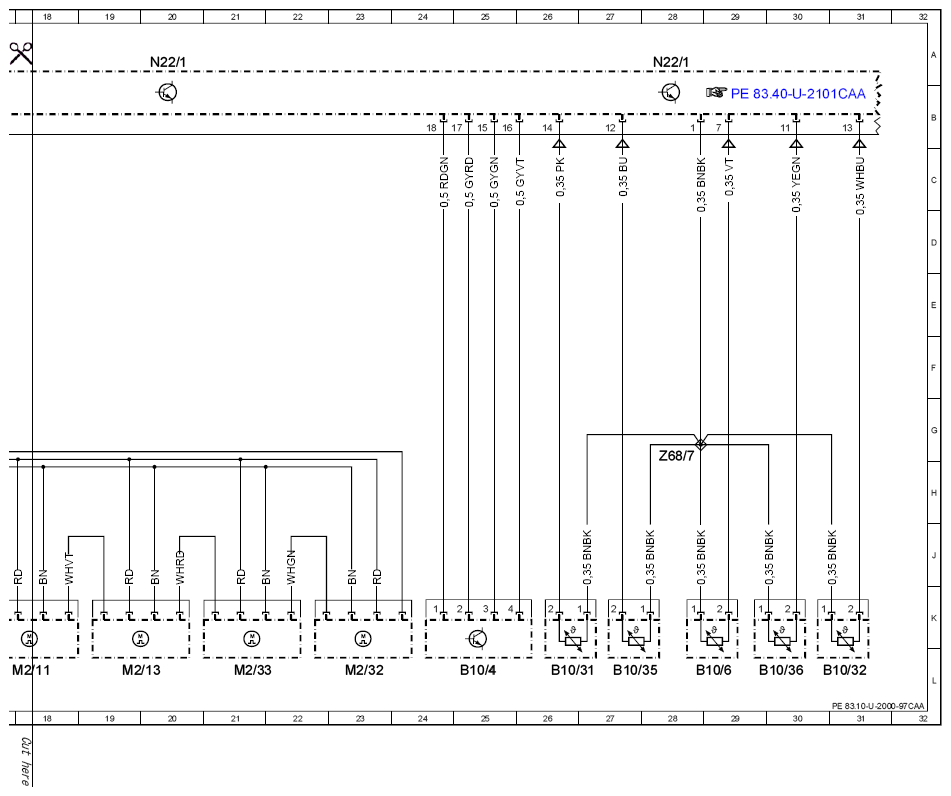

Fig 1: Blower Wiring Diagram (1 Of 2)
G10113074Courtesy of MERCEDES-BENZ USA

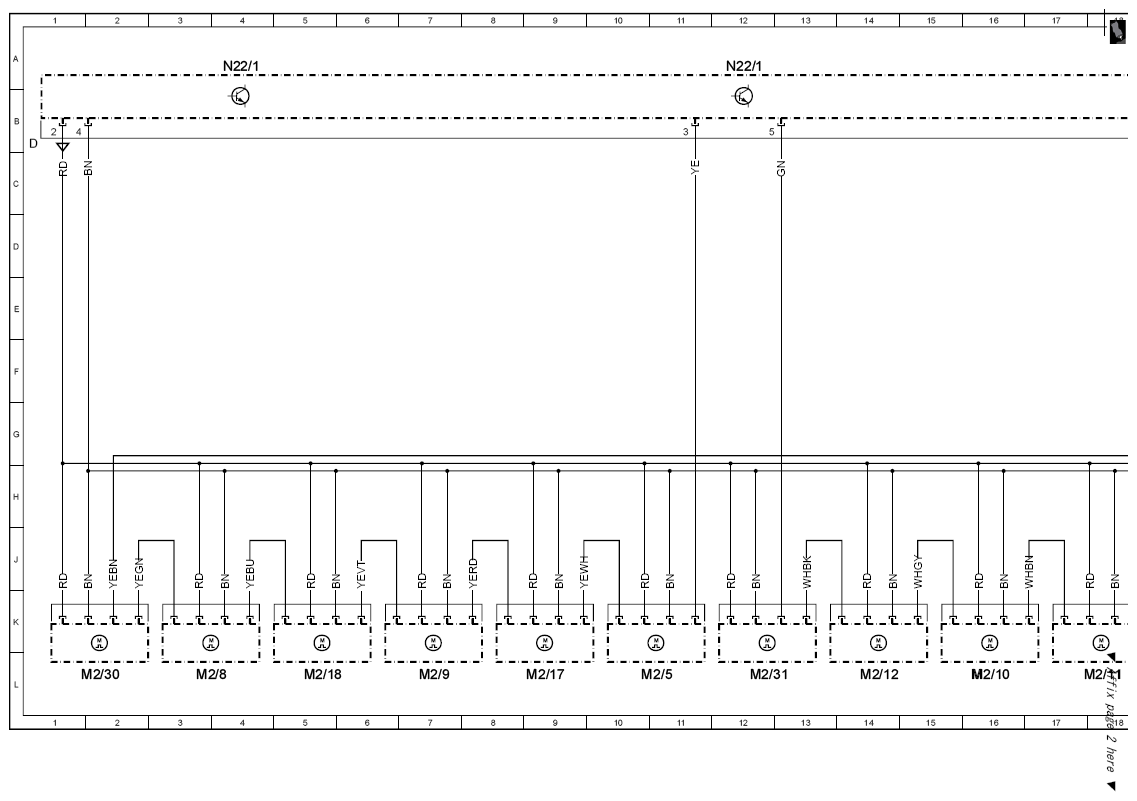

Fig 2: Blower Wiring Diagram (2 Of 2)
G10113075Courtesy of MERCEDES-BENZ USA
