Wiring diagram for telematics CAN - PE00.19-U-2180-97CAA

Code:	Designation:	Position:
A40/10	SPLITVIEW display	15L
A40/3	COMAND control unit	3L
A40/3	COMAND control unit	3L
A40/8	COMAND display	15L
A40/8	COMAND display	14L
A40/9	Front central operating unit	7L
U631	Valid for version with COMAND	12G
U982	Valid for SPLITVIEW display	13G
U983	Valid for Audio/COMAND display	13H
W15/1	Ground (right footwell)	4E
X18	Cockpit wiring harness and FFS [RBA] connector	14F
X30/35	Telematics CAN voltage distributor connector	12A
X30/35	Telematics CAN voltage distributor connector	4A
X30/35	Telematics CAN voltage distributor connector	20A

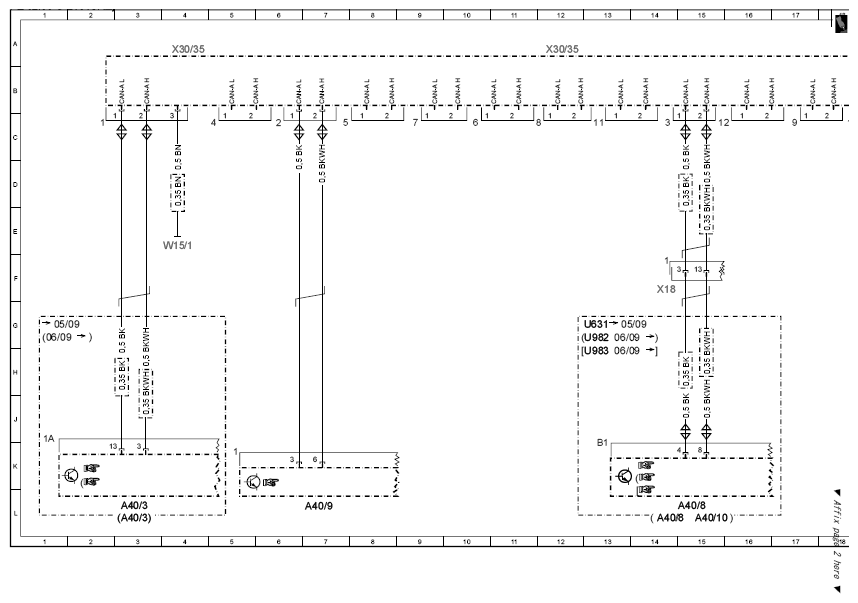

Fig 1: Telematics CAN Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

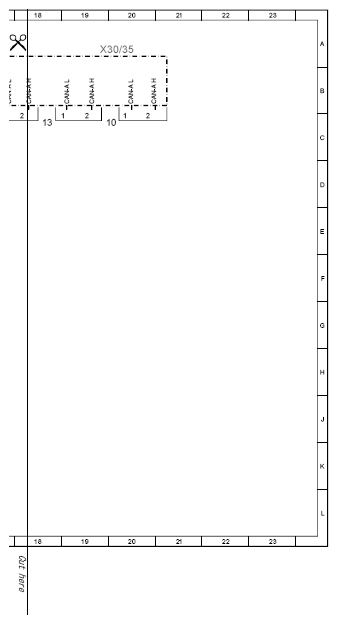

Fig 2: Telematics CAN Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
