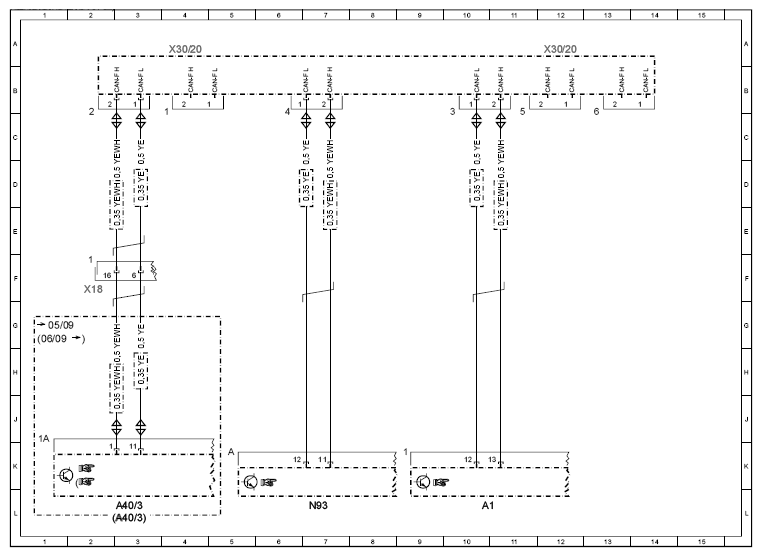

Wiring diagram for central CAN - PE00.19-U-2160-97CAA
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 10L |
| A40/3 | COMAND control unit | 3L |
| A40/3 | COMAND control unit | 3L |
| N93 | Central gateway control unit | 7L |
| X18 | Cockpit wiring harness and FFS [RBA] connector | 2F |
| X30/20 | Central CAN voltage distributor connector | 4A |
| X30/20 | Central CAN voltage distributor connector | 12A |
