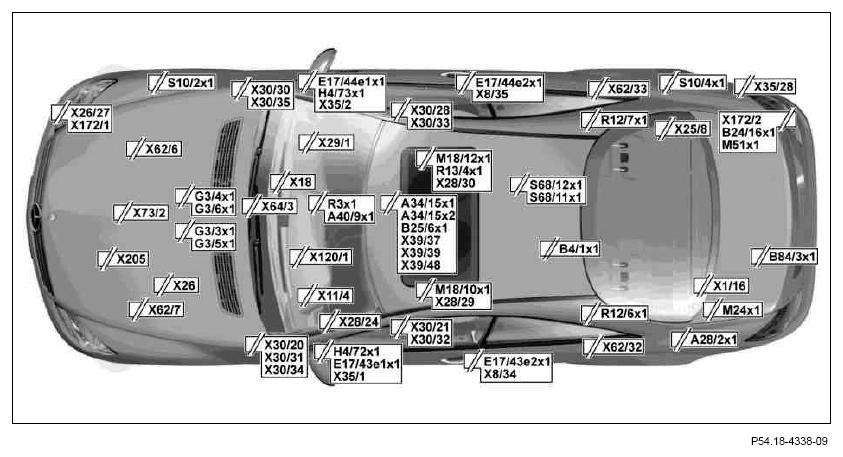

Arrangement and assignment of the wiring and plug connectors - GF00.19-U-1000CAA
MODEL 216
| A28/2x1 | Portable CTEL antenna amplifier connector | GF00.19-U-1000-06CAA | |
|---|---|---|---|
| A34/15x1 | Connector 1, UPCI [UHI] portable CTEL holder (Universal Handy Interface) | GF00.19-U-1000-03CAA | |
| A34/15x2 | Connector 2, UPCI [UHI] portable CTEL holder (Universal Handy Interface) | GF00.19-U-1000-03CAA | |
| A40/9x1 | Front central operating unit connector | GF00.19-U-1000-03CAA | |
| B4/1x1 | Left tank half fuel level sensor connector | GF00.19-U-1000-04CAA | |
| B24/16x1 | Trunk lid position sensor connector | GF00.19-U-1000-07CAA | |
| B25/6x1 | Sound amplifier microphone connector | GF00.19-U-1000-03CAA | |
| B84/3x1 | Backup camera connector | GF00.19-U-1000-06CAA | |
| E17/43e1x1 | Left door trim strip illumination connector, lamp | 1 | GF00.19-U-1000-04CAA |
| E17/43e2x1 | Left door trim strip illumination connector, lamp | 2 | GF00.19-U-1000-04CAA |
| E17/44e1x1 | Right door trim strip illumination connector, lamp 1 | GF00.19-U-1000-05CAA | |
| E17/44e2x1 | Right door trim strip illumination connector, lamp 2 | GF00.19-U-1000-05CAA | |
| G3/3x1 | Left O2 sensor upstream TWC [KAT] connector | M273 | GF00.19-U-1000-01CAB |
| G3/3x1 | Left O2 sensor upstream TWC [KAT] connector | M275 | GF00.19-U-1000-01CAC |
| G3/4x1 | Right O2 sensor upstream TWC [KAT] connector | M275 | GF00.19-U-1000-02CAC |
| G3/4x1 | Right O2 sensor upstream TWC [KAT] connector | M273 | GF00.19-U-1000-02CAB |
| G3/5x1 | Left O2 sensor downstream TWC [KAT] connector | M273 | GF00.19-U-1000-01CAB |
| G3/6x1 | Right O2 sensor downstream TWC [KAT] connector | M273 | GF00.19-U-1000-02CAB |
| H4/72x1 | Left door Sound woofer and midrange speaker group connector | GF00.19-U-1000-04CAA | |
| H4/73x1 | Right door Sound woofer and midrange speaker group connector | GF00.19-U-1000-05CAA | |
| M18/10x1 | Left front seat backrest ventilation motor group connector | GF00.19-U-1000-04CAA | |
| M18/12x1 | Right front seat backrest ventilation motor group connector | GF00.19-U-1000-05CAA | |
| M24x1 | Rear window blind motor connector | GF00.19-U-1000-04CAA | |
| M51x1 | TLC [HDS] hydraulic pump connector | GF00.19-U-1000-07CAA | |
| R3x1 | Front cigar lighter connector | GF00.19-U-1000-03CAA | |
| R12/6x1 | Left rear ETR squib connector | GF00.19-U-1000-04CAA | |
| R12/7x1 | Right rear ETR squib connector | GF00.19-U-1000-05CAA | |
| R13/4x1 | Right front backrest heater element connector | GF00.19-U-1000-05CAA | |
| S10/2x1 | Right front brake pad contact sensor connector | GF00.19-U-1000-02CAA | |
| S10/4x1 | Right rear brake pad contact sensor connector | GF00.19-U-1000-07CAA | |
| S68/11x1 | Left rear seat belt buckle switch connector | GF00.19-U-1000-05CAA | |
| S68/12x1 | Right rear seat belt buckle switch connector | GF00.19-U-1000-05CAA | |
| X1/16 | Roof antenna connector | GF00.19-U-1000-04CAA | |
| X11/4 | Data link connector | GF00.19-U-1000-03CAA | |
| X120/1 | Instrument cluster/COMAND display additional fan separation point | GF00.19-U-1000-03CAA | |
| X172/1 | Radar senors/FFS [RBA] connector, front bumper | GF00.19-U-1000-02CAA | |
| X172/2 | Radar senors/FFS [RBA] connector, rear bumper | GF00.19-U-1000-07CAA | |
| X18 | Cockpit wiring harness and FFS [RBA] connector | GF00.19-U-1000-03CAA | |
| X205 | Tumble flap/variable intake manifold switchover valves connector | GF00.19-U-1000-01CAA | |
| X25/8 | Overhead control panel and FFS [RBA] connector | GF00.19-U-1000-07CAA | |
| X26 | Interior and engine wiring harness connector | GF00.19-U-1000-01CAA | |
| X26/27 | PTS connector, front bumper | GF00.19-U-1000-02CAA | |
| X28/24 | Interior/telematics connector | GF00.19-U-1000-04CAA | |
| X28/29 | Driver-side FFS [RBA]/seat airbag separation point | GF00.19-U-1000-04CAA | |
| X28/30 | Passenger-side FFS [RBA]/seat airbag separation point | GF00.19-U-1000-05CAA | |
| X29/1 | Glove compartment lamp connector | GF00.19-U-1000-03CAA | |
| X30/20 | Central CAN voltage distributor connector | GF00.19-U-1000-03CAA | |
| X30/21 | Drive train CAN voltage distributor connector | GF00.19-U-1000-04CAA | |
| X30/28 | Vehicle dynamics CAN voltage distributor connector | GF00.19-U-1000-05CAA | |
| X30/30 | Chassis CAN/FFS [RBA] voltage distributor connector | GF00.19-U-1000-03CAA | |
| X30/31 | Chassis CAN/cockpit voltage distributor connector | GF00.19-U-1000-03CAA | |
| X30/32 | Left interior CAN/FFS [RBA] voltage distributor connector | GF00.19-U-1000-04CAA | |
| X30/33 | Right interior CAN/FFS [RBA] voltage distributor connector | GF00.19-U-1000-05CAA | |
| X30/34 | Interior CAN/cockpit voltage distributor connector | GF00.19-U-1000-03CAA | |
| X30/35 | Telematics CAN voltage distributor connector | GF00.19-U-1000-03CAA | |
| X35/1 | Left front door and FFS [RBA] connector | GF00.19-U-1000-04CAA | |
| X35/2 | Right front door and FFS [RBA] connector | GF00.19-U-1000-05CAA | |
| X35/28 | PTS connector, rear bumper | GF00.19-U-1000-07CAA | |
| X39/37 | CTEL separation point | GF00.19-U-1000-04CAA | |
| X39/39 | Handy connector | GF00.19-U-1000-04CAA | |
| X39/48 | Breakdown assistance/info button connector | GF00.19-U-1000-03CAA | |
| X62/32 | Left rear axle electrical distributor connector | GF00.19-U-1000-04CAA | |
| X62/33 | Right rear axle electrical distributor connector | GF00.19-U-1000-05CAA | |
| X62/6 | Right front axle multiple circuit junction connector, in component compartment | GF00.19-U-1000-02CAA | |
| X62/7 | Left front axle multiple circuit junction connector, in component compartment | GF00.19-U-1000-01CAA | |
| X64/3 | Wiper park heater connector | GF00.19-U-1000-02CAA | |
| X73/2 | Coolant circulation pump connector | GF00.19-U-1000-01CAA | |
| X8/34 | Left door handle connector | GF00.19-U-1000-04CAA | |
| X8/35 | Right door handle connector | GF00.19-U-1000-05CAA | |
| GF00.19-U-1000-01CAA | Arrangement and assignment of the wiring and plug connectors, engine compartment (left) | GF00.19-U-1000-01CAA | |
| GF00.19-U-1000-01CAB | Arrangement and assignment of the wiring and plug connectors, engine compartment (left) | ENGINE 273 in Model 216 | GF00.19-U-1000-01CAB |
| GF00.19-U-1000-01CAC | Arrangement and assignment of the wiring and plug connectors, engine compartment (left) | ENGINE 275 in Model 216 | GF00.19-U-1000-01CAC |
| GF00.19-U-1000-02CAA | Arrangement and assignment of the wiring and plug connectors, engine compartment (right) | GF00.19-U-1000-02CAA | |
| GF00.19-U-1000-02CAB | Arrangement and assignment of the wiring and plug connectors, engine compartment (right) | ENGINE 273 in Model 216 | GF00.19-U-1000-02CAB |
| GF00.19-U-1000-02CAC | Arrangement and assignment of the wiring and plug connectors, engine compartment (right) | ENGINE 275 in Model 216 | GF00.19-U-1000-02CAC |
| GF00.19-U-1000-03CAA | Arrangement and assignment of the wiring and plug connectors, interior compartment (cockpit) | GF00.19-U-1000-03CAA | |
| GF00.19-U-1000-04CAA | Arrangement and assignment of the wiring and plug connectors, interior compartment (left) | GF00.19-U-1000-04CAA | |
| GF00.19-U-1000-05CAA | Arrangement and assignment of the wiring and plug connectors, interior compartment (right) | GF00.19-U-1000-05CAA | |
| GF00.19-U-1000-06CAA | Arrangement and assignment of the wiring and plug connectors, trunk (left) | GF00.19-U-1000-06CAA | |
| GF00.19-U-1000-07CAA | Arrangement and assignment of the wiring and plug connections, trunk (right) | GF00.19-U-1000-07CAA |
