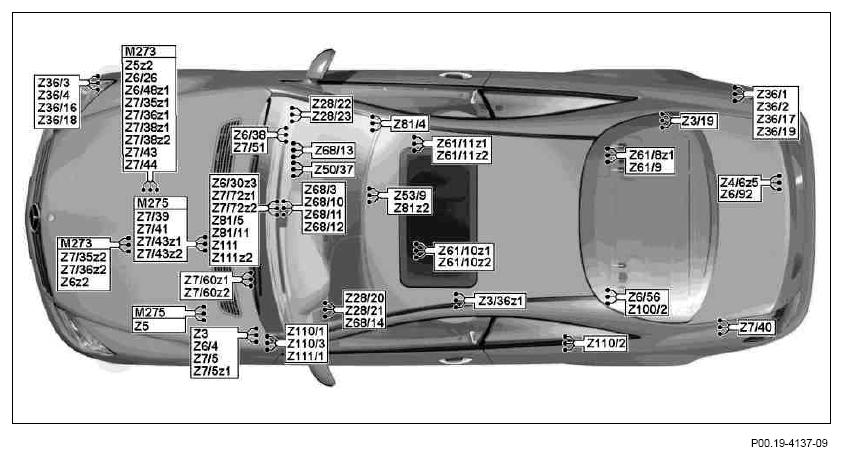

Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - GF00.19-U-3000CAA
MODEL 216
| Z3 | Circuit 15 connector sleeve | GF00.19-U-3000-01CAA | |
| Z3/19 | Circuit 15 connector sleeve (fused) (PTS) | GF00.19-U-3000-07CAA | |
| Z3/36z1 | ACSR [AKSE] circuit 15R connector sleeve | GF00.19-U-3000-04CAA | |
| Z4/6z5 | Luggage compartment lamp circuit 30 connector sleeve | GF00.19-U-3000-07CAA | |
| Z5 | Connector sleeve (solder joint in harness) | M275 | GF00.19-U-3000-01CAA |
| Z5z2 | Connector sleeve (solder joint in harness) | M273 | GF00.19-U-3000-02CAA |
| Z6/4 | Ground connector sleeve (sensor downstream TWC) | GF00.19-U-3000-01CAA | |
| Z6/26 | Sensor supply connector sleeve | M273 | GF00.19-U-3000-02CAA |
| Z6/30z3 | Circuit 31 connector sleeve | GF00.19-U-3000-03CAA | |
| Z6/38 | Front axle acceleration sensor ground connector sleeve | GF00.19-U-3000-05CAA | |
| Z6/48z1 | Ground connector sleeve | M273 | GF00.19-U-3000-02CAA |
| Z6/48z2 | Ground connector sleeve | M273 | GF00.19-U-3000-01CAA |
| Z6/56 | Circuit 31 connector sleeve | GF00.19-U-3000-06CAA | |
| Z6/92 | Trunk lid ground connector sleeve | GF00.19-U-3000-07CAA | |
| Z7/5 | Circuit 87 connector sleeve | GF00.19-U-3000-01CAA | |
| Z7/5z1 | Circuit 87 connector sleeve | GF00.19-U-3000-04CAA | |
| Z7/35z1 | Circuit 87M1e connector sleeve | M273 | GF00.19-U-3000-02CAA |
| Z7/35z2 | Circuit 87M1e connector sleeve | GF00.19-U-3000-01CAA | |
| Z7/36z1 | Circuit 87M2e connector sleeve | M273 | GF00.19-U-3000-02CAA |
| Z7/36z2 | Circuit 87M2e connector sleeve | GF00.19-U-3000-01CAA | |
| Z7/38z1 | Circuit 87 M1i connector sleeve | M273 | GF00.19-U-3000-02CAA |
| Z7/38z2 | Circuit 87 M1i connector sleeve | GF00.19-U-3000-01CAA | |
| Z7/39 | Circuit 87 M2i connector sleeve | M275 | GF00.19-U-3000-01CAA |
| Z7/40 | Circuit 30 connector sleeve | GF00.19-U-3000-04CAA | |
| Z7/41 | Sensor supply connector sleeve | M275 | GF00.19-U-3000-02CAA |
| Z7/43 | Sensor ground connector sleeve | M273 | GF00.19-U-3000-02CAA |
| Z7/43z1 | Sensor ground connector sleeve | M275 | GF00.19-U-3000-02CAA |
| Z7/43z2 | Sensor ground connector sleeve | M275 | GF00.19-U-3000-02CAA |
| Z7/44 | Sensor ground connector sleeve | M273 | GF00.19-U-3000-02CAA |
| Z7/51 | Front axle acceleration sensor connector sleeve | GF00.19-U-3000-05CAA | |
| Z7/60z1 | 5V output connector sleeve (solder connector in wiring harness) | GF00.19-U-3000-03CAA | |
| Z7/60z2 | 5V output connector sleeve (solder connector in wiring harness) | GF00.19-U-3000-03CAA | |
| Z7/72z1 | COC nozzles and sensors sensor ground connector sleeve | GF00.19-U-3000-03CAA | |
| Z7/72z2 | COC nozzles and sensors sensor ground connector sleeve | GF00.19-U-3000-03CAA | |
| Z28/20 | Left A-pillar speaker group connector sleeve (+ signal) | GF00.19-U-3000-04CAA | |
| Z28/21 | Left A-pillar speaker group connector sleeve (- signal) | GF00.19-U-3000-04CAA | |
| Z28/22 | Speaker group connector sleeve right A-pillar (signal+) | GF00.19-U-3000-05CAA | |
| Z28/23 | Speaker group connector sleeve right A-pillar (signal-) | GF00.19-U-3000-05CAA | |
| Z36/1 | Rear PTS sensor ground connector sleeve | GF00.19-U-3000-07CAA | |
| Z36/2 | Rear PTS sensor voltage supply connector sleeve | GF00.19-U-3000-07CAA | |
| Z36/3 | Front PTS sensor ground connector sleeve | GF00.19-U-3000-02CAA | |
| Z36/4 | Front PTS sensor voltage supply connector sleeve | GF00.19-U-3000-02CAA | |
| Z36/16 | Front CAN (low) sensor connector sleeve | GF00.19-U-3000-02CAA | |
| Z36/17 | Rear CAN (low) sensor connector sleeve | GF00.19-U-3000-07CAA | |
| Z36/18 | Front CAN (high) sensor connector sleeve | GF00.19-U-3000-02CAA | |
| Z36/19 | Rear CAN (high) sensor connector sleeve | GF00.19-U-3000-07CAA | |
| Z50/37 | Air conditioner compressor ground connector sleeve | GF00.19-U-3000-03CAA | |
| Z53/9 | Interior sleeve connector, airbag circuit 31 | GF00.19-U-3000-04CAA | |
| Z61/10z1 | Driver seat backrest/head restraint motor connector sleeve | GF00.19-U-3000-04CAA | |
| Z61/10z2 | Driver seat backrest/head restraint motor connector sleeve | GF00.19-U-3000-04CAA | |
| Z61/11z1 | Front passenger seat backrest/head restraint motor connector sleeve | GF00.19-U-3000-05CAA | |
| Z61/11z2 | Front passenger seat backrest/head restraint motor connector sleeve | GF00.19-U-3000-05CAA | |
| Z61/8z1 | Wiring harness connector sleeve for seat, terminal 31 | GF00.19-U-3000-05CAA | |
| Z61/9 | Wiring harness connector sleeve for seat, terminal 31K | GF00.19-U-3000-05CAA | |
| Z68/3 | AC LIN bus data connector sleeve | GF00.19-U-3000-03CAA | |
| Z68/10 | OBD LIN bus ground connector sleeve | GF00.19-U-3000-03CAA | |
| Z68/11 | OBD LIN bus positive connector sleeve | GF00.19-U-3000-03CAA | |
| Z68/12 | OBD LIN bus data connector sleeve | GF00.19-U-3000-03CAA | |
| Z68/13 | TPM [RDK] LIN bus ground connnector sleeve | GF00.19-U-3000-05CAA | |
| Z68/14 | TPM [RDK] LIN bus ground connnector sleeve | GF00.19-U-3000-04CAA | |
| Z81/4 | Circuit 58d in FSS [RBA] connector sleeve | GF00.19-U-3000-05CAA | |
| Z81/11 | Front passenger circuit 58d connector sleeve | GF00.19-U-3000-03CAA | |
| Z81/5 | Circuit 58d COC connector sleeve | GF00.19-U-3000-03CAA | |
| Z81z2 | Circuit 58d connector sleeve | GF00.19-U-3000-04CAA | |
| Z100/2 | Wake-up signal connector sleeve | GF00.19-U-3000-06CAA | |
| Z110/1 | AC bus solder terminal | GF00.19-U-3000-01CAA | |
| Z110/2 | AC bus solder terminal | GF00.19-U-3000-04CAA | |
| Z110/3 | AC bus solder terminal | GF00.19-U-3000-01CAA | |
| Z111 | Voltage supply connector sleeve | GF00.19-U-3000-03CAA | |
| Z111z2 | Voltage supply connector sleeve | GF00.19-U-3000-03CAA | |
| Z111/1 | AC 12V solder terminal | GF00.19-U-3000-01CAA | |
| GF00.19-U-3000-01CAA | Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (left) | GF00.19-U-3000-01CAA | |
| GF00.19-U-3000-02CAA | Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (right) | GF00.19-U-3000-02CAA | |
| GF00.19-U-3000-03CAA | Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - cockpit | GF00.19-U-3000-03CAA | |
| GF00.19-U-3000-04CAA | Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - interior compartment (left) | GF00.19-U-3000-04CAA | |
| GF00.19-U-3000-05CAA | Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - interior compartment (right) | GF00.19-U-3000-05CAA | |
| GF00.19-U-3000-06CAA | Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - trunk (left) | GF00.19-U-3000-06CAA | |
| GF00.19-U-3000-07CAA | Arrangement and assignment of Z end connectors (connectors in harness) in right of trunk | GF00.19-U-3000-07CAA |
