Location and assignment of Z connector sleeves (wiring and plug connectors in wiring harness) - GF00.19-P-3000CAA
MODEL 216

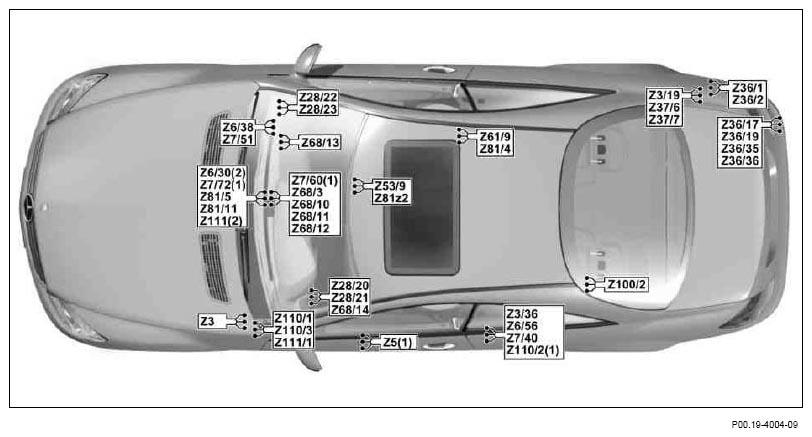

| Z3 | Tml. 15 connector sleeve | GF00.19-P-3000-01CAA | |
| Z3/19 | Circuit 15 connector sleeve (fused) (PTS) | GF00.19-P-3000-07CAA | |
| Z3/36 | ACSR [AKSE] circuit 15R connector sleeve | GF00.19-P-3000-04CAA | |

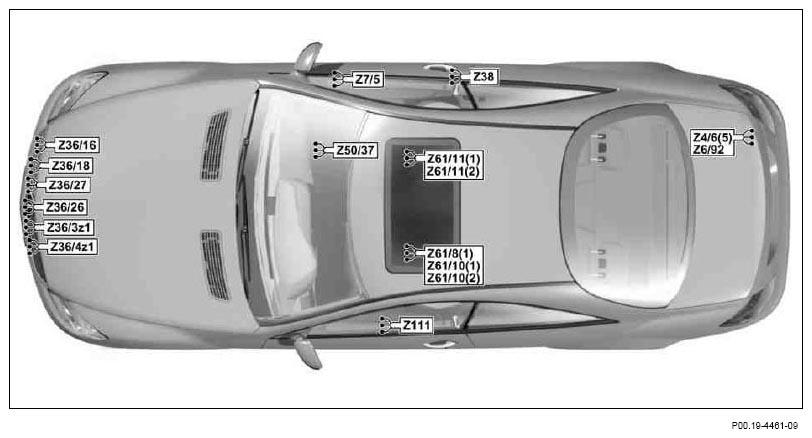

| Z4/6 (5) | Luggage compartment lamp circuit 30 connector sleeve | GF00.19-P-3000-07CAA | |

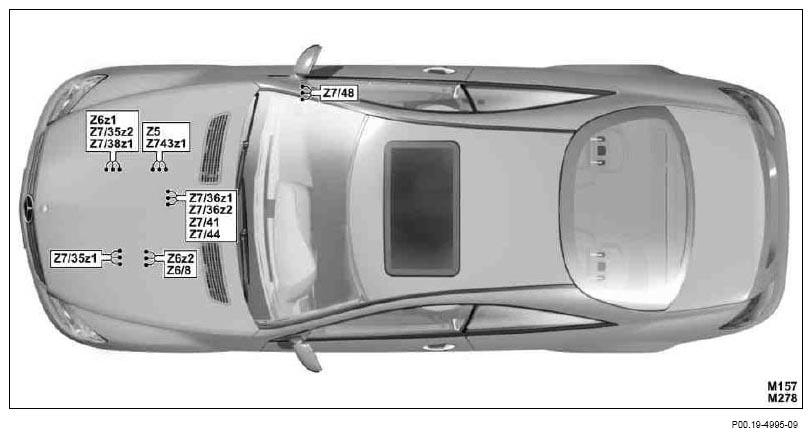

| Z5 | Connector sleeve (solder connector in harness) | M157, M278 | GF00.19-P-3000-02CAA |

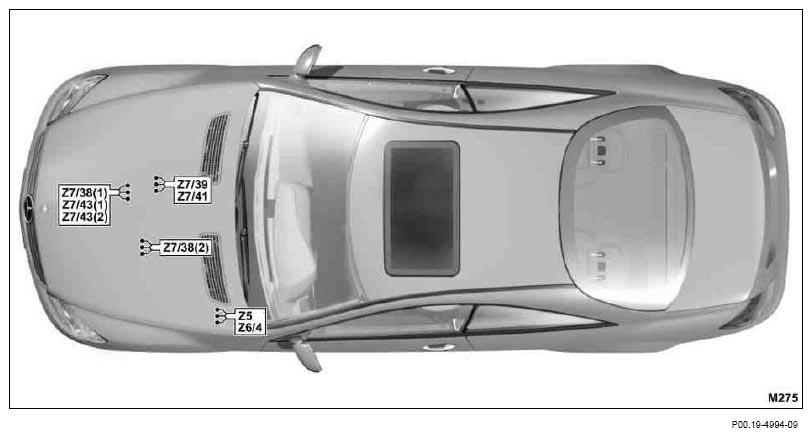

| Z5 | Connector sleeve (solder connector in harness) | M275 | GF00.19-P-3000-01CAA |
| Z5(1) | Connector sleeve (solder connector in harness) | GF00.19-P-3000-04CAA | |

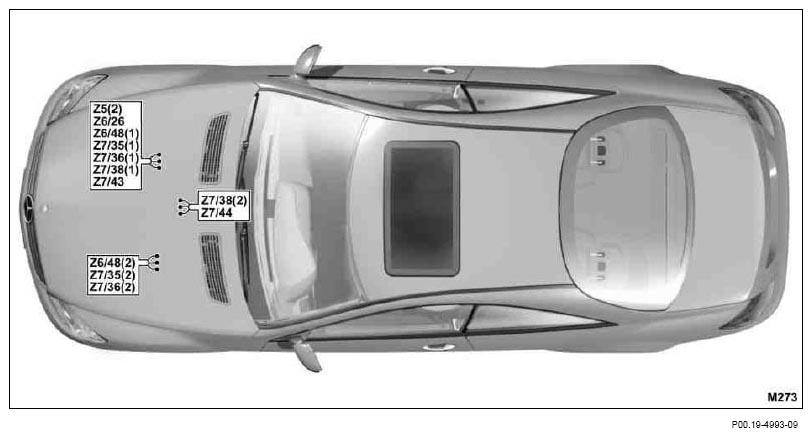

| Z5 (2) | Connector sleeve (solder connector in harness) | M273 | GF00.19-P-3000-02CAA |
| Z6z1 | Ground connector sleeve | M157, M278 | GF00.19-P-3000-02CAA |
| Z6z2 | Ground connector sleeve | M157, M278 | GF00.19-P-3000-01CAA |
| Z6/4 | Ground connector sleeve (sensor downstream of TWC) | M275 | GF00.19-P-3000-01CAA |
| Z6/8 | Sensor ground connector sleeve | M157, M278 | GF00.19-P-3000-01CAA |
| Z6/26 | Sensor supply connector sleeve | M273 | GF00.19-P-3000-02CAA |

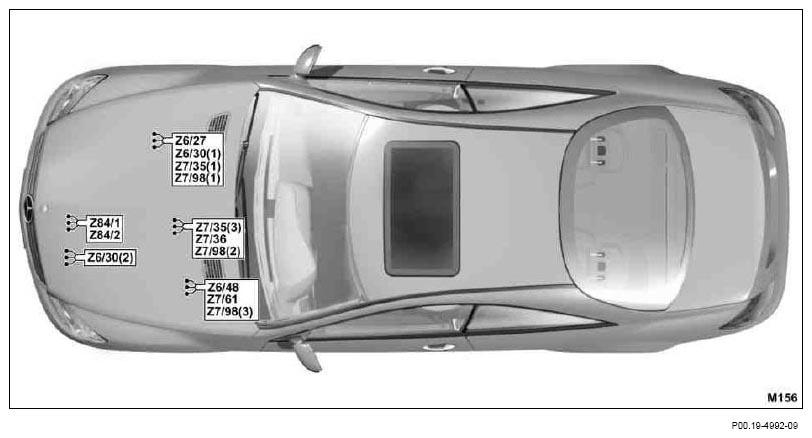

| Z6/27 | Sensor ground connector sleeve | M156 | GF00.19-P-3000-02CAA |
| Z6/30 (1) | Circuit 31 connector sleeve | M156 | GF00.19-P-3000-02CAA |
| Z6/30 (2) | Circuit 31 connector sleeve | M156 | GF00.19-P-3000-01CAA |
| Z6/30 (2) | Circuit 31 connector sleeve | GF00.19-P-3000-03CAA | |
| Z6/38 | Front axle acceleration sensor ground connector sleeve | GF00.19-P-3000-05CAA | |
| Z6/48 | Ground connector sleeve | M156 | GF00.19-P-3000-01CAA |
| Z6/48(1) | Ground connector sleeve | M273 | GF00.19-P-3000-02CAA |
| Z6/48(2) | Ground connector sleeve | M273 | GF00.19-P-3000-01CAA |
| Z6/56 | Circuit 31 connector sleeve | GF00.19-P-3000-04CAA | |
| Z6/92 | Trunk lid ground connector sleeve | GF00.19-P-3000-07CAA | |
| Z7/35 (1) | Circuit 87M1e connector sleeve | M273 | GF00.19-P-3000-02CAA |
| Z7/35(2) | Circuit 87M1e connector sleeve | M273 | GF00.19-P-3000-01CAA |
| Z7/35(3) | Circuit 87M1e connector sleeve | M156 | GF00.19-P-3000-01CAA |
| Z7/35(4) | Circuit 87M1e connector sleeve | M156 | GF00.19-P-3000-02CAA |
| Z7/35z1 | Circuit 87M1e connector sleeve | M157, M278 | GF00.19-P-3000-01CAA |
| Z7/35z2 | Circuit 87M1e connector sleeve | M157, M278 | GF00.19-P-3000-02CAA |
| Z7/36 | Circuit 87 M2e connector sleeve | M156 | GF00.19-P-3000-01CAA |
| Z7/36(1) | Circuit 87 M2e connector sleeve | M273 | GF00.19-P-3000-02CAA |
| Z7/36(2) | Circuit 87 M2e connector sleeve | M273 | GF00.19-P-3000-01CAA |
| Z7/36z1 | Circuit 87 M2e connector sleeve | M157, M278 | GF00.19-P-3000-01CAA |
| Z7/36z2 | Circuit 87 M2e connector sleeve | M157, M278 | GF00.19-P-3000-02CAA |
| Z7/38 (1) | Circuit 87 M1i connector sleeve | M273, M275 | GF00.19-P-3000-02CAA |
| Z7/38z1 | Circuit 87 M1i connector sleeve | M157, M278 | GF00.19-P-3000-02CAA |
| Z7/38(2) | Circuit 87 M1i connector sleeve | M273 | GF00.19-P-3000-02CAA |
| Z7/38(2) | Circuit 87 M1i connector sleeve | M275 | GF00.19-P-3000-01CAA |
| Z7/39 | Circuit 87 M2i connector sleeve | M275 | GF00.19-P-3000-02CAA |
| Z7/40 | Tml. 30 connector sleeve | GF00.19-P-3000-04CAA | |
| Z7/41 | Sensor supply connector sleeve | M157, M278 | GF00.19-P-3000-01CAA |
| Z7/41 | Sensor supply connector sleeve | M275 | GF00.19-P-3000-02CAA |
| Z7/43 | Sensor ground connector sleeve | M273 | GF00.19-P-3000-02CAA |
| Z7/43(1) | Sensor ground connector sleeve | M275 | GF00.19-P-3000-02CAA |
| Z7/43 (2) | Sensor ground connector sleeve | M275 | GF00.19-P-3000-02CAA |
| Z7/43z1 | Sensor ground connector sleeve | M157, M278 | GF00.19-P-3000-02CAA |
| Z7/44 | Sensor ground connector sleeve | M273 | GF00.19-P-3000-02CAA |
| Z7/44 | Sensor ground connector sleeve | M157, M278 | GF00.19-P-3000-01CAA |
| Z7/48 | Circuit 87 D2 connector sleeve | M157, M278 | GF00.19-P-3000-05CAA |
| Z7/5 | Circuit 87 connector sleeve | GF00.19-P-3000-05CAA | |
| Z7/51 | Front axle acceleration sensor connector sleeve | GF00.19-P-3000-05CAA | |
| Z7/60 (1) | 5 V output connector sleeve (solder connector in wiring harness) | GF00.19-P-3000-03CAA | |
| Z7/61 | 5V output 2 connector sleeve | M156 | GF00.19-P-3000-01CAA |
| Z7/72 (1) | COC nozzles and sensors sensor ground connector sleeve | GF00.19-P-3000-03CAA | |
| Z7/98(1) | Circuit 87 M3e connector sleeve | M156 | GF00.19-P-3000-02CAA |
| Z7/98(2) | Circuit 87 M3e connector sleeve | M156 | GF00.19-P-3000-01CAA |
| Z7/98 (3) | Circuit 87 M3e connector sleeve | M156 | GF00.19-P-3000-01CAA |
| Z28/20 | Left A-pillar speaker group connector sleeve (- signal) | GF00.19-P-3000-04CAA | |
| Z28/21 | Left A-pillar speaker group connector sleeve (+ signal) | GF00.19-P-3000-04CAA | |
| Z28/22 | Speaker group connector sleeve right A-pillar (signal+) | GF00.19-P-3000-05CAA | |
| Z28/23 | Speaker group connector sleeve right A-pillar (signal-) | GF00.19-P-3000-05CAA | |
| Z36/1 | Rear PTS sensor ground connector sleeve | GF00.19-P-3000-07CAA | |
| Z36/2 | Rear PTS sensor voltage supply connector sleeve | GF00.19-P-3000-07CAA | |
| Z36/26 | Front PTS sensor ground connector sleeve | GF00.19-P-3000-01CAA | |
| Z36/3z1 | Front PTS sensor ground connector sleeve | GF00.19-P-3000-01CAA | |
| Z36/27 | Front PTS sensor voltage supply connector sleeve | GF00.19-P-3000-02CAA | |
| Z36/4z1 | Front PTS sensor voltage supply connector sleeve | GF00.19-P-3000-01CAA | |
| Z36/16 | Front CAN (low) sensor connector sleeve | GF00.19-P-3000-02CAA | |
| Z36/17 | Rear CAN (low) sensor connector sleeve | GF00.19-P-3000-07CAA | |
| Z36/18 | Front CAN (high) sensor connector sleeve | GF00.19-P-3000-02CAA | |
| Z36/19 | Rear CAN (high) sensor connector sleeve | GF00.19-P-3000-07CAA | |
| Z36/35 | Rear radar sensors sensor power supply connector sleeve | GF00.19-P-3000-07CAA | |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | GF00.19-P-3000-07CAA | |
| Z37/6 | CAN databus (high) connector sleeve | GF00.19-P-3000-07CAA | |
| Z37/7 | CAN bus (low) connector sleeve | GF00.19-P-3000-07CAA | |
| Z38 | Backup lamp connector sleeve | GF00.19-P-3000-05CAA | |
| Z50/37 | Air conditioner compressor ground connector sleeve | GF00.19-P-3000-03CAA | |
| Z53/9 | Interior sleeve connector, airbag circuit 31 | GF00.19-P-3000-04CAA | |
| Z61/8 (1) | Wiring harness connector sleeve for seat, terminal 31 | GF00.19-P-3000-04CAA | |
| Z61/9 | Wiring harness connector sleeve for seat, circuit 31K | GF00.19-P-3000-05CAA | |
| Z61/10 (1) | Driver seat backrest/head restraint motor connector sleeve | GF00.19-P-3000-04CAA | |
| Z61/10 (2) | Driver seat backrest/head restraint motor connector sleeve | GF00.19-P-3000-04CAA | |
| Z61/11 (1) | Front passenger seat backrest/head restraint motor connector sleeve | GF00.19-P-3000-05CAA | |
| Z61/11(2) | Front passenger seat backrest/head restraint motor connector sleeve | GF00.19-P-3000-05CAA | |
| Z68/10 | OBD LIN bus ground connector sleeve | GF00.19-P-3000-03CAA | |
| Z68/11 | OBD LIN bus positive connector sleeve | GF00.19-P-3000-03CAA | |
| Z68/12 | OBD LIN bus data connector sleeve | GF00.19-P-3000-03CAA | |
| Z68/13 | TPM [RDK] LIN bus ground connector sleeve | GF00.19-P-3000-05CAA | |
| Z68/14 | TPM [RDK] LIN bus ground connector sleeve | GF00.19-P-3000-04CAA | |
| Z68/3 | AC LIN bus data connector sleeve | GF00.19-P-3000-03CAA | |
| Z81z2 | Circuit 58d connector sleeve | GF00.19-P-3000-04CAA | |
| Z81/11 | Front passenger circuit 58d connector sleeve | GF00.19-P-3000-03CAA | |
| Z81/4 | FFS [RBA] circuit 58d connector sleeve | GF00.19-P-3000-05CAA | |
| Z81/5 | Circuit 58d COC connector sleeve | GF00.19-P-3000-03CAA | |
| Z84/1 | Throttle valve actuator connector sleeve (+ signal) | M156 | GF00.19-P-3000-01CAA |
| Z84/2 | Throttle valve actuator connector sleeve (- signal) | M156 | GF00.19-P-3000-01CAA |
| Z100/2 | Wake-up signal connector sleeve | GF00.19-P-3000-06CAA | |
| Z110/1 | AC bus solder terminal | GF00.19-P-3000-01CAA | |
| Z110/2(1) | AC bus solder terminal | GF00.19-P-3000-04CAA | |
| Z110/3 | AC bus solder terminal | GF00.19-P-3000-01CAA | |
| Z111 | Voltage supply connector sleeve | GF00.19-P-3000-04CAA | |
| Z111 (2) | Voltage supply connector sleeve | GF00.19-P-3000-03CAA | |
| Z111/1 | A/C 12 V solder terminal | GF00.19-P-3000-01CAA | |
| GF00.19-P-3000-01CAA | Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment left | GF00.19-P-3000-01CAA | |
| GF00.19-P-3000-02CAA | Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment, right | GF00.19-P-3000-02CAA | |
| GF00.19-P-3000-03CAA | Location and assignment of Z connector sleeves (cable connections in wiring harness) - cockpit | GF00.19-P-3000-03CAA | |
| GF00.19-P-3000-04CAA | Location and assignment of Z connector sleeves (cable connections in wiring harness) - interior left | GF00.19-P-3000-04CAA | |
| GF00.19-P-3000-05CAA | Location and assignment of Z connector sleeves (cable connections in wiring harness) - interior right | GF00.19-P-3000-05CAA | |
| GF00.19-P-3000-06CAA | Location and assignment of Z connector sleeves (connectors and wiring harness) - trunk left | GF00.19-P-3000-06CAA | |
| GF00.19-P-3000-07CAA | Location and assignment of Z connector sleeves (connectors and wiring harness) - trunk right | GF00.19-P-3000-07CAA |
