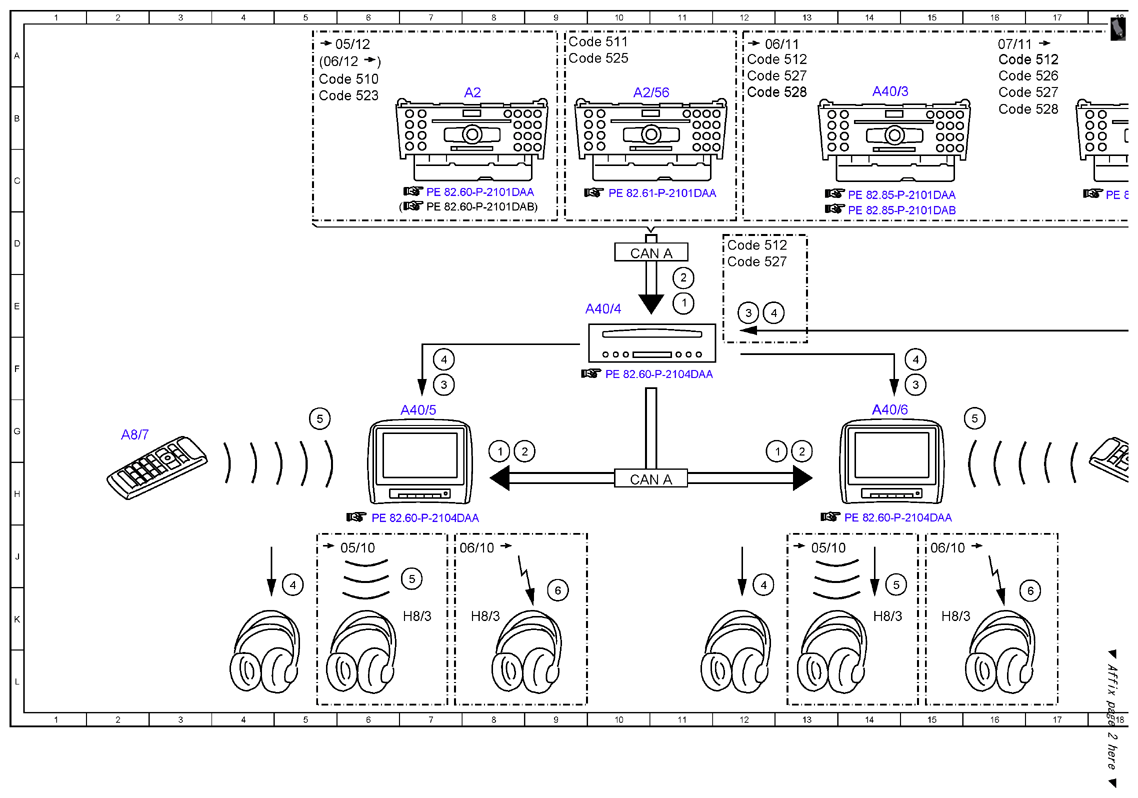

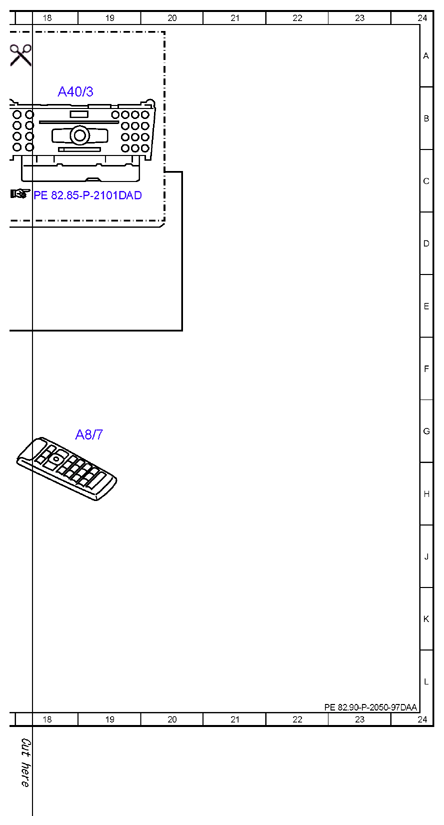

Electrical function schematic for rear entertainment AUX applications - PE82.90-P-2050-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 up to 3/1/15 up to model year 2016 with CODE 864 (Rear entertainment system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 12G |
| 1 | Circuit 15, status | 8G |
| 1 | Circuit 15, status | 11E |
| 2 | Telematics CAN active, signal | 8G |
| 2 | Telematics CAN active, signal | 11E |
| 2 | Telematics CAN active, signal | 13G |
| 3 | Analog picture signal, signal | 7F |
| 3 | Analog picture signal, signal | 15F |
| 3 | Analog picture signal, signal | 12E |
| 4 | Analog audio signal, signal | 7F |
| 4 | Analog audio signal, signal | 15F |
| 4 | Analog audio signal, signal | 12K |
| 4 | Analog audio signal, signal | 12E |
| 4 | Analog audio signal, signal | 5K |
| 5 | Infrared, signal | 5G |
| 5 | Infrared, signal | 16G |
| 5 | Infrared, signal | 14K |
| 5 | Infrared, signal | 7J |
| 6 | Radio frequency, signal | 17K |
| 6 | Radio frequency, signal | 9K |
| A2 | Radio | 8B |
| A2/56 | Radio with auto pilot system | 10B |
| A40/3 | COMAND control unit | 14B |
| A40/3 | COMAND control unit | 18B |
| A40/4 | DVD player | 10E |
| A40/5 | Left rear display | 7G |
| A40/6 | Right rear display | 14G |
| A8/7 | Remote control | 2G |
| A8/7 | Remote control | 19G |
| CAN A | Telematics CAN | 10H |
| CAN A | Telematics CAN | 10D |
| Code 510 | Audio 20 with CD changer | 5A |
| Code 511 | Audio 50 APS incl. DVD changer | 9A |
| Code 512 | COMAND APS with DVD changer | 12D |
| Code 512 | COMAND APS with DVD changer | 16A |
| Code 512 | COMAND APS with DVD changer | 12A |
| Code 523 | Audio 20 radio | 5B |
| Code 525 | Audio 50 APS radio (CD) | 9A |
| Code 526 | COMAND with single DVD drive (without navigation) | 16A |
| Code 527 | COMAND APS (with navigation) | 12D |
| Code 527 | COMAND APS (with navigation) | 16B |
| Code 527 | COMAND APS (with navigation) | 12A |
| Code 528 | COMAND with DVD changer | 16B |
| Code 528 | COMAND with DVD changer | 12B |
| H8/3 | Radio frequency headphones | 7K |
| H8/3 | Radio frequency headphones | 8K |
| H8/3 | Radio frequency headphones | 15K |
| H8/3 | Radio frequency headphones | 14K |
