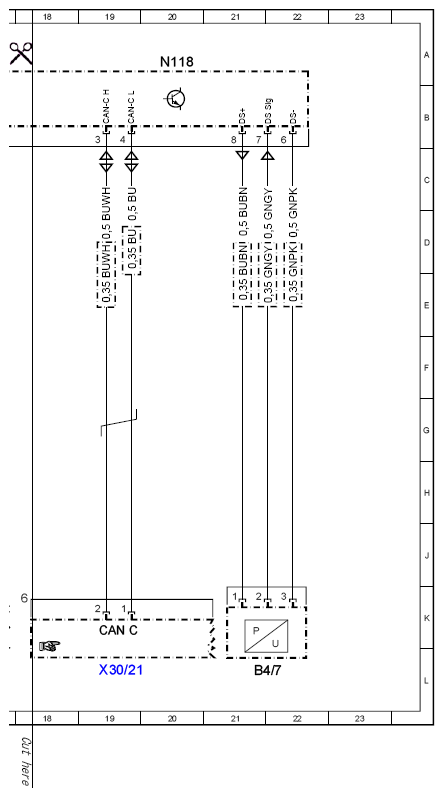

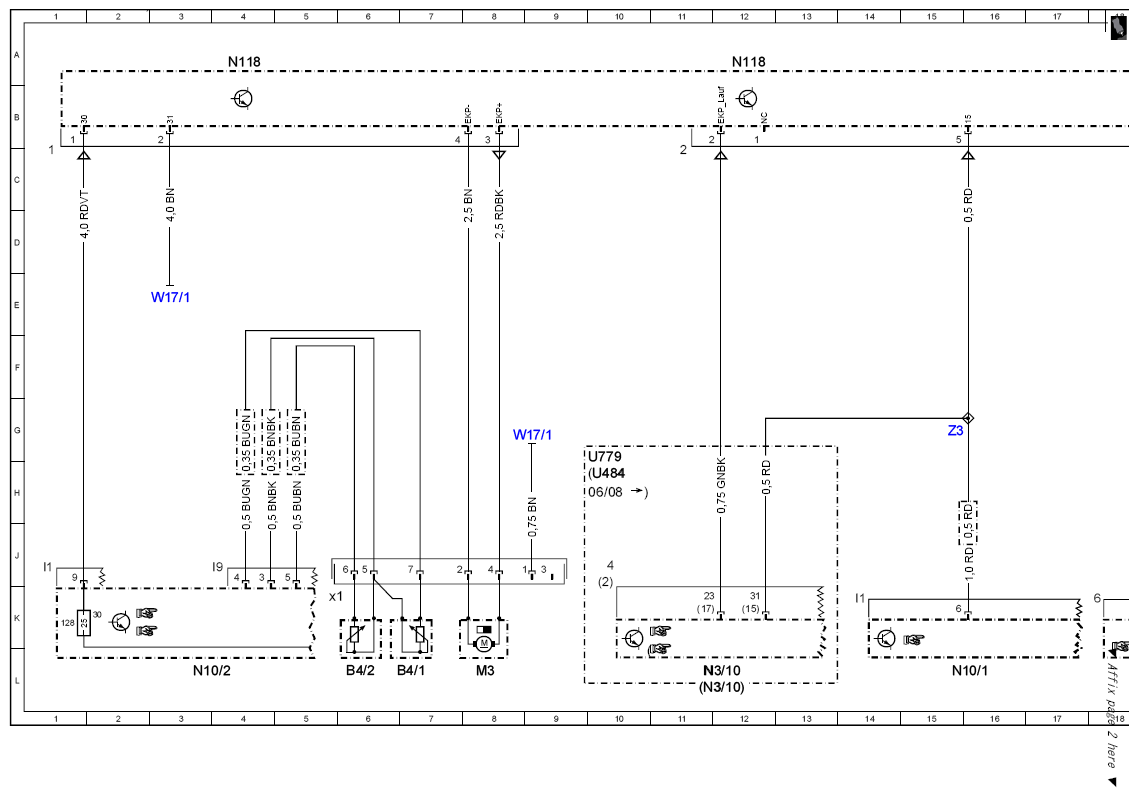

Wiring diagram for fuel pump control unit - PE47.40-U-2101-97CAA
ENGINE 275 (except 275.982) in MODEL 216 Control unit N118
ENGINE 273 in MODEL 216 as of Model Year 2009 Control unit N118
| Code: | Designation: | Position: |
|---|---|---|
| B4/1 | Left fuel level sensor | 7L |
| B4/1x1 | Left tank half fuel level sensor connector | 5K |
| B4/2 | Right fuel level sensor | 6L |
| B4/7 | Fuel pressure sensor | 21L |
| CAN C | Drive train CAN | 19K |
| M3 | Fuel pump (FP) | 8L |
| N10/1 | Front SAM control unit with fuse and relay module | 15L |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f128 | Fuse 128 | 1K |
| N118 | Fuel pump control unit | 4A |
| N118 | Fuel pump control unit | 12A |
| N118 | Fuel pump control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 12L |
| N3/10 | ME-SFI [ME] control unit | 11L |
| U484 | Valid for M273 ME | 10H |
| U779 | Valid for engine 275 | 10H |
| W17/1 | Ground (left rear seat) | 3E |
| W17/1 | Ground (left rear seat) | 8G |
| X30/21 | Drive train CAN voltage distributor connector | 19L |
| Z3 | Tml. 15 connector sleeve | 15G |
