Remove/install engine from/onto front axle carrier - AR01.10-P-2510SX

ENGINES 272, 273 in MODEL 221 (except 221.08/18)

ENGINES 275 in MODEL 221

ENGINES 273, 275 in MODEL 216 (except 216.386)

Shown on engine 273.961 with code (487)

Active Body Control (ABC)

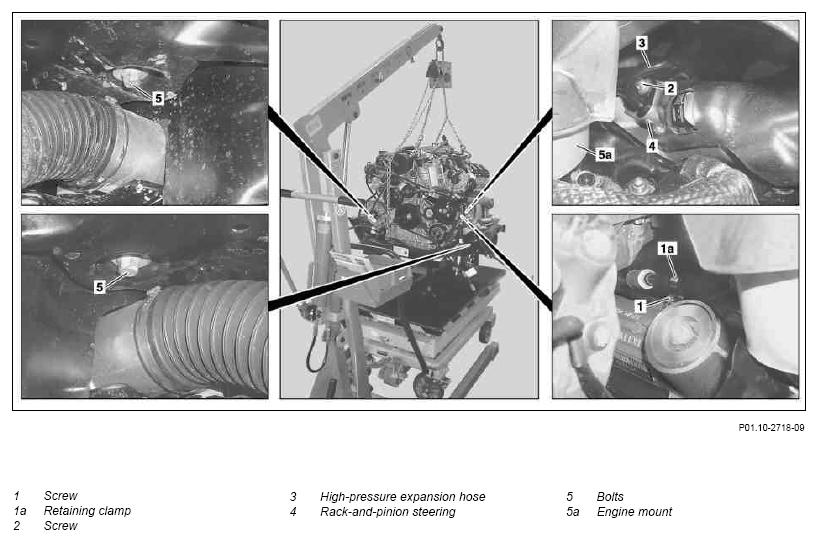

Fig 1: Identifying Engine Front Axle Carrier Remove/Install Components - Shown On Engine 273.961

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Attach engine hoist to engine lifting eyes
2	Remove tensioning strap for engine-transmission unit
3	Secure front axle carrier on portable lifting platform with tensioning strap against slipping and falling down
4	Lift engine with a suitable lifting device and engine hoist	Only raise far enough for chain on engine hoist to be lightly tensioned.
5	Remove bolt (1) of the retaining clamp (1a) from rack-and-pinion steering (4)	Model 216	*BA46.30-P-1012-01Q
		Model 221 with AIRmatic	*BA46.30-P-1010-01F
		Model 221 with code (487) Active Body Control (ABC)	*BA46.30-P-1013-01N
6	Remove bolt (2) and remove high pressure expansion hose (3)	Replace seals.
		Model 221 with AIRmatic	BA46.30-P-1012-01F
		Model 221 with code (487) Active Body Control (ABC)	*BA46.30-P-1012-01N
		Model 216	*BA46.30-P-1011-01Q
7	Remove bolts (5) from engine mounts (5a)	Model 216	*BA22.10-P-1001-03C
7	Remove bolts (5) from engine mounts (5a)	Model 221	*BA22.10-P-1001-03D
8	Lift off engine/transmission unit from front axle carrier	Ensure when lifting that engine oil pan is not damaged. Ensure that engine mount (5a) is seated correctly in catches on the front axle carrier.
9	Install in the reverse order

POWER STEERING PUMP

Number	Designation		Model 216 with engine 273 with code 487	Model 216 with engine 275
BA46.30-P-1011-01Q	Bolt, high pressure line to rack-and-pinion steering	Nm	18	18
BA46.30-P-1012-01Q	Clamp/bracket of high-pressure expansion hose to rack-and-pinion steering	Nm	10	10

POWER STEERING PUMP

Number	Designation		Model 221 with code 487
BA46.30-P-1012-01N	Bolt, high pressure line to power steering	Nm	20
BA46.30-P-1013-01N	Bolt, high-pressure expansion hose bracket to rack-and-pinion steering	Nm	10

POWER STEERING PUMP

Number	Designation		Model 221 without code 487
BA46.30-P-1010-01F	Bolt, high-pressure expansion hose bracket to rack-and-pinion steering	Nm	10
BA46.30-P-1012-01F	Bolt, high pressure line to power steering	Nm	20

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Model 221.02/05/07/095/12/15/17/195
BA22.10-P-1001-03D	Bolt, front engine mount to front axle carrier	Nm	35

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Model 216.371/373/374/376/377/379
BA22.10-P-1001-03C	Bolt, front engine mount to front axle carrier	Nm	35
