Remove/install low temperature water circuit radiator - AR09.41-P-6935MM

ENGINES 157, 278 in MODEL 216, 221

Shown on engine 278

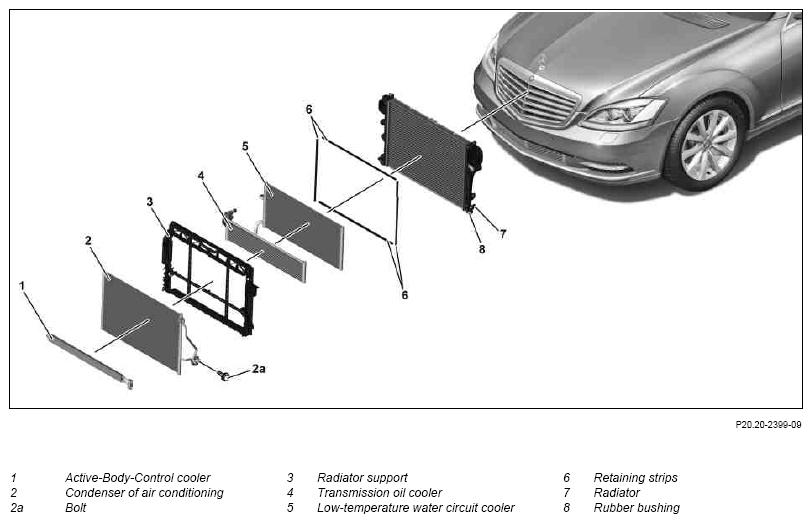

Fig 1: Identifying Low Temperature Water Radiator Remove/Install Components - Shown On Engine 278

Courtesy of MERCEDES-BENZ USA

	Remove/install
		Cooler for low-temperature water circuit (5), transmission cooler (4), condenser for the A/C (2) and cooler (7) create a unit and can therefore only be removed together.
1	Remove radiator for low temperature water circuit (5)	See "Remove/install cooler (7)".	AR20.20-P-3865MMB
2	Install in the reverse order
