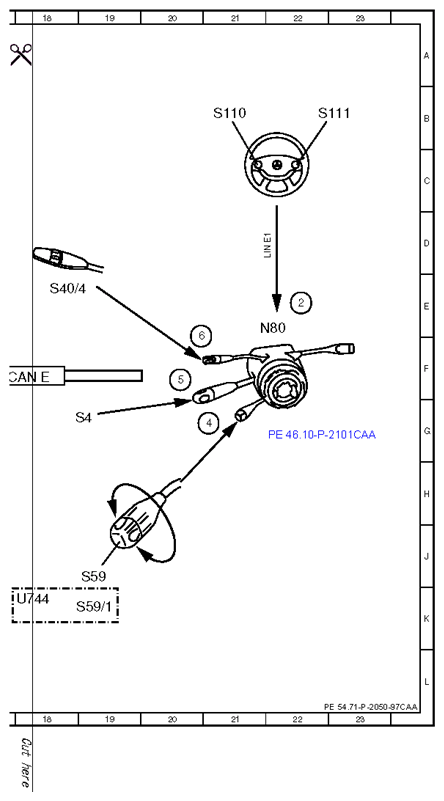

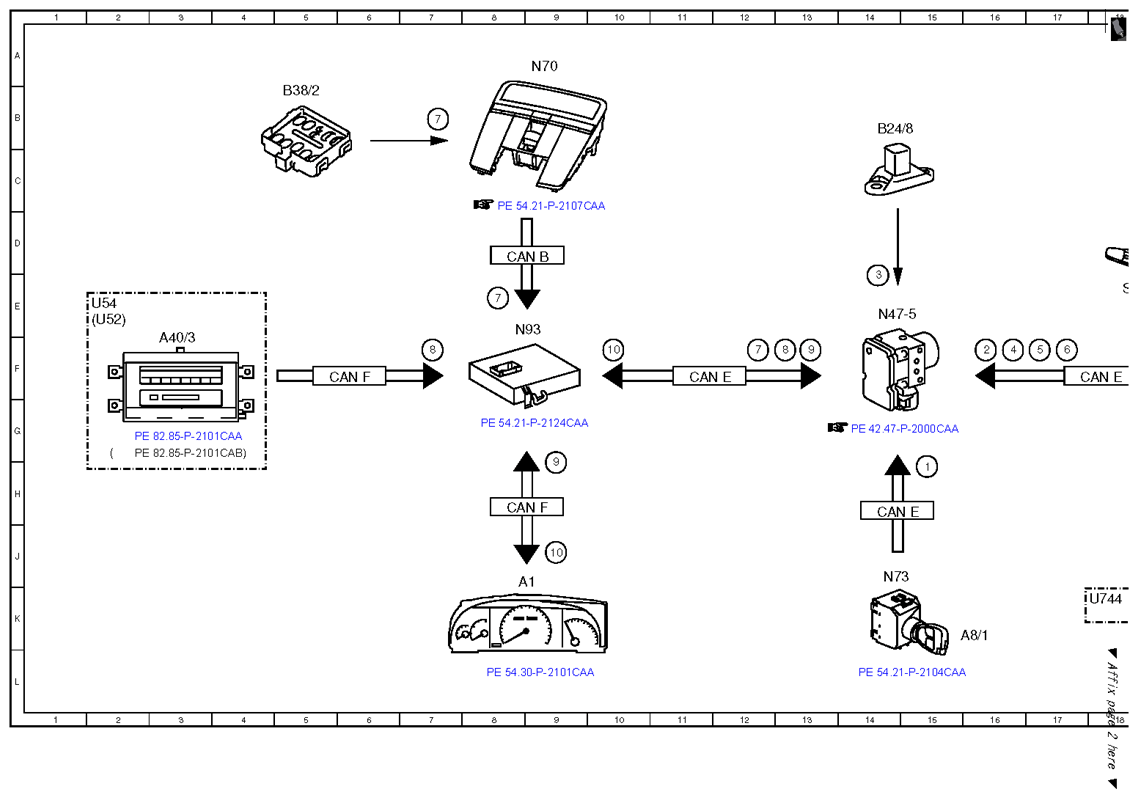

Electrical function schematic for attention assist - PE54.71-P-2050-97CAA
MODEL 216.3 as of model year 2011 /YoM 10 model refinement package
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 15H |
| 10 | Warning message issue, request | 9J |
| 10 | Warning message issue, request | 10F |
| 2 | Multifunction steering wheel button group, signal | 16F |
| 2 | Multifunction steering wheel button group, signal | 22E |
| 3 | Steering angle, signal | 14E |
| 4 | Steering column adjustment switch, status | 16F |
| 4 | Steering column adjustment switch, status | 20G |
| 5 | Combination switch, status | 17F |
| 5 | Combination switch, status | 20F |
| 6 | Cruise control, request | 21E |
| 6 | Cruise control, request | 17F |
| 7 | Rain/light sensor, status | 8E |
| 7 | Rain/light sensor, status | 7B |
| 7 | Rain/light sensor, status | 12F |
| 8 | Audio operation, status | 13F |
| 8 | Audio operation, status | 7F |
| 9 | Time, signal | 9H |
| 9 | Time, signal | 13F |
| A1 | Instrument cluster | 8J |
| A40/3 | COMAND control unit | 3F |
| A8/1 | Transmitter key | 16K |
| B24/8 | Attention assist sensor | 14B |
| B38/2 | Rain/light sensor | 5B |
| CAN B | Interior CAN | 8D |
| CAN E | Chassis CAN | 11F |
| CAN E | Chassis CAN | 18F |
| CAN E | Chassis CAN | 14H |
| CAN F | Central CAN | 8H |
| CAN F | Central CAN | 6F |
| LIN E1 | Steering LIN | 21D |
| N47-5 | ESP control unit | 14E |
| N70 | Overhead control panel control unit | 9A |
| N73 | EIS [EZS] control unit | 14J |
| N80 | Steering column module | 22E |
| N93 | Central gateway control unit | 8E |
| S110 | Left multifunction steering wheel button group | 21B |
| S111 | Right multifunction steering wheel button group | 22B |
| S4 | Combination switch | 19G |
| S40/4 | CC [TPM] switch | 18E |
| S59 | Steering column adjustment switch | 19J |
| S59/1 | Steering column adjustment/steering wheel heater switch | 19K |
| U52 | Valid for {{Japan}} | 2E |
| U54 | Valid for all except {{Japan}} | 2E |
| U744 | Valid for steering wheel heater | 18K |
