Wiring diagram of signal system - PE54.35-U-2000-97CAA

Code:	Designation:	Position:
H2	Left fanfare horn	2L
H2/1	Right fanfare horn	4L
N10/1	Front SAM control unit with fuse and relay module	3A
N10/1f52b	Fuse 52B	3C
N10/1kF	Fanfare horn relay	4A
W3/1	Ground (right front wheelhouse)	5G
W3/2	Ground (left front wheelhouse)	2G

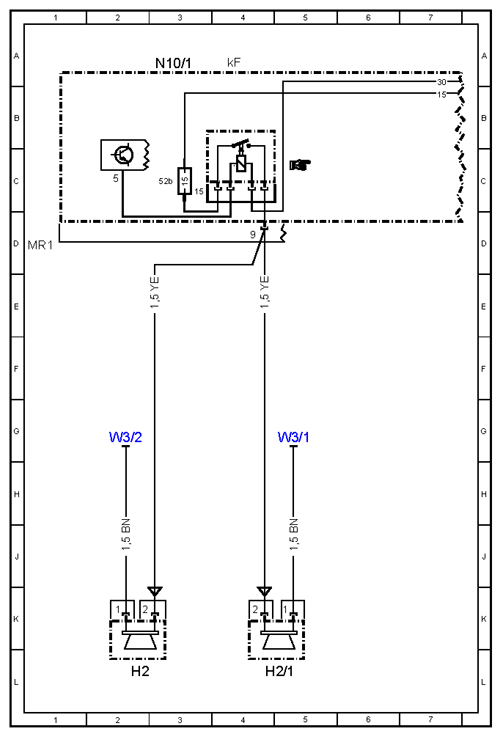

Fig 1: Signal System - Wiring Diagram

Courtesy of MERCEDES-BENZ USA
