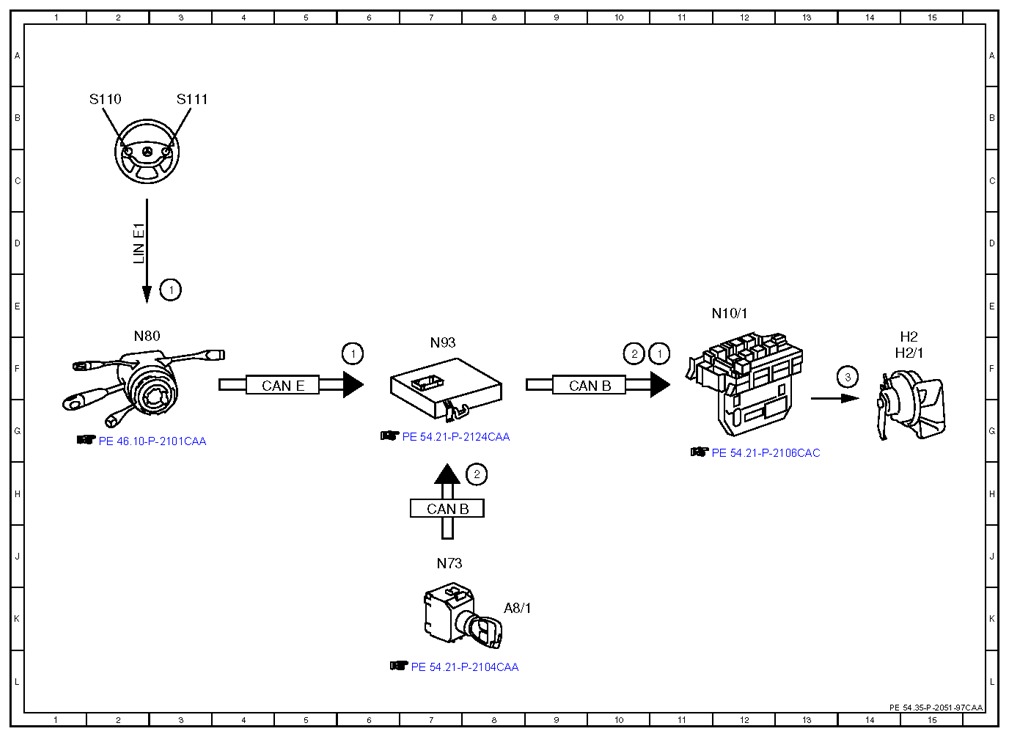

Electrical function schematic, fanfare horns - PE54.35-P-2051-97CAA
MODEL 216.3 as of model year 09/YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Fanfare horns, request | 3E |
| 1 | Fanfare horns, request | 6F |
| 1 | Fanfare horns, request | 11F |
| 2 | Circuit 15, status | 10F |
| 2 | Circuit 15, status | 8H |
| 3 | Fanfare horns, actuation | 14F |
| A8/1 | Transmitter key | 8K |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 7H |
| CAN E | Chassis CAN | 5F |
| H2 | Left fanfare horn | 15E |
| H2/1 | Right fanfare horn | 15F |
| LIN E1 | Steering LIN | 2D |
| N10/1 | Front SAM control unit with fuse and relay module | 12E |
| N73 | EIS [EZS] control unit | 7J |
| N80 | Steering column module | 3F |
| N93 | Central gateway control unit | 7F |
| S110 | Left multifunction steering wheel button group | 2B |
| S111 | Right multifunction steering wheel button group | 3B |
