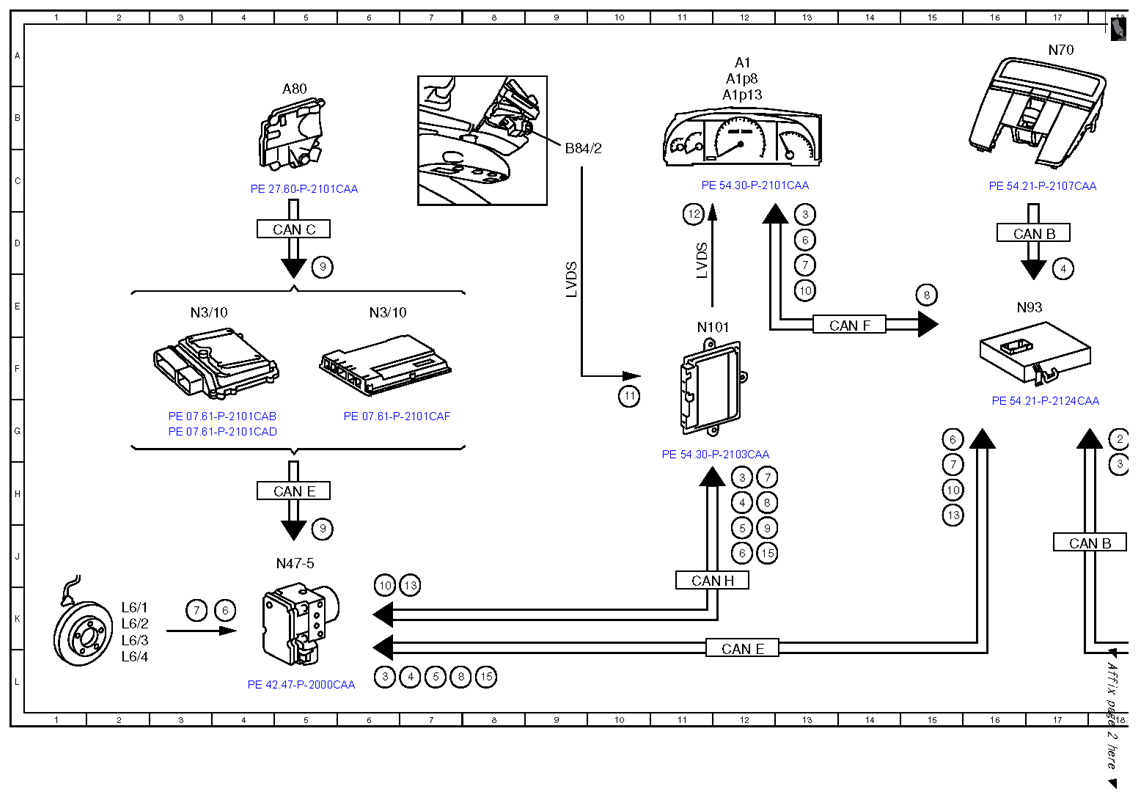

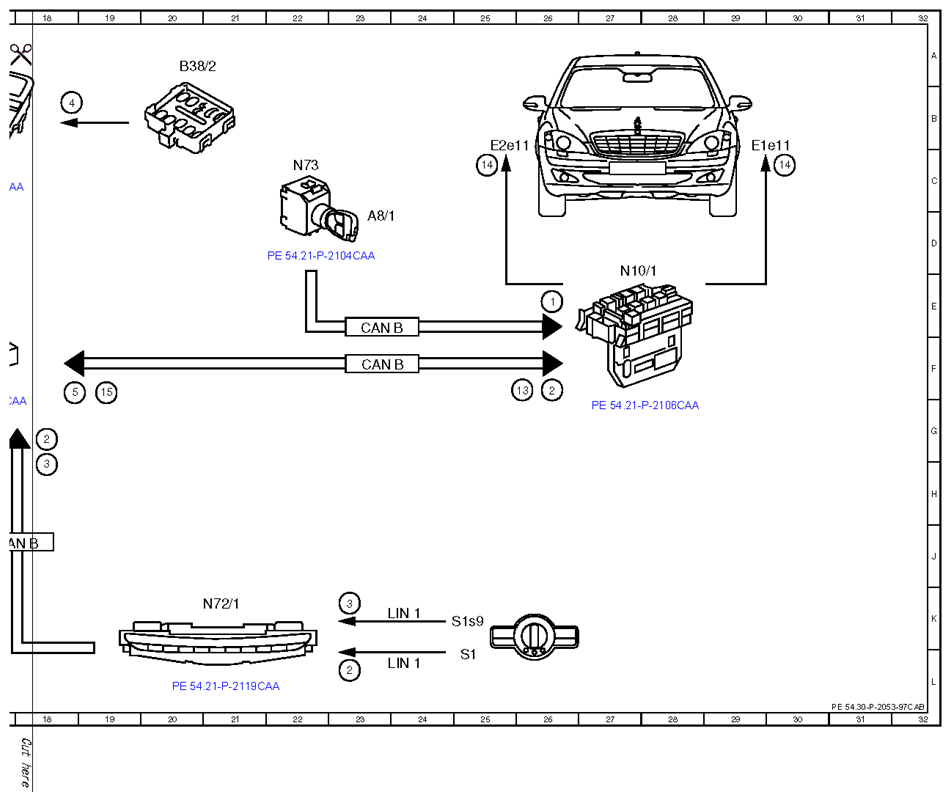

Electrical function schematic for night view assist - PE54.30-P-2053-97CAB
MODEL 216.3 up to 31.5.09 with CODE (610) Night vision assist as of Model Year 2009 /modification year 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 26E |
| 10 | Night View Assist status | 6K |
| 10 | Night View Assist status | 15H |
| 10 | Night View Assist status | 13E |
| 11 | Camera image, signal | 10F |
| 12 | Night View Assist display, actuation | 11D |
| 13 | Infrared lamp, request | 7K |
| 13 | Infrared lamp, request | 15H |
| 13 | Infrared lamp, request | 26F |
| 14 | Infrared lamp, actuation | 25C |
| 14 | Infrared lamp, actuation | 30C |
| 15 | Infrared lamp, status | 12J |
| 15 | Infrared lamp, status | 8L |
| 15 | Infrared lamp, status | 19F |
| 2 | Rotary light switch, status | 26F |
| 2 | Rotary light switch, status | 18G |
| 2 | Rotary light switch, status | 23L |
| 3 | Night View Assist button status | 23K |
| 3 | Night View Assist button status | 12H |
| 3 | Night View Assist button status | 13D |
| 3 | Night View Assist button status | 12H |
| 3 | Night View Assist button status | 18G |
| 4 | Rain/light sensor, status | 17D |
| 4 | Rain/light sensor, status | 18B |
| 4 | Rain/light sensor, status | 12H |
| 4 | Rain/light sensor, status | 7L |
| 5 | Low beams, actuation | 12J |
| 5 | Low beams, actuation | 7J |
| 5 | Low beams, actuation | 3K |
| 6 | Wheel speed, signal | 15G |
| 6 | Wheel speed, signal | 4K |
| 6 | Wheel speed, signal | 13D |
| 6 | Wheel speed, signal | 12J |
| 7 | Wheel rotation direction, signal | 13D |
| 7 | Wheel rotation direction, signal | 15H |
| 7 | Wheel rotation direction, signal | 12H |
| 7 | Wheel rotation direction, signal | 3K |
| 8 | Vehicle speed, signal | 15E |
| 8 | Vehicle speed, signal | 12H |
| 8 | Vehicle speed, signal | 7L |
| 9 | Selector lever position, status | 12J |
| 9 | Selector lever position, status | 5D |
| 9 | Selector lever position, status | 5J |
| A1 | Instrument cluster | 12A |
| A1p13 | Multifunction display | 12B |
| A1p8 | Electronic speedometer | 12A |
| A8/1 | Transmitter key | 23D |
| A80 | Intelligent servo module for DIRECT SELECT | 5B |
| B38/2 | Rain/light sensor | 20A |
| B84/2 | Night vision assist camera | 9C |
| CAN B | Interior CAN | 17D |
| CAN B | Interior CAN | 17J |
| CAN B | Interior CAN | 24E |
| CAN B | Interior CAN | 24F |
| CAN C | Drive train CAN | 5D |
| CAN E | Chassis CAN | 5H |
| CAN E | Chassis CAN | 12L |
| CAN F | Central CAN | 14E |
| CAN H | Vehicle dynamics CAN | 11J |
| E1e11 | Left infrared lamp | 29C |
| E2e11 | Right infrared lamp | 25C |
| L6/1 | Left front rpm sensor | 2K |
| L6/2 | Right front rpm sensor | 2K |
| L6/3 | Left rear rpm sensor | 2K |
| L6/4 | right rear rpm sensor | 2L |
| LIN 1 | Instrument panel LIN | 23L |
| LIN 1 | Instrument panel LIN | 23K |
| LVDS | Low voltage differential signal | 11D |
| LVDS | Low voltage differential signal | 9E |
| N10/1 | Front SAM control unit with fuse and relay module | 27E |
| N101 | Night vision assist control unit | 11E |
| N3/10 | ME-SFI [ME] control unit | 3E |
| N3/10 | ME-SFI [ME] control unit | 6E |
| N47-5 | ESP control unit | 5J |
| N70 | Overhead control panel control unit | 17A |
| N72/1 | Upper control panel control unit | 21K |
| N73 | EIS [EZS] control unit | 22C |
| N93 | Central gateway control unit | 16E |
| S1 | Rotary light switch | 25L |
| S1s9 | Night vision assist button | 25K |
