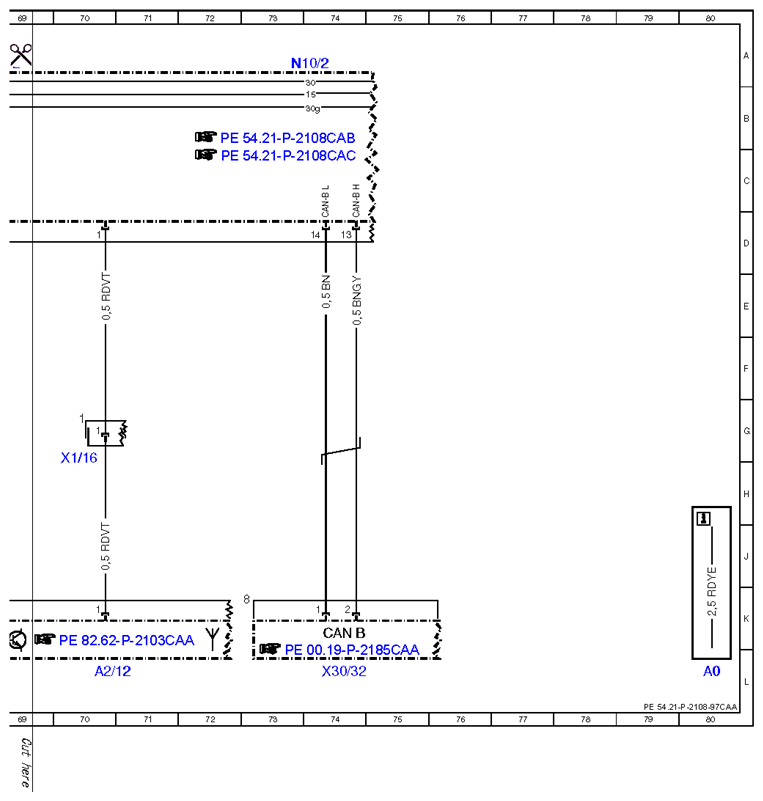

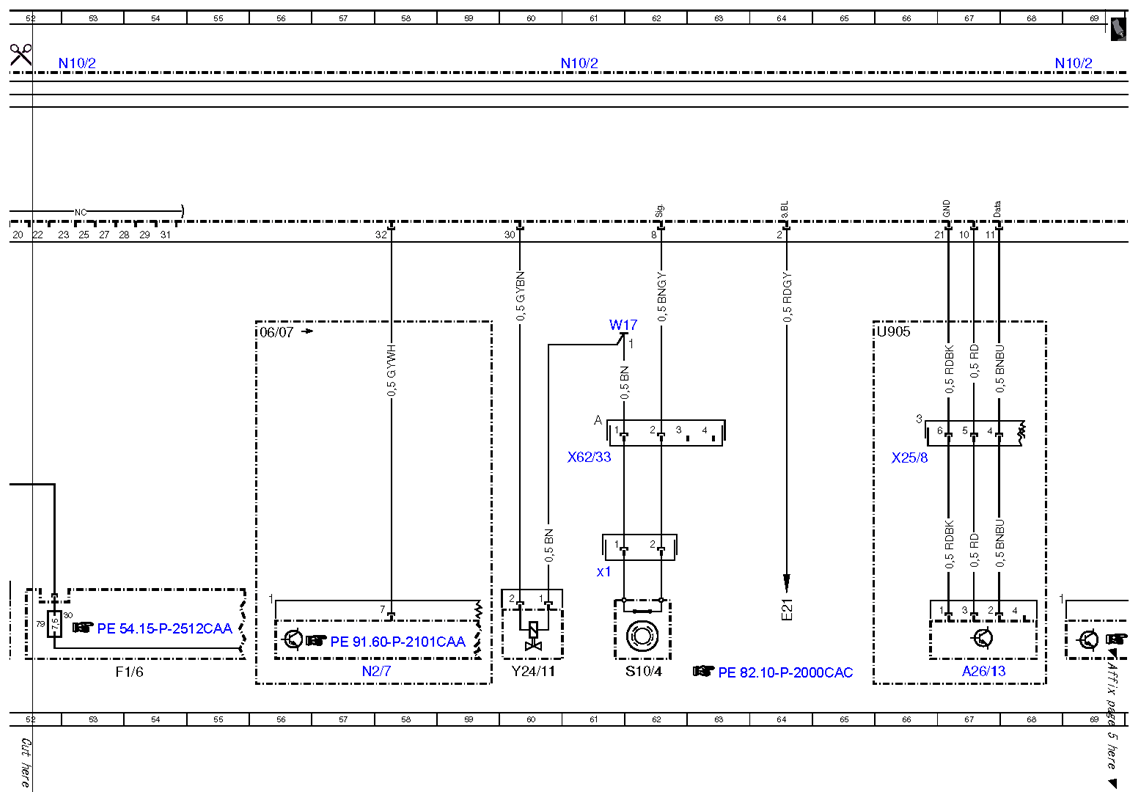

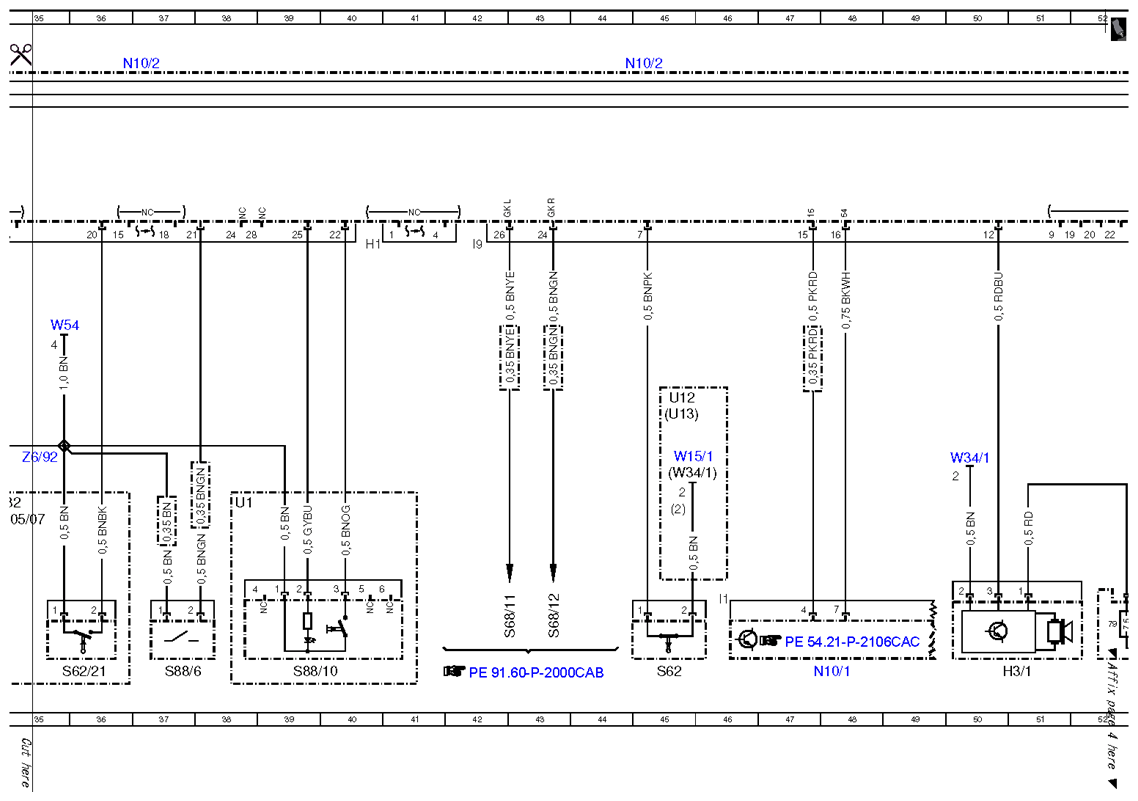

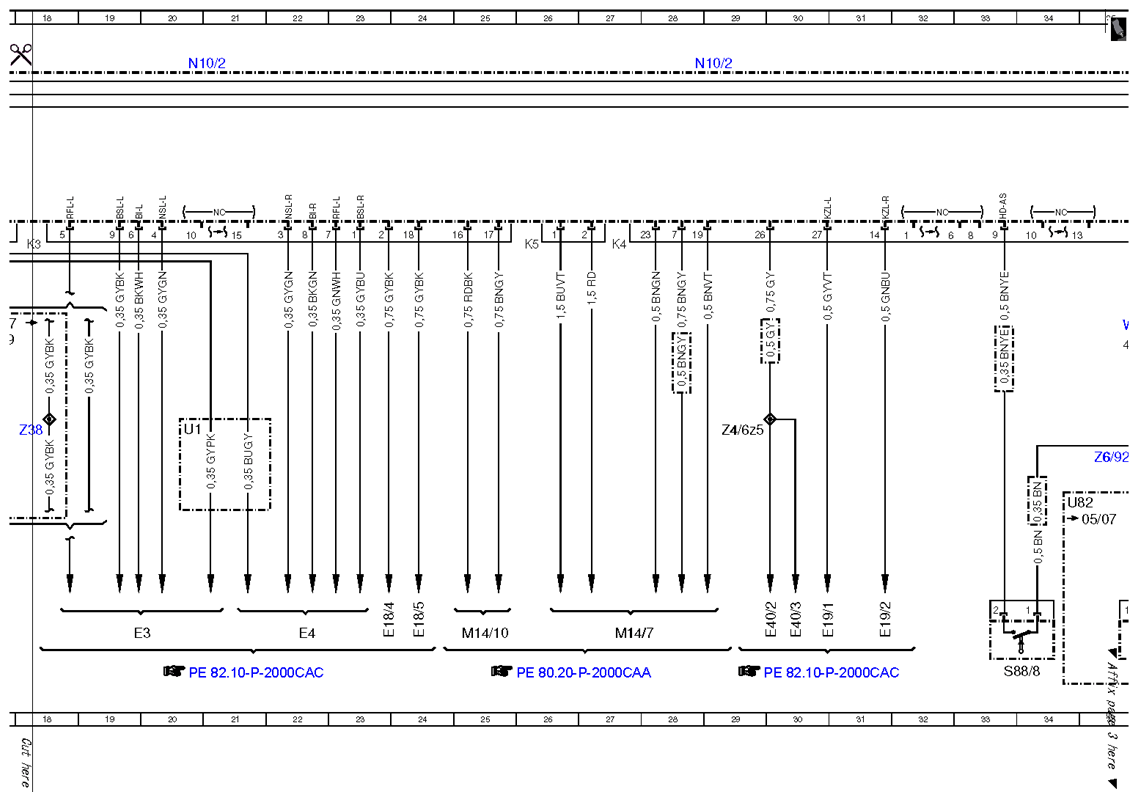

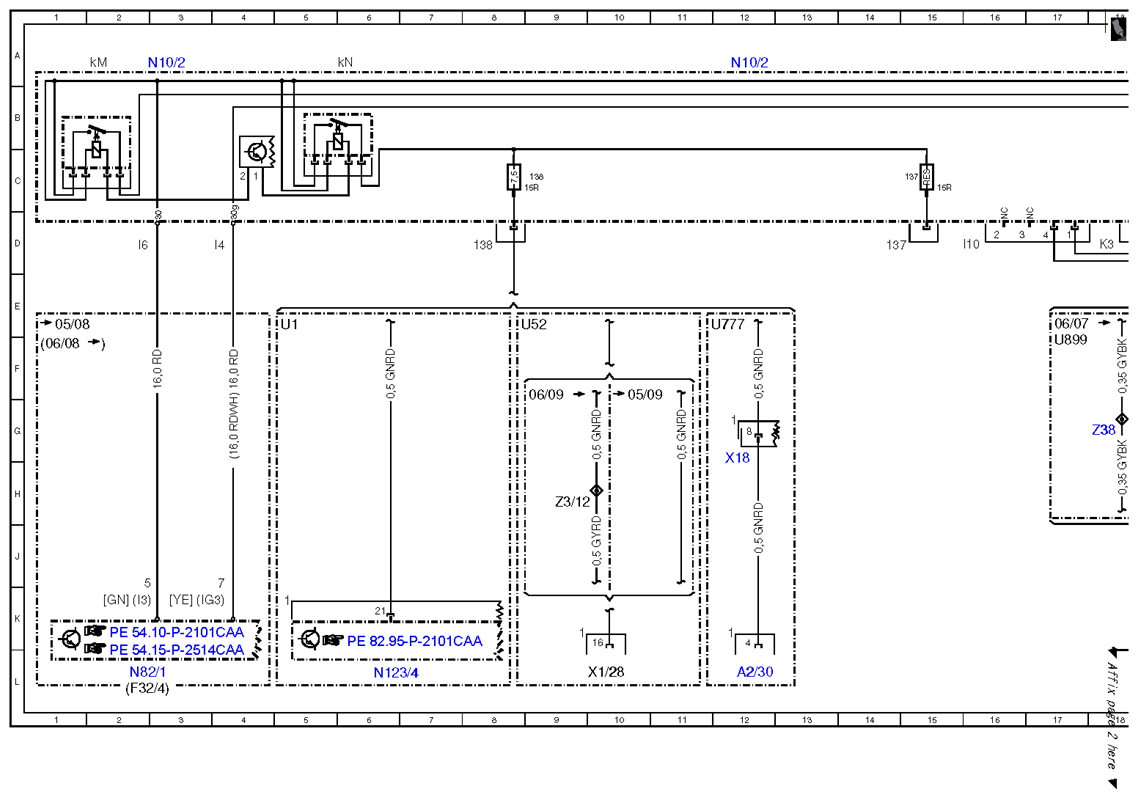

Wiring diagram/rear SAM control unit with fuse and relay module (/)N10/2 - PE54.21-P-2108-97CAA
MODEL 216.3 Sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| A2/12 | Rear window antenna amplifier module | 70L |
| A2/30 | Navigation processor | 12L |
| A26/13 | Ultrasonic echo sounder sensor | 67L |
| CAN B | Interior CAN | 74K |
| E18/4 | Right luggage compartment lamp | 24K |
| E18/5 | Left luggage compartment lamp | 24K |
| E19/1 | Left license plate lamp | 31K |
| E19/2 | Right license plate lamp | 31K |
| E21 | Center high-mounted stop lamp | 64K |
| E3 | Left taillamp | 19K |
| E4 | Right taillamp | 22K |
| E40/2 | Left trunk lid ambient and warning lamp | 30K |
| E40/3 | Right trunk lid ambient and warning lamp | 30K |
| F1/6 | Right instrument panel fuse box | 54L |
| F1/6f79 | Fuse 79 | 52K |
| F32/4 | Interior prefuse box | 2L |
| H3/1 | Alarm signal siren | 51L |
| M14/10 | Fuel filler flap CL [ZV] motor | 25K |
| M14/7 | Trunk lid CL [ZV] motor | 27K |
| N10/1 | Front SAM control unit with fuse and relay module | 48L |
| N10/2 | Rear SAM control unit with fuse and relay module | 3A |
| N10/2 | Rear SAM control unit with fuse and relay module | 12A |
| N10/2 | Rear SAM control unit with fuse and relay module | 20A |
| N10/2 | Rear SAM control unit with fuse and relay module | 29A |
| N10/2 | Rear SAM control unit with fuse and relay module | 37A |
| N10/2 | Rear SAM control unit with fuse and relay module | 45A |
| N10/2 | Rear SAM control unit with fuse and relay module | 61A |
| N10/2 | Rear SAM control unit with fuse and relay module | 69A |
| N10/2 | Rear SAM control unit with fuse and relay module | 73A |
| N10/2 | Rear SAM control unit with fuse and relay module | 53A |
| N10/2f137 | Fuse 137 | 15C |
| N10/2f138 | Fuse 138 | 9C |
| N10/2kM | Circuit 15 (2)/spare 1 relay (changeover contact) | 2A |
| N10/2kN | Circuit 15R relay | 6A |
| N123/4 | Emergency call system control unit | 6L |
| N2/7 | Restraint systems control unit | 57L |
| N82/1 | Vehicle power supply control unit | 2L |
| S10/4 | Right rear brake pad contact sensor | 62L |
| S10/4x1 | Right rear brake pad contact sensor connector | 61J |
| S62 | ATA [EDW] hood switch | 45L |
| S62/21 | Trunk lid KEYLESS-GO button | 36L |
| S68/11 | Left rear seat belt buckle switch | 43K |
| S68/12 | Right rear seat belt buckle switch | 43K |
| S88/10 | Trunk lid emergency release switch | 39L |
| S88/6 | Trunk lid contact switch | 37L |
| S88/8 | Trunk lid external operation switch | 33L |
| U1 | Valid for {{USA}} | 5E |
| U1 | Valid for {{USA}} | 20G |
| U1 | Valid for {{USA}} | 38H |
| U12 | Valid for left-hand drive vehicles | 45G |
| U13 | Valid for right-hand drive vehicles | 45G |
| U52 | Valid for {{Japan}} | 8E |
| U777 | Valid for navigation | 11E |
| U82 | Valid for KEYLESS GO | 34H |
| U899 | Valid for backup camera | 17F |
| U905 | Valid for interior protection | 66E |
| W15/1 | Ground (right footwell) | 45G |
| W17 | Ground (right rear seat) | 61E |
| W34/1 | Ground (electronics - left footwell) | 50H |
| W34/1 | Ground (electronics - left footwell) | 45H |
| W54 | Ground (right rear wheelhouse) | 35E |
| X1/16 | Roof antenna connector | 70H |
| X1/28 | TV/tuner connector | 10L |
| X18 | Cockpit wiring harness and FFS [RBA] connector | 12H |
| X25/8 | Overhead control panel and FFS [RBA] connector | 66H |
| X30/32 | Left interior CAN/FFS [RBA] voltage distributor connector | 74L |
| X62/33 | Right rear axle multiple circuit junction connector | 61G |
| Y24/11 | Rear head restraints valve block | 60L |
| Z3/12 | Circuit 15R connector sleeve | 9H |
| Z38 | Backup lamp connector sleeve | 18G |
| Z4/6z5 | Luggage compartment lamp circuit 30 connector sleeve | 29G |
| Z6/92 | Trunk lid ground connector sleeve | 35G |
