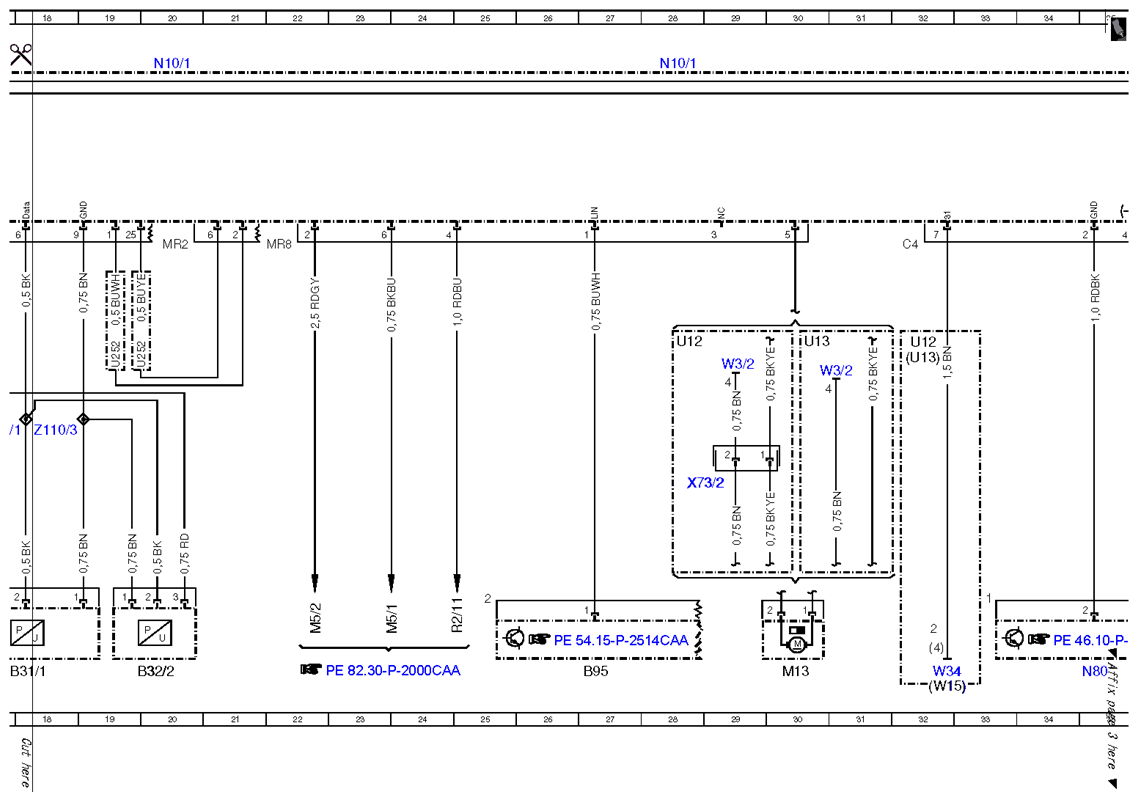

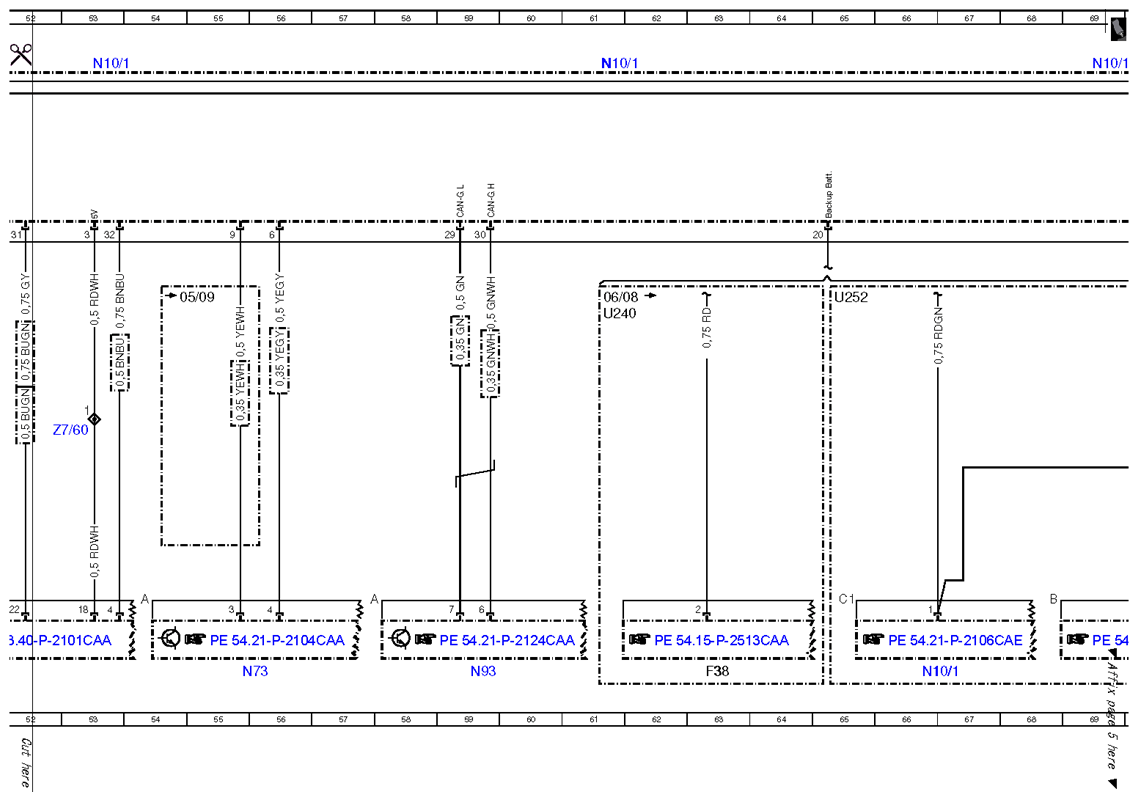

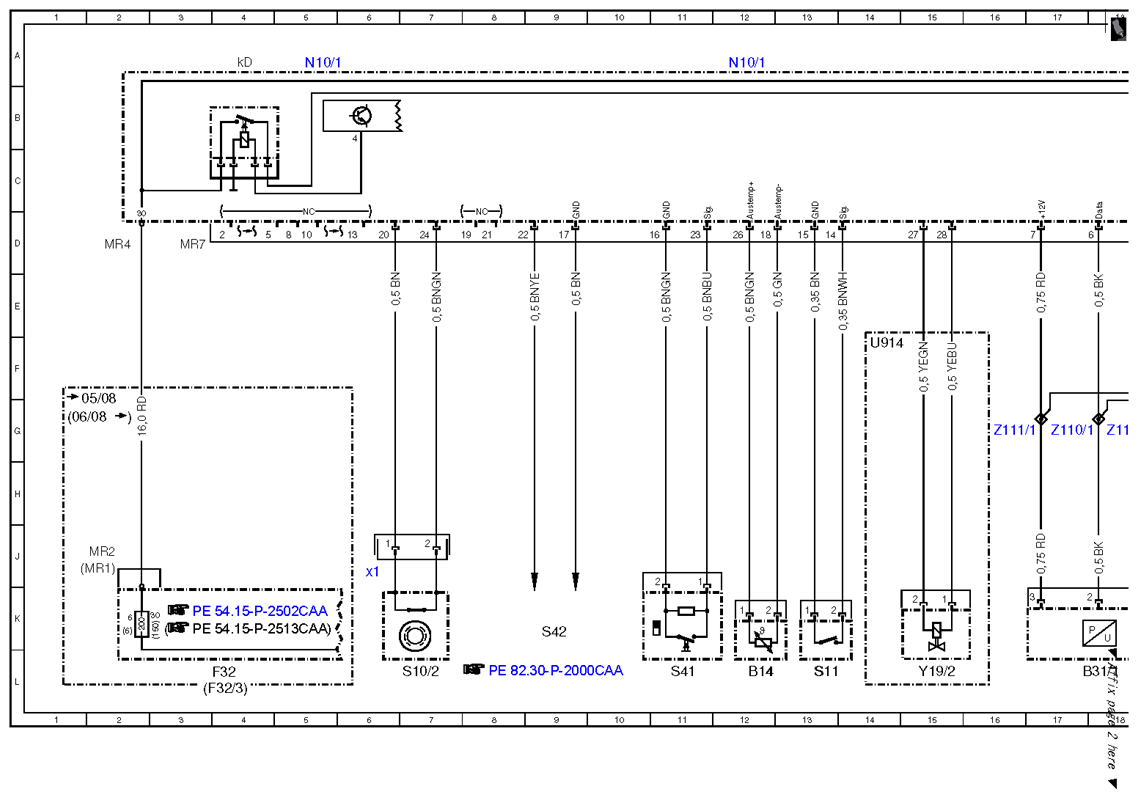

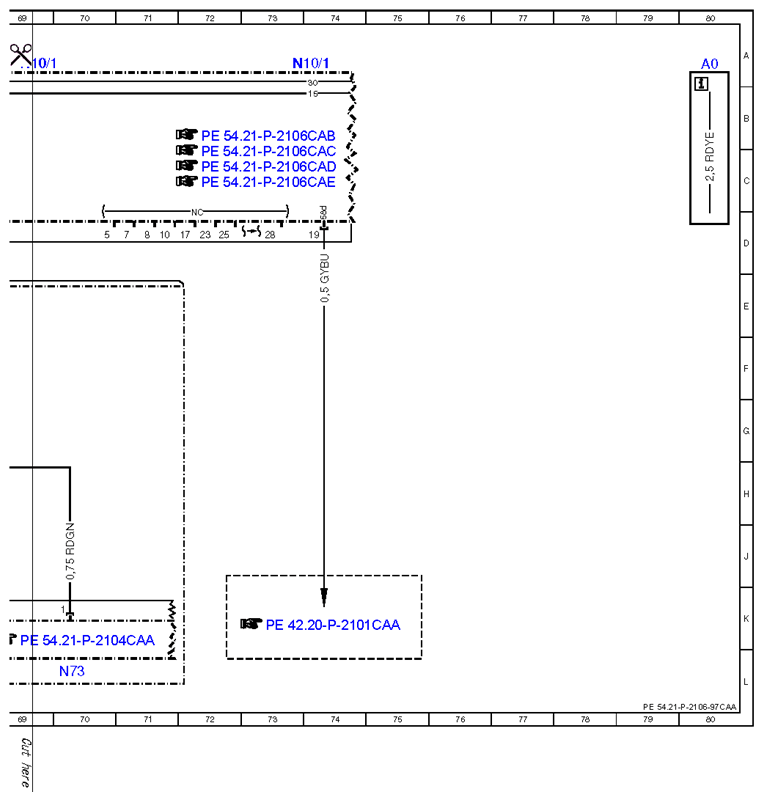

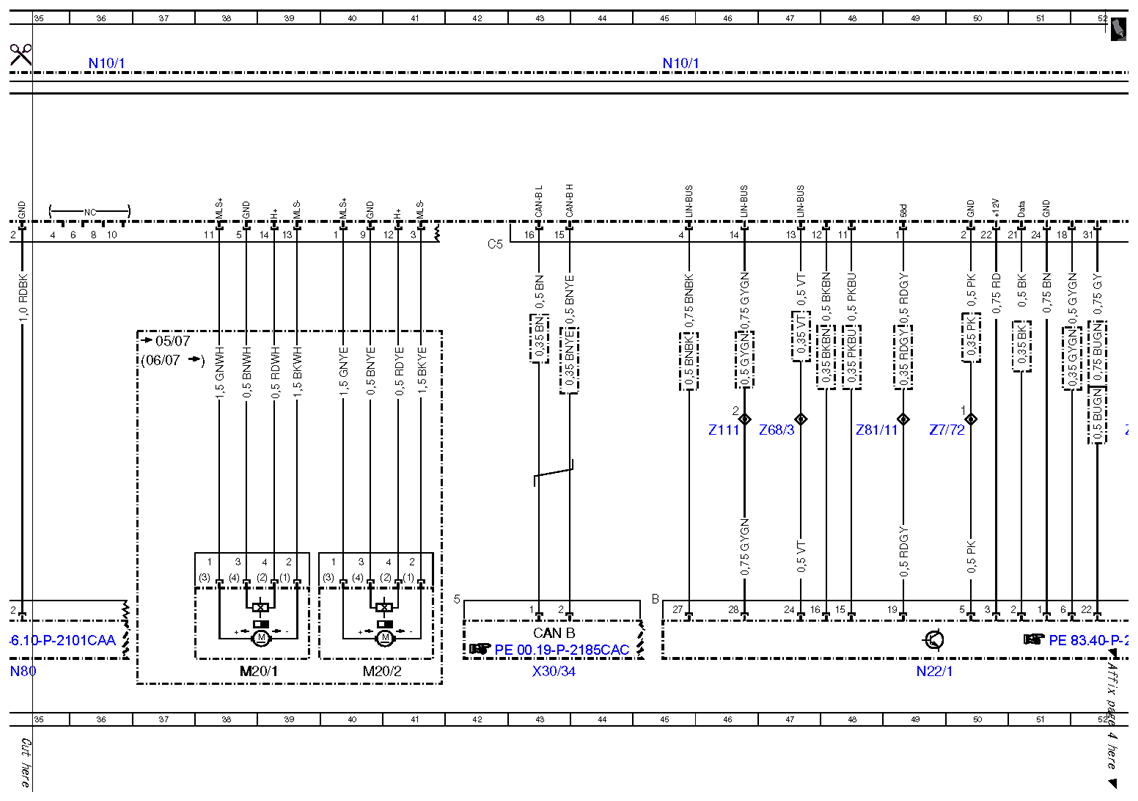

Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-97CAA
MODEL 216.3 Sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80A |
| B14 | Outside temperature display temperature sensor | 12L |
| B31/1 | AAC [KLA] multifunction sensor | 18L |
| B32/2 | AAC [KLA] 4-way sun sensor | 20L |
| B95 | Battery sensor | 27L |
| CAN B | Interior CAN | 43K |
| F32 | Front prefuse | 4L |
| F32/3 | Engine compartment prefuse box | 4L |
| F32/3f6 | Fuse 6 | 2K |
| F32f6 | Fuse 6 | 2K |
| F38 | Backup battery fuse | 63L |
| M13 | Coolant circulation pump | 30L |
| M20/1 | Steering column in/out motor | 38L |
| M20/2 | Steering column up/down motor | 40L |
| M5/1 | Windshield washer fluid pump | 24K |
| M5/2 | HCS [SRA] pump | 22K |
| N10/1 | Front SAM control unit with fuse and relay module | 5A |
| N10/1 | Front SAM control unit with fuse and relay module | 12A |
| N10/1 | Front SAM control unit with fuse and relay module | 28A |
| N10/1 | Front SAM control unit with fuse and relay module | 20A |
| N10/1 | Front SAM control unit with fuse and relay module | 36A |
| N10/1 | Front SAM control unit with fuse and relay module | 66L |
| N10/1 | Front SAM control unit with fuse and relay module | 53A |
| N10/1 | Front SAM control unit with fuse and relay module | 45A |
| N10/1 | Front SAM control unit with fuse and relay module | 61A |
| N10/1 | Front SAM control unit with fuse and relay module | 69A |
| N10/1 | Front SAM control unit with fuse and relay module | 73A |
| N10/1kD | Circuit 15 (2)/spare 1 relay (changeover contact) | 4A |
| N22/1 | AAC [KLA] control unit | 49L |
| N73 | EIS [EZS] control unit | 56L |
| N73 | EIS [EZS] control unit | 70L |
| N80 | Steering column module | 35L |
| N93 | Central gateway control unit | 59L |
| R2/11 | Washer nozzle hose heater | 25K |
| S10/2 | Right front brake pad contact sensor | 7L |
| S10/2x1 | Right front brake pad contact sensor connector | 6J |
| S11 | Brake fluid indicator switch | 13L |
| S41 | Coolant level indicator switch | 11L |
| S42 | Windshield washer fluid level indicator switch | 9K |
| U12 | Valid for left-hand drive vehicles | 28F |
| U12 | Valid for left-hand drive vehicles | 32F |
| U13 | Valid for right-hand drive vehicles | 30F |
| U13 | Valid for right-hand drive vehicles | 32F |
| U240 | Valid for all except ECO start/stop function | 61E |
| U252 | Valid for ECO start/stop function | 19F |
| U252 | Valid for ECO start/stop function | 20F |
| U252 | Valid for ECO start/stop function | 65E |
| U914 | Valid for engines using water valve | 14F |
| W15 | Power ground (electronics) | 32L |
| W3/2 | Ground (left front wheelhouse) | 30F |
| W3/2 | Ground (left front wheelhouse) | 29F |
| W34 | Ground (left footwell) | 32L |
| X30/34 | Interior CAN/cockpit voltage distributor connector | 43L |
| X73/2 | Coolant circulation pump connector | 29H |
| Y19/2 | AC water valve | 15L |
| Z110/1 | AC bus solder terminal | 17G |
| Z110/3 | AC bus solder terminal | 18G |
| Z111 | Voltage supply connector sleeve | 46G |
| Z111/1 | AC 12V solder terminal | 16G |
| Z68/3 | AC LIN bus data connector sleeve | 47G |
| Z7/60 | 5V output connector sleeve (solder connector in wiring harness) | 53G |
| Z7/72 | COC nozzles and sensors sensor ground connector sleeve | 50G |
| Z81/11 | Front passenger circuit 58d connector sleeve | 48G |
