| A91/1 |
Electrohydraulic power steering |
19L |

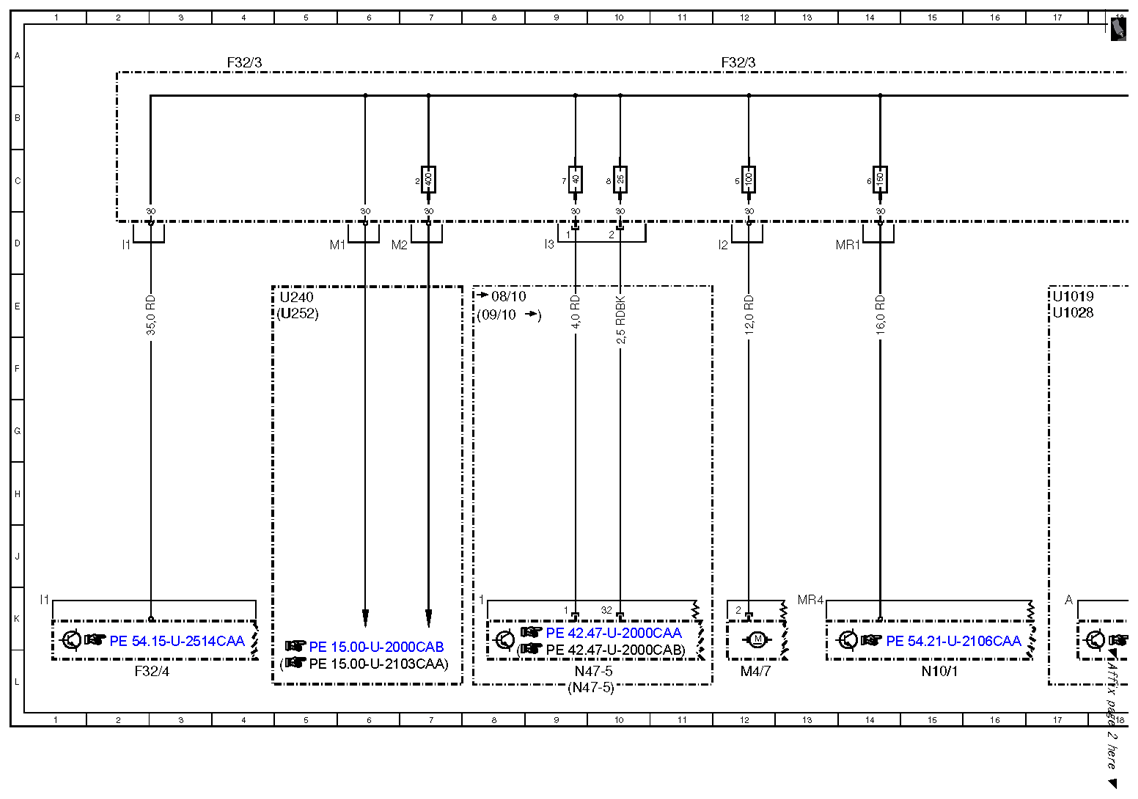

| F32/3 |
Engine compartment prefuse box |
4A |
| F32/3 |
Engine compartment prefuse box |
12A |
| F32/3f10 |
Fuse 10 |
22C |
| F32/3f2 |
Fuse 2 |
7C |
| F32/3f3 |
Fuse 3 |
19C |
| F32/3f5 |
Fuse 5 |
12C |
| F32/3f6 |
Fuse 6 |
14C |
| F32/3f7 |
Fuse 7 |
9C |
| F32/3f8 |
Fuse 8 |
10C |
| F32/3f9 |
Fuse 9 |
23C |
| F32/4 |
Interior prefuse box |
2L |

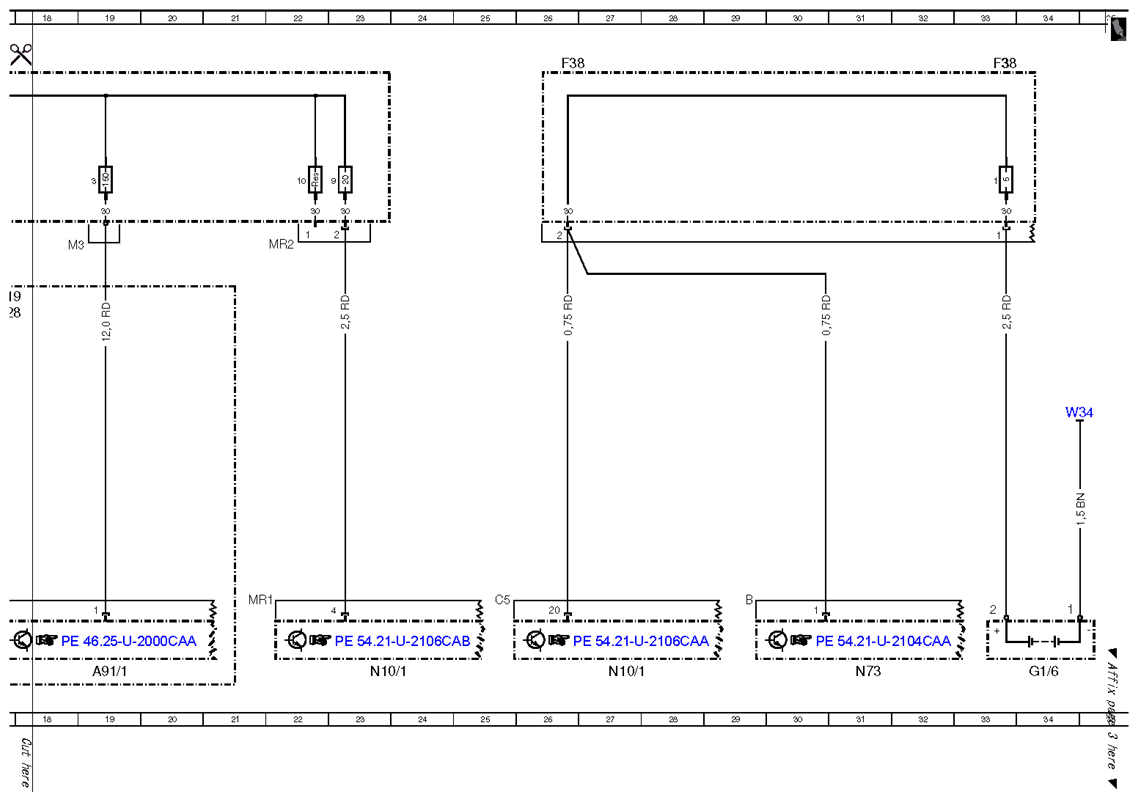

| F38 |
Backup battery fuse |
26A |
| F38 |
Backup battery fuse |
33A |
| F38f1 |
Fuse 1 |
33C |
| G1/6 |
3rd battery |
34L |
| M4/7 |
Engine and AC electric suction fan with integrated control |
12L |
| N10/1 |
Front SAM control unit with fuse and relay module |
15L |
| N10/1 |
Front SAM control unit with fuse and relay module |
23L |
| N10/1 |
Front SAM control unit with fuse and relay module |
27L |
| N47-5 |
ESP control unit |
9L |
| N47-5 |
ESP control unit |
9L |
| N73 |
EIS [EZS] control unit |
31L |
| U1019 |
Valid for engine 278 |
17E |
| U1028 |
Valid for engine 157 |
17E |
| U240 |
Valid for all except ECO start/stop function |
5E |
| U252 |
Valid for ECO start/stop function |
5E |

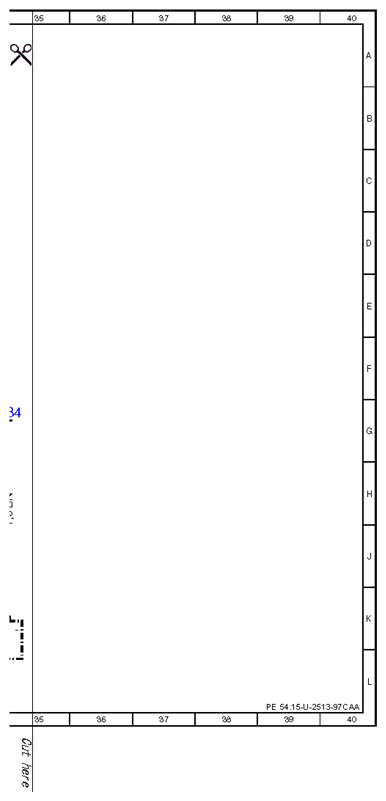

| W34 |
Ground (left footwell) |
34G |
