Wiring diagram SAM control module with front fuse and relay module (N10/1) - PE54.21-U-2106-97CAE

Code: Designation: Position:
A80 Intelligent servo module for DIRECT SELECT 51L
B12 Refrigerant pressure sensor 27L
CAN B Interior CAN 35K
CAN E Chassis CAN 62K
E13/3 Stowage compartment illumination 38L
F32 Front prefuse 3L
F32/3 Engine compartment prefuse box 3L
F32/3f6 Fuse 6 2K
F32/4 Interior prefuse box 17L
F32f6 Fuse 6 2K
M16/34 Right B-pillar air distribution actuator motor 32L
M6/6 Master wiper motor 7K
M6/6 Master wiper motor 6K
M6/7 Slave wiper motor 11K
N10/1 Front SAM control unit with fuse and relay module 4A
N10/1 Front SAM control unit with fuse and relay module 12A
N10/1 Front SAM control unit with fuse and relay module 20A
N10/1 Front SAM control unit with fuse and relay module 28A
N10/1 Front SAM control unit with fuse and relay module 36A
N10/1 Front SAM control unit with fuse and relay module 44A
N10/1 Front SAM control unit with fuse and relay module 42L
N10/1 Front SAM control unit with fuse and relay module 52A
N10/1 Front SAM control unit with fuse and relay module 60A
N10/1f41 Fuse 41 10C
N10/1f42 Fuse 42 7C
N10/1f43 Fuse 43 40C
N10/1kD Circuit 15 (2)/spare 1 relay (changeover contact) 3A
N10/1kG Circuit 15R relay 8A
N3/10 ME-SFI [ME] control unit 21L
N69/1 Left door control unit 24L
N73 EIS [EZS] control unit 47L
N82/1 Vehicle power supply control unit 13L
N82/1 Vehicle power supply control unit 58L
R3 Front cigar lighter (with ashtray illumination) 40L
R3e1 Illumination 39L
R3r1 Heating element 40L
R3x1 Front cigar lighter connector 39J
R41/1 Left side air outlet potentiometer 29L
U1019 Valid for engine 278 19F
U1028 Valid for engine 157 19F
U252 Valid for ECO start/stop function 41F
U252 Valid for ECO start/stop function 44F
U252 Valid for ECO start/stop function 53F
U252 Valid for ECO start/stop function 19F
W15/1 Ground (right footwell) 39G
W17 Ground (right rear seat) 38G
X30/30 Chassis CAN/FFS [RBA] voltage distributor connector 62L
X30/32 Left interior CAN/FFS [RBA] voltage distributor connector 35L
Z110/2 AC bus solder terminal 34G
Z111 Voltage supply connector sleeve 33G
Z7/60z2 5V output connector sleeve (solder connector in wiring harness) 28G
Z7/72z2 COC nozzles and sensors sensor ground connector sleeve 29G

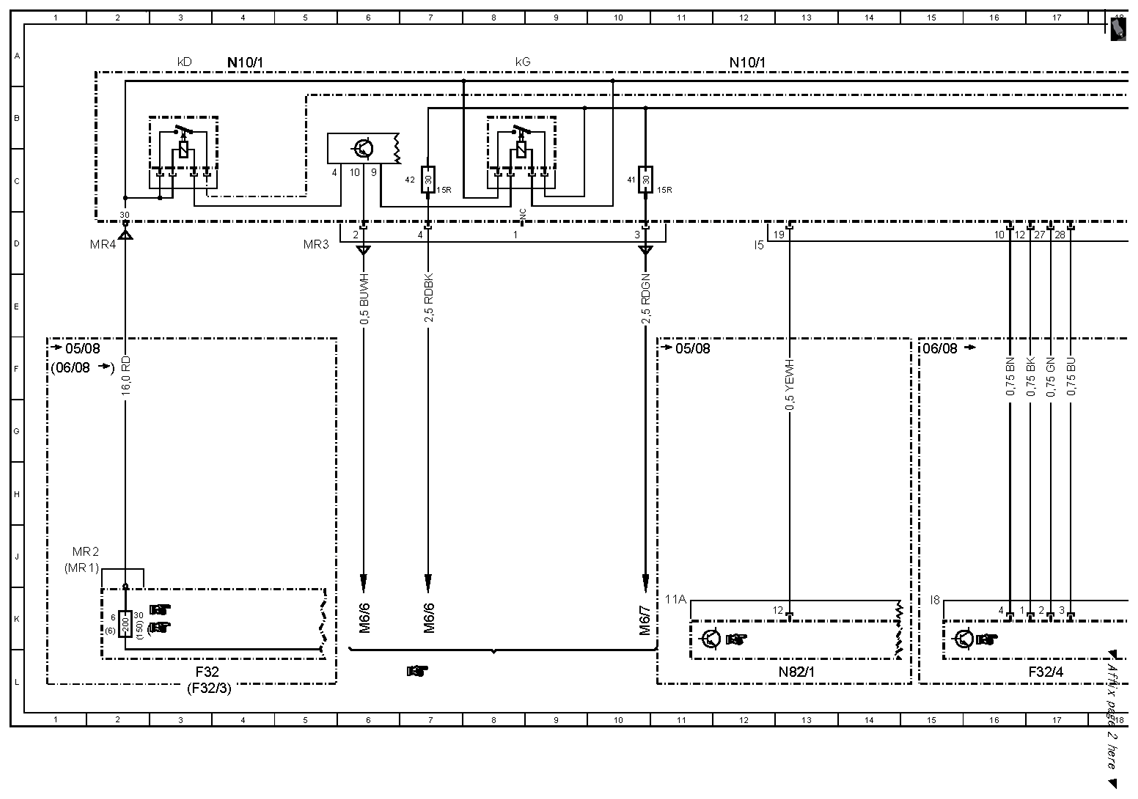

Fig 1: SAM Control Module With Front Fuse And Relay Module (N10/1) - Wiring Diagram (1 Of 4)
G10111341Courtesy of MERCEDES-BENZ USA

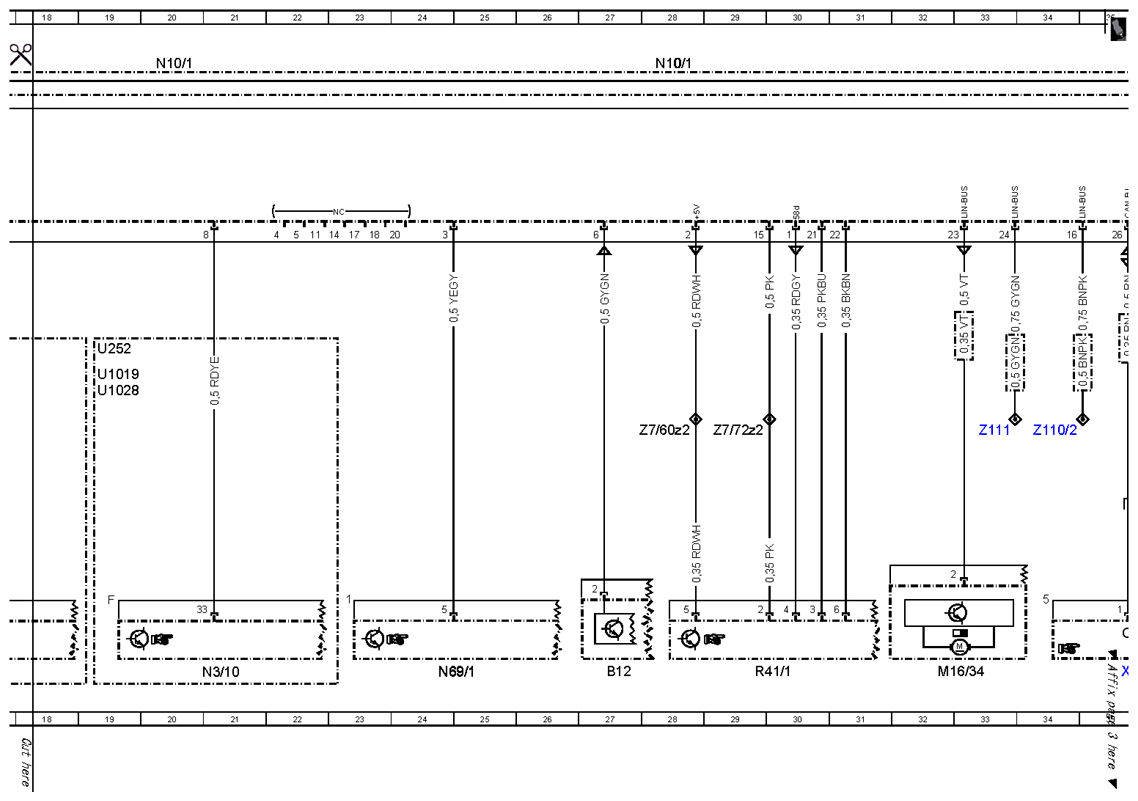

Fig 2: SAM Control Module With Front Fuse And Relay Module (N10/1) - Wiring Diagram (2 Of 4)
G10111342Courtesy of MERCEDES-BENZ USA

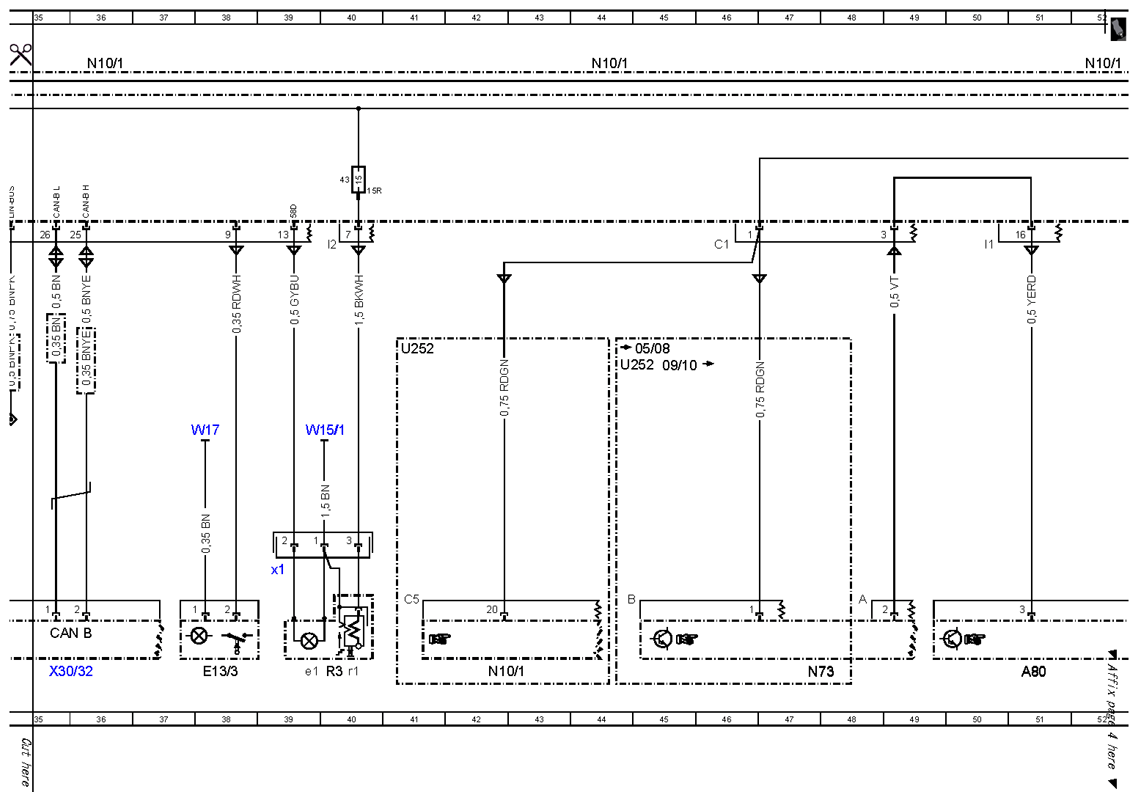

Fig 3: SAM Control Module With Front Fuse And Relay Module (N10/1) - Wiring Diagram (3 Of 4)
G10111343Courtesy of MERCEDES-BENZ USA

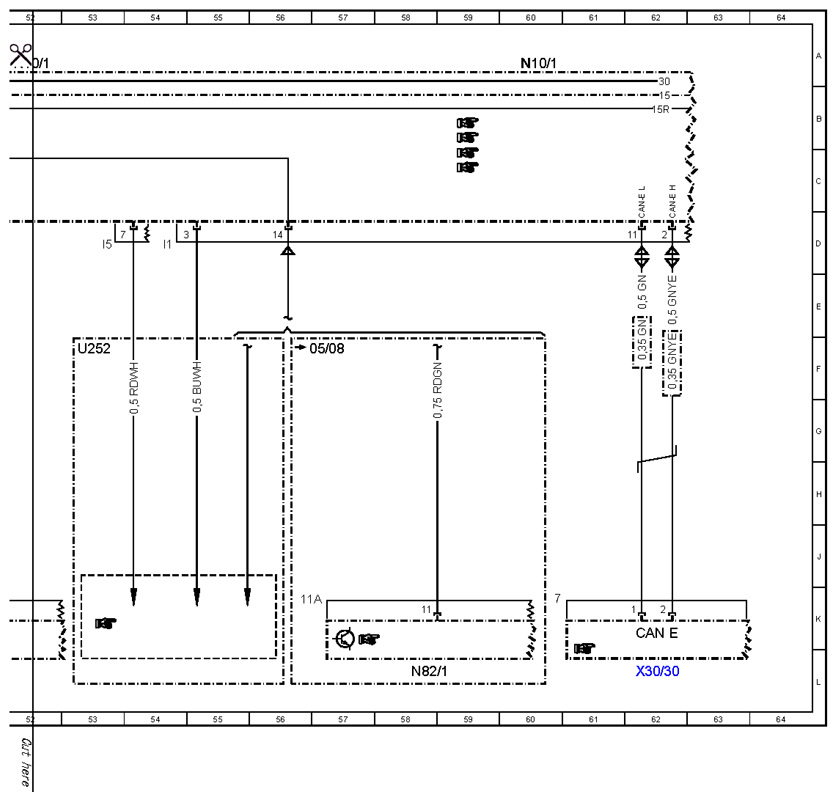

Fig 4: SAM Control Module With Front Fuse And Relay Module (N10/1) - Wiring Diagram (4 Of 4)
G10111344Courtesy of MERCEDES-BENZ USA
