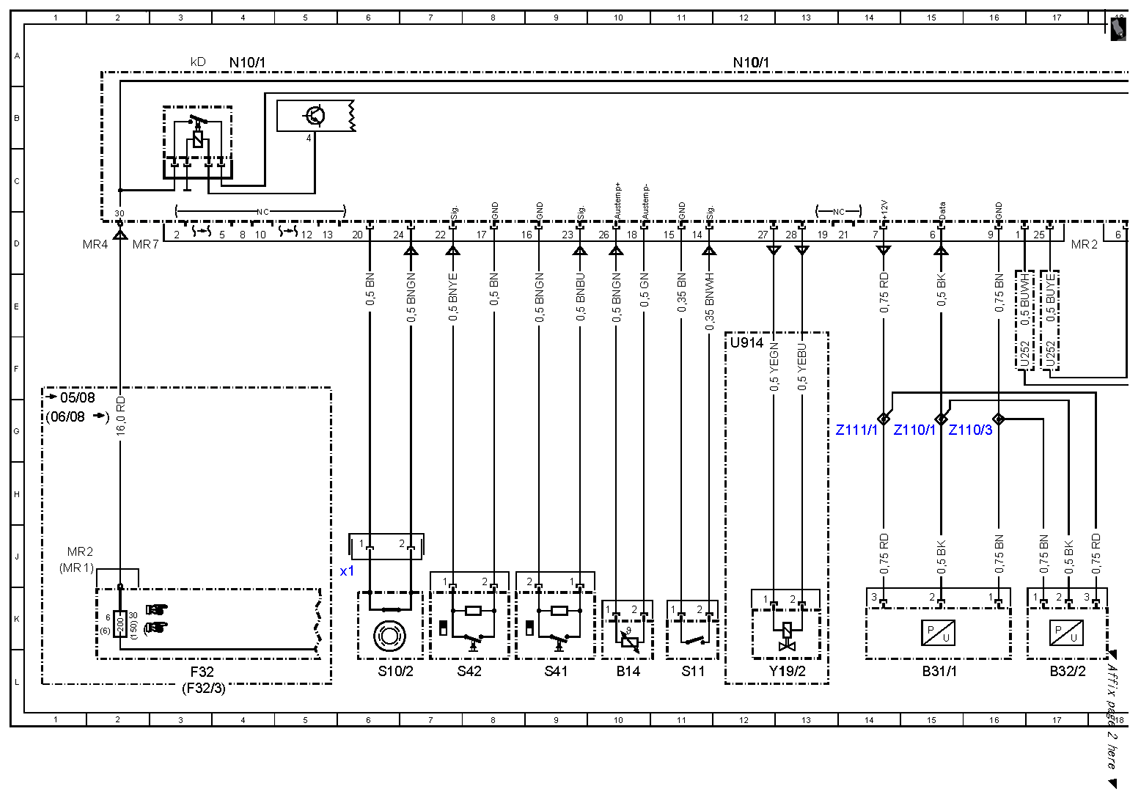

| B14 |
Outside temperature display temperature sensor |
10L |
| B31/1 |
AAC [KLA] multifunction sensor |
15L |
| B32/2 |
AAC [KLA] 4-way sun sensor |
17L |

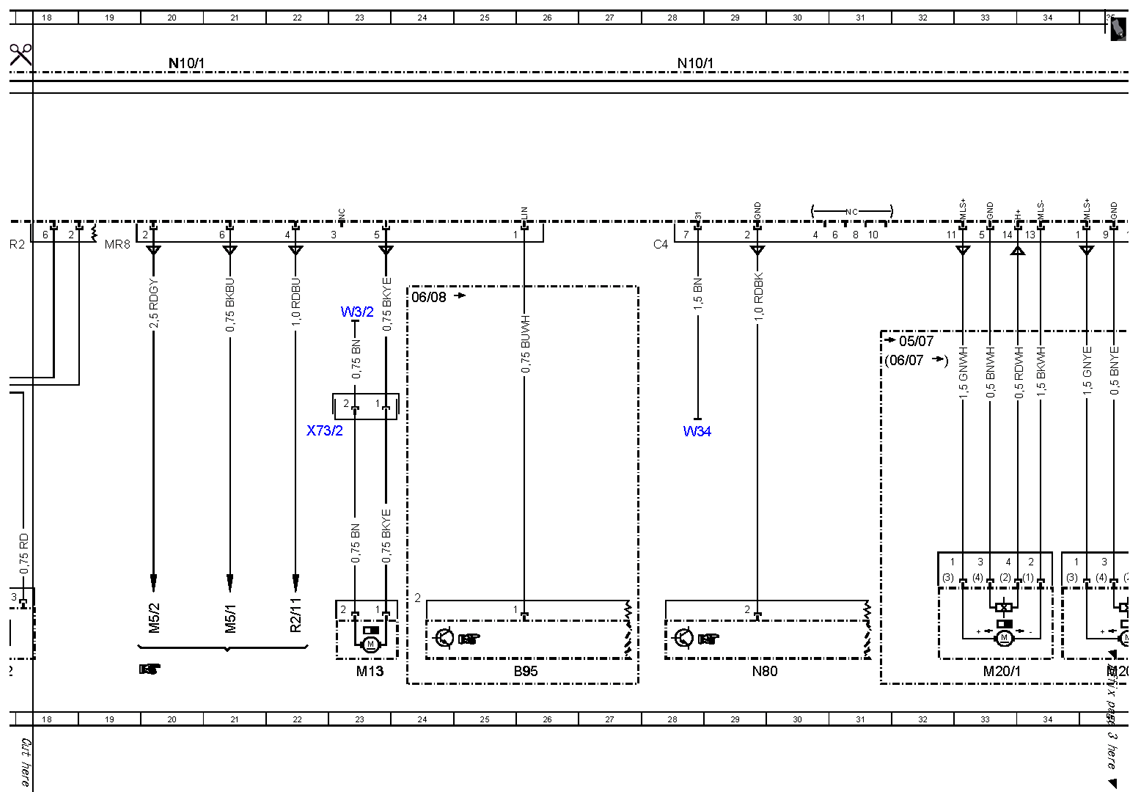

| B95 |
Battery sensor |
26L |

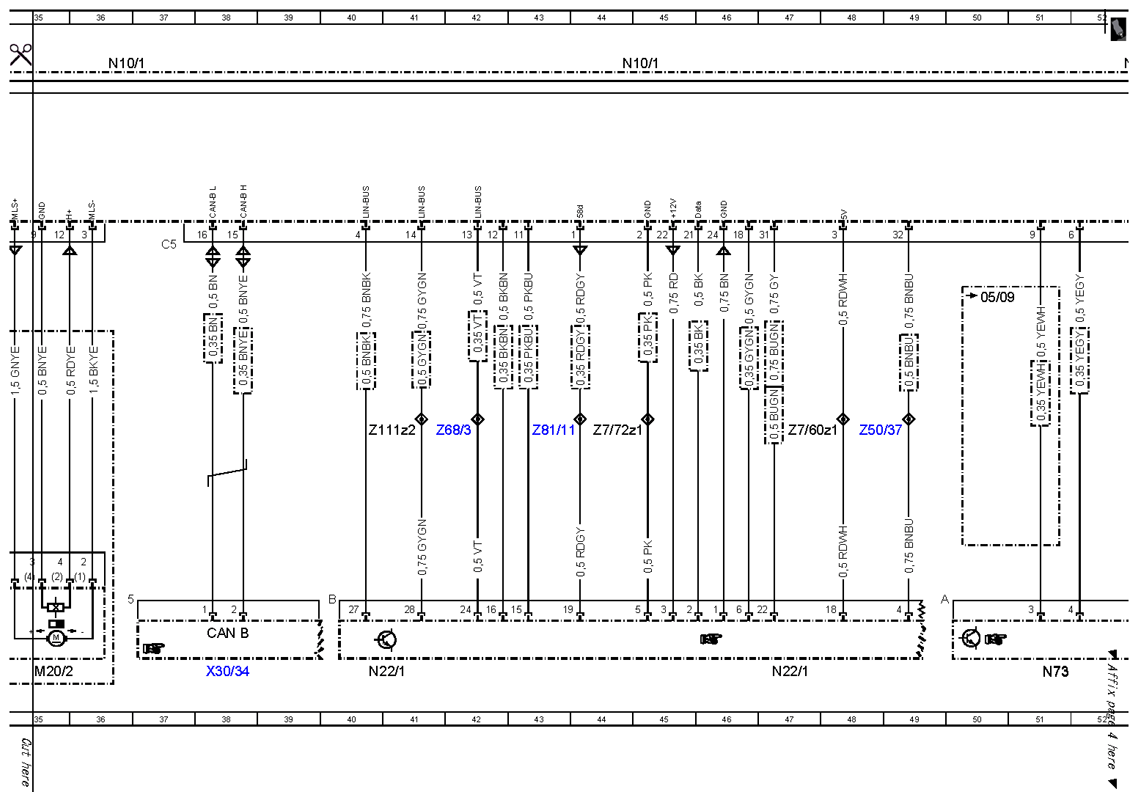

| CAN B |
Interior CAN |
38K |
| F32 |
Front prefuse |
3L |
| F32/3 |
Engine compartment prefuse box |
3L |
| F32/3f6 |
Fuse 6 |
2K |
| F32f6 |
Fuse 6 |
2K |

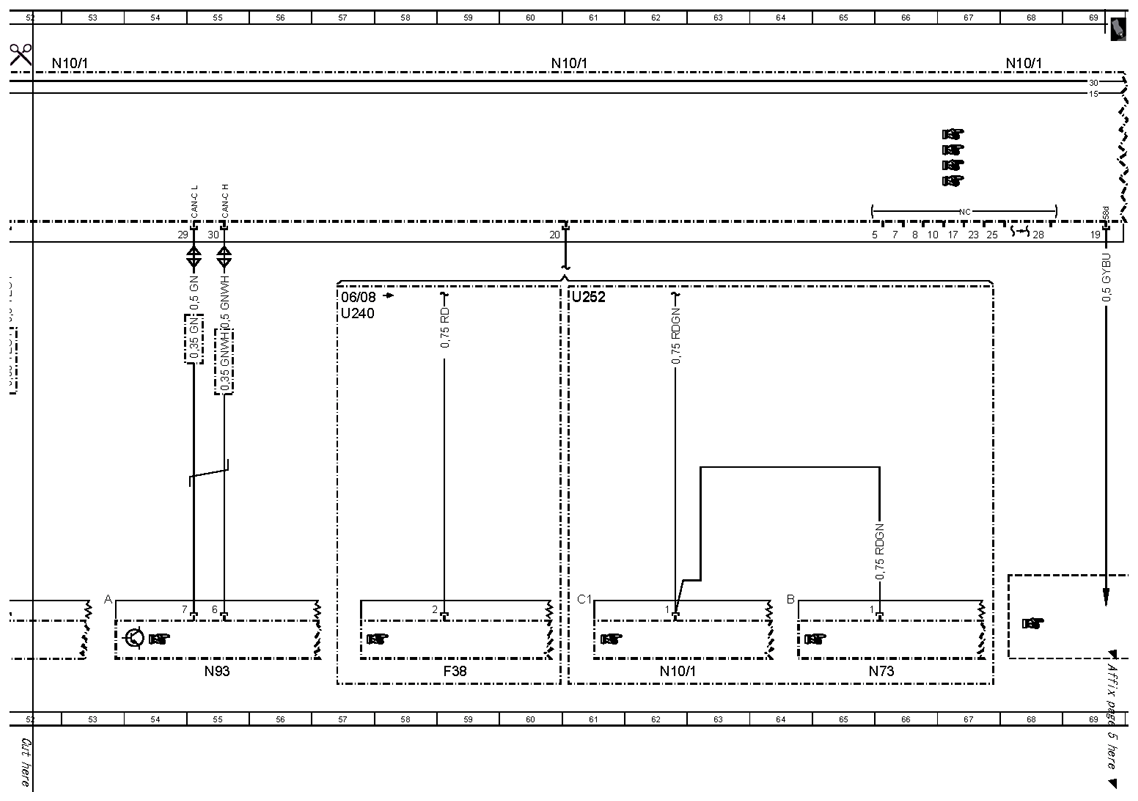

| F38 |
Backup battery fuse |
59L |
| M13 |
Coolant circulation pump |
23L |
| M20/1 |
Steering column in/out motor |
33L |
| M20/2 |
Steering column up/down motor |
35L |
| M5/1 |
Windshield washer fluid pump |
21K |
| M5/2 |
HCS [SRA] pump |
20K |
| N10/1 |
Front SAM control unit with fuse and relay module |
36A |
| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
20A |
| N10/1 |
Front SAM control unit with fuse and relay module |
28A |
| N10/1 |
Front SAM control unit with fuse and relay module |
62L |
| N10/1 |
Front SAM control unit with fuse and relay module |
44A |
| N10/1 |
Front SAM control unit with fuse and relay module |
52A |
| N10/1 |
Front SAM control unit with fuse and relay module |
60A |
| N10/1 |
Front SAM control unit with fuse and relay module |
68A |
| N10/1kD |
Circuit 15 (2)/spare 1 relay (changeover contact) |
3A |
| N22/1 |
AAC [KLA] control unit |
40L |
| N22/1 |
AAC [KLA] control unit |
47L |
| N73 |
EIS [EZS] control unit |
51L |
| N73 |
EIS [EZS] control unit |
66L |
| N80 |
Steering column module |
29L |
| N93 |
Central gateway control unit |
55L |
| R2/11 |
Washer nozzle hose heater |
22K |
| S10/2 |
Right front brake pad contact sensor |
6L |
| S10/2x1 |
Right front brake pad contact sensor connector |
6J |
| S11 |
Brake fluid indicator switch |
11L |
| S41 |
Coolant level indicator switch |
9L |
| S42 |
Windshield washer fluid level indicator switch |
8L |
| U240 |
Valid for all except ECO start/stop function |
57E |
| U252 |
Valid for ECO start/stop function |
17F |
| U252 |
Valid for ECO start/stop function |
17F |
| U252 |
Valid for ECO start/stop function |
61E |
| U914 |
Valid for engines using water valve |
12F |
| W3/2 |
Ground (left front wheelhouse) |
23E |
| W34 |
Ground (left footwell) |
28G |
| X30/34 |
Interior CAN/cockpit voltage distributor connector |
38L |
| X73/2 |
Coolant circulation pump connector |
22G |
| Y19/2 |
AC water valve |
13L |
| Z110/1 |
AC bus solder terminal |
15G |
| Z110/3 |
AC bus solder terminal |
16G |
| Z111/1 |
AC 12V solder terminal |
14G |
| Z111z2 |
Voltage supply connector sleeve |
41G |
| Z50/37 |
Air conditioner compressor ground connector sleeve |
48G |
| Z68/3 |
AC LIN bus data connector sleeve |
42G |
| Z7/60z1 |
5V output connector sleeve (solder connector in wiring harness) |
47G |
| Z7/72z1 |
COC nozzles and sensors sensor ground connector sleeve |
44G |
| Z81/11 |
Front passenger circuit 58d connector sleeve |
43G |
