Reversing camera (RFK), location of components - GF54.65-P-0005-01LAJ

MODEL 216.3 with CODE (218) Backup camera with CODE (498) Japan version as of Model Year 2009 /AEJ 08

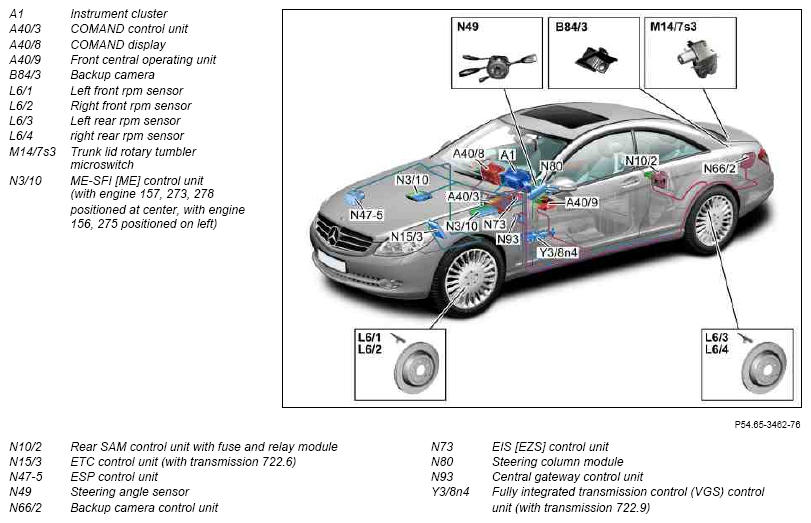

Fig 1: Reversing Camera (RFK) Components Location

Courtesy of MERCEDES-BENZ USA
