Parktronic system (PTS), location of components - GF54.65-P-0001-02SX

MODEL 221.0 /1, 216.3 with CODE (220) Parktronic system (PTS) up to Model Year 8

Shown on model 221.0

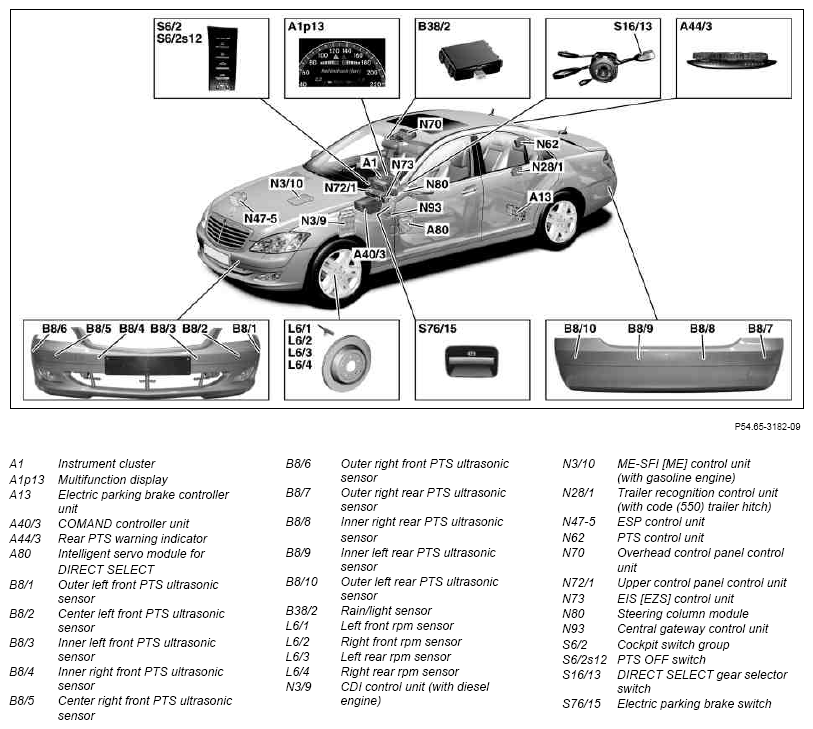

Fig 1: Parktronic System (PTS) Components Location

Courtesy of MERCEDES-BENZ USA
