Parktronic system (PTS), block diagram - GF54.65-P-0001-01SX

MODEL 221.0 /1, 216.3 with CODE (220) Parktronic system (PTS) up to Model Year 8

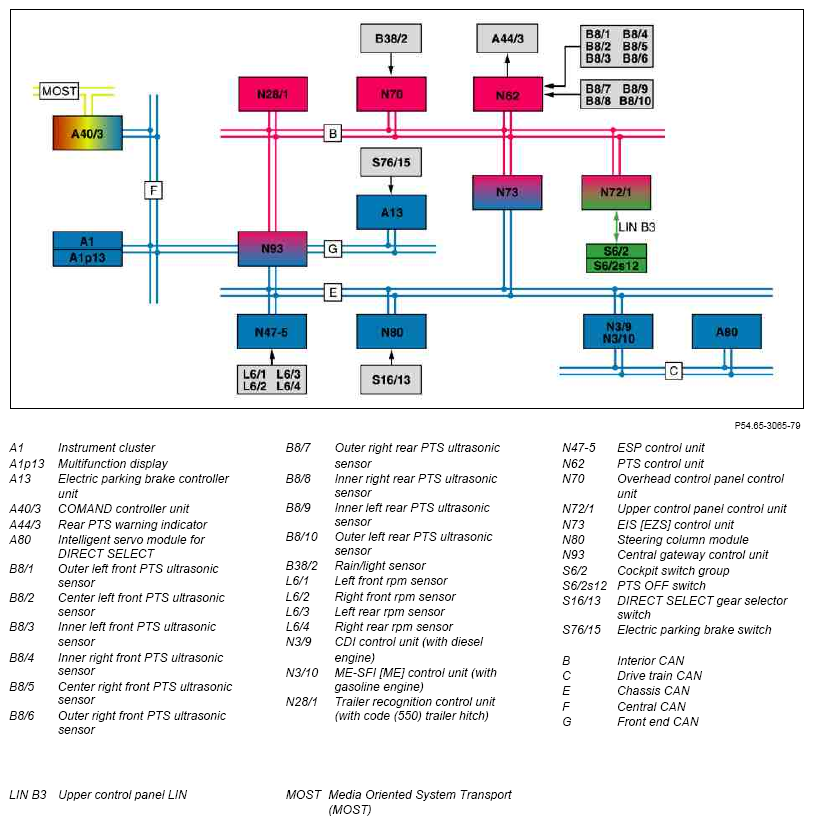

Fig 1: Parktronic System (PTS) - Block Diagram

Courtesy of MERCEDES-BENZ USA
