Attention assist, block diagram - GF54.30-P-0009-03LE

MODEL 216.3 as of Model Year 2011 /AEJ 10 MOPF MODEL 221.0 /1 as of Model Year 2010 /AEJ 09 MOPF

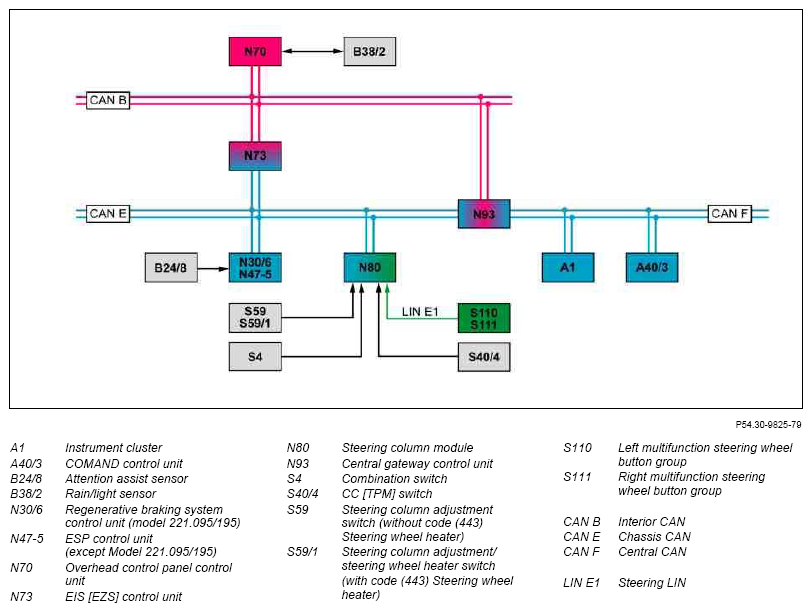

Fig 1: Attention Assist Block Diagram

Courtesy of MERCEDES-BENZ USA
