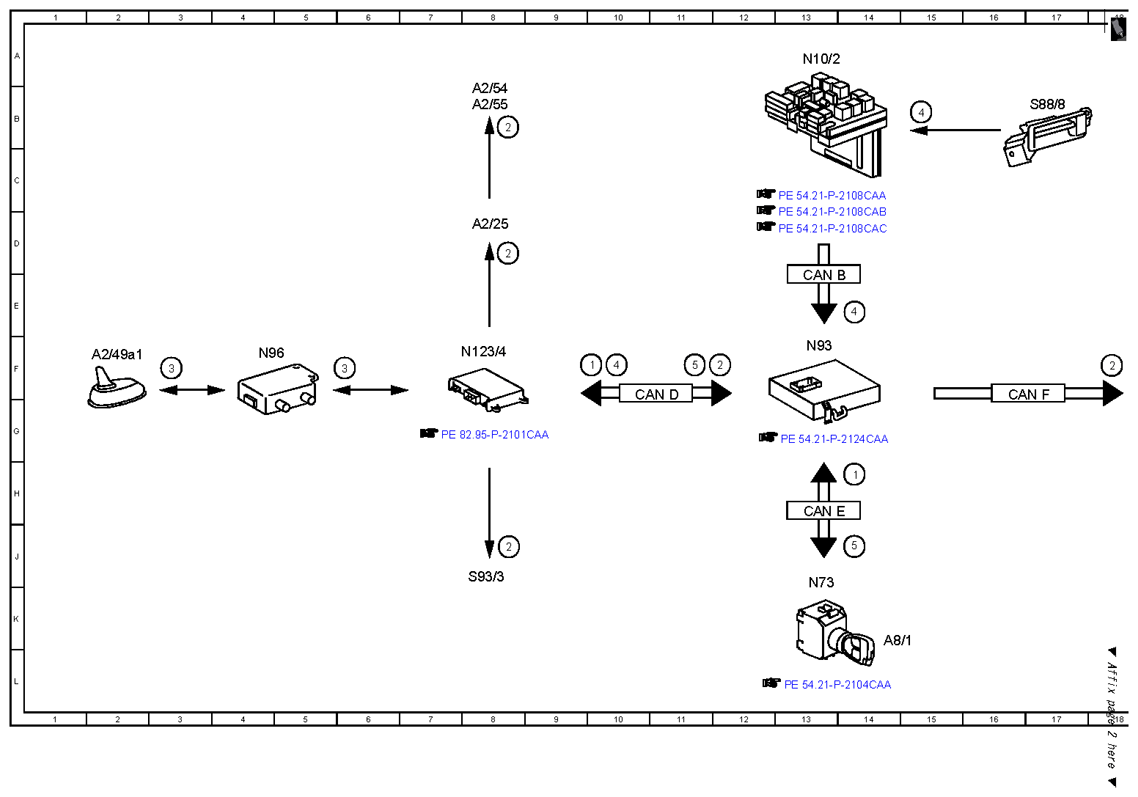

Electrical function diagram for vehicle remote unlocking, function - PE82.95-P-2065-97CAA
MODEL 216 with CODE (359) TELE AID emergency call system as of model year 09/YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15R/circuit 15, status ON | 10F |
| 1 | Circuit 15R/circuit 15, status ON | 14H |
| 2 | Status indication, signal | 18F |
| 2 | Status indication, signal | 8B |
| 2 | Status indication, signal | 8D |
| 2 | Status indication, signal | 8J |
| 2 | Status indication, signal | 12F |
| 3 | Telephone, signal | 6F |
| 3 | Telephone, signal | 3F |
| 4 | Trunk lid open/close switch, status | 10F |
| 4 | Trunk lid open/close switch, status | 15B |
| 4 | Trunk lid open/close switch, status | 14E |
| 5 | Lock central locking, signal | 11F |
| 5 | Lock central locking, signal | 14J |
| A1 | Instrument cluster | 19E |
| A2/25 | Emergency call system antenna splitter | 8D |
| A2/49a1 | Telephone antenna | 2F |
| A2/54 | Emergency call system left backup antenna | 8B |
| A2/55 | Emergency call system right backup antenna | 8B |
| A8/1 | Transmitter key | 14K |
| CAN B | Interior CAN | 13E |
| CAN D | Diagnostic CAN | 11F |
| CAN E | Chassis CAN | 13H |
| CAN F | Central CAN | 16F |
| N10/2 | Rear SAM control unit with fuse and relay module | 13A |
| N123/4 | Emergency call system control unit | 8F |
| N73 | EIS [EZS] control unit | 13K |
| N93 | Central gateway control unit | 13E |
| N96 | Frequency switchover control unit | 5F |
| S88/8 | Trunk lid external operation switch | 17B |
| S93/3 | SOS pushbutton switch | 8J |
