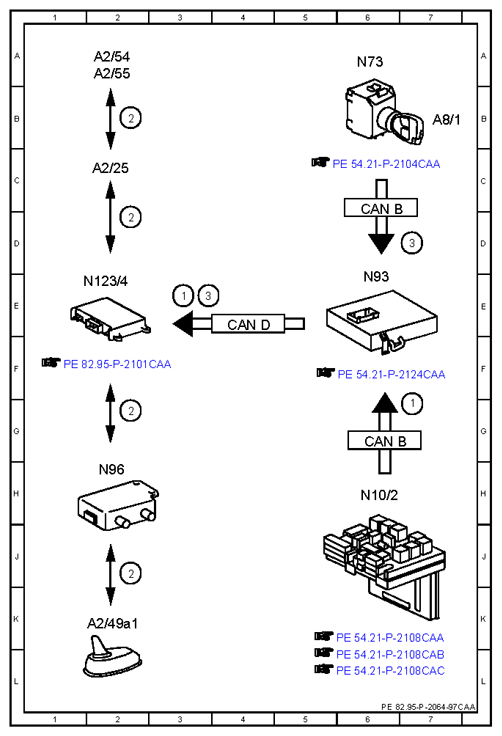

Electrical function diagram for vehicle location, function - PE82.95-P-2064-97CAA
MODEL 216 with CODE (359) TELE AID emergency call system as of model year 09/YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | ATA [EDW] alarm, signal | 3E |
| 1 | ATA [EDW] alarm, signal | 6G |
| 2 | Telephone, signal | 2B |
| 2 | Telephone, signal | 2D |
| 2 | Telephone, signal | 2G |
| 2 | Telephone, signal | 2J |
| 3 | Circuit 15, status | 4E |
| 3 | Circuit 15, status | 7D |
| A2/25 | Emergency call system antenna splitter | 2C |
| A2/49a1 | Telephone antenna | 2K |
| A2/54 | Emergency call system left backup antenna | 2A |
| A2/55 | Emergency call system right backup antenna | 2A |
| A8/1 | Transmitter key | 7B |
| CAN B | Interior CAN | 6C |
| CAN B | Interior CAN | 6G |
| CAN D | Diagnostic CAN | 4E |
| N10/2 | Rear SAM control unit with fuse and relay module | 6H |
| N123/4 | Emergency call system control unit | 2E |
| N73 | EIS [EZS] control unit | 6A |
| N93 | Central gateway control unit | 6E |
| N96 | Frequency switchover control unit | 2H |
