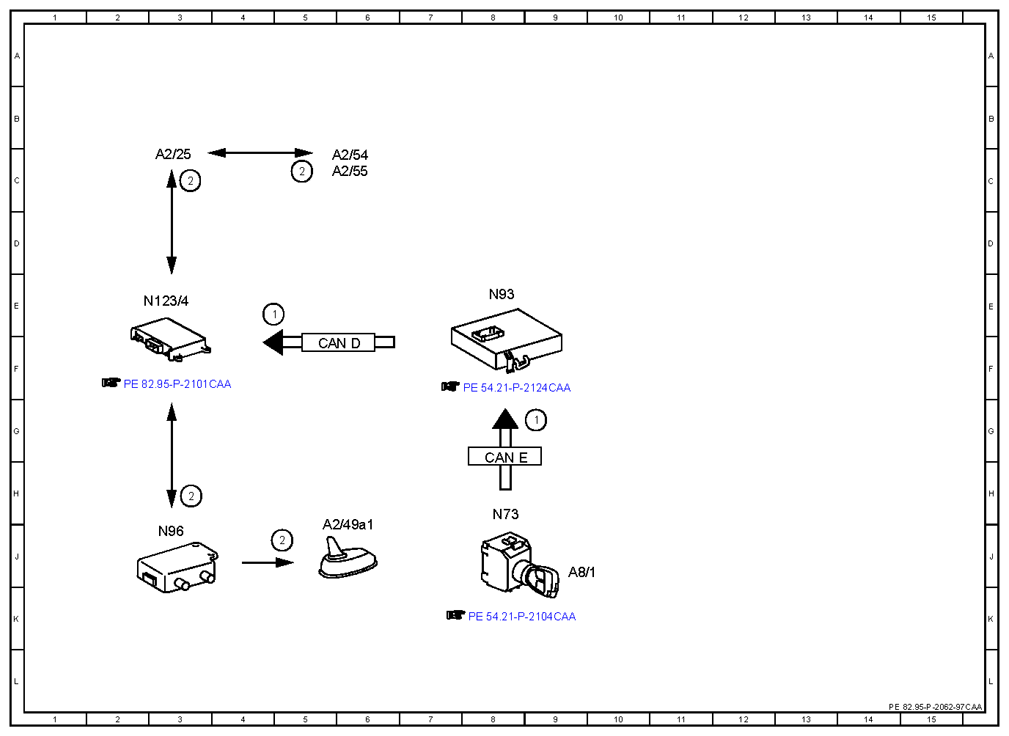

Electrical function diagram for selection of telephone antenna, function - PE82.95-P-2062-97CAA
MODEL 216 with CODE (359) TELE AID emergency call system as of model year 09/YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15R/circuit 15, status ON | 4E |
| 1 | Circuit 15R/circuit 15, status ON | 8G |
| 2 | Telephone, signal | 5C |
| 2 | Telephone, signal | 3C |
| 2 | Telephone, signal | 4J |
| 2 | Telephone, signal | 3H |
| A2/25 | Emergency call system antenna splitter | 3C |
| A2/49a1 | Telephone antenna | 5H |
| A2/54 | Emergency call system left backup antenna | 6C |
| A2/55 | Emergency call system right backup antenna | 6C |
| A8/1 | Transmitter key | 9J |
| CAN D | Diagnostic CAN | 6F |
| CAN E | Chassis CAN | 8G |
| N123/4 | Emergency call system control unit | 3E |
| N73 | EIS [EZS] control unit | 8H |
| N93 | Central gateway control unit | 8E |
| N96 | Frequency switchover control unit | 3J |
