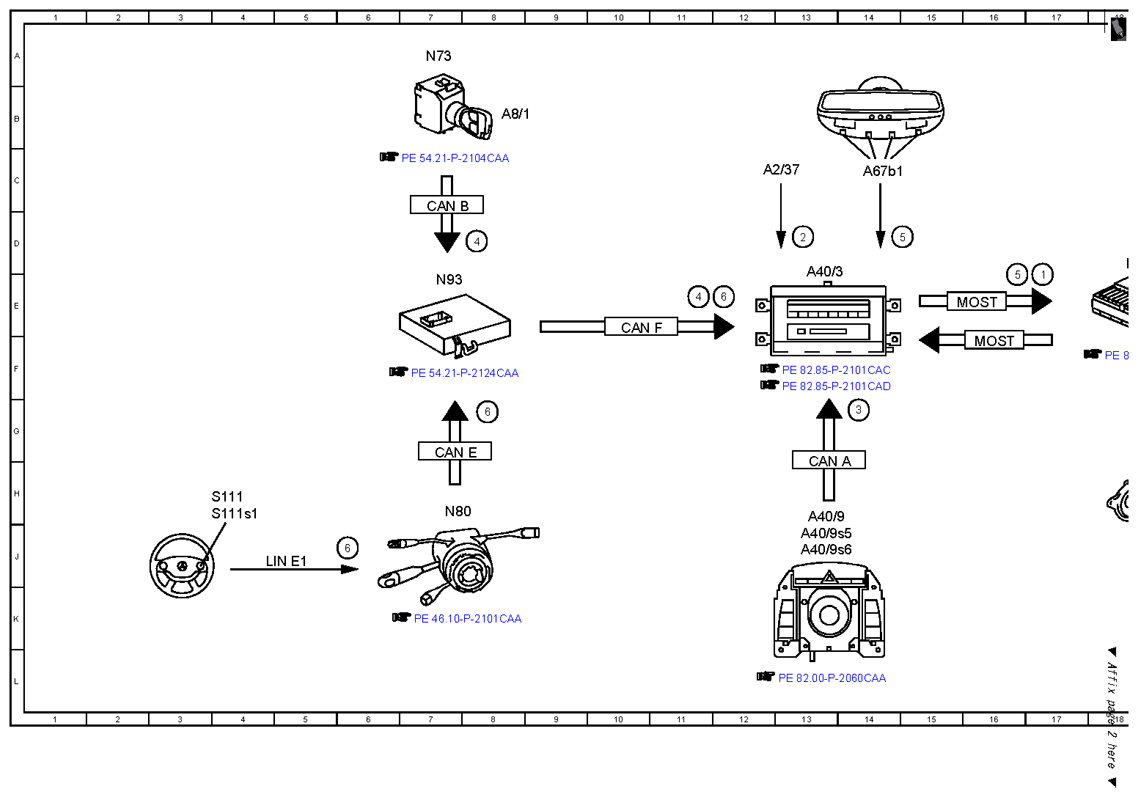

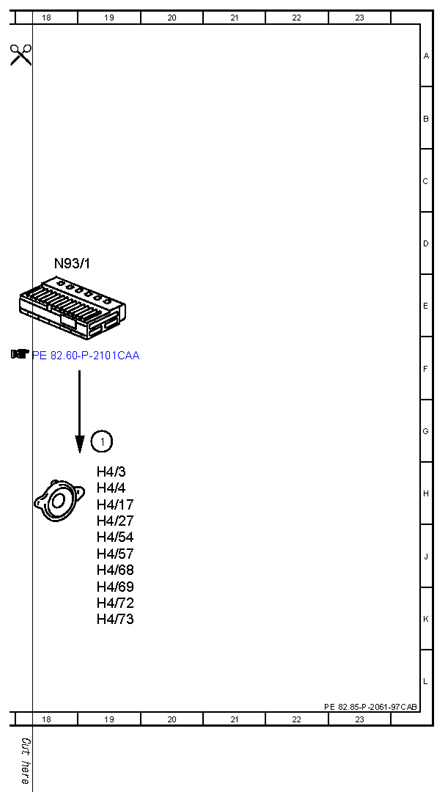

Electrical function diagram for route guidance by voice output (COMAND), function - PE82.85-P-2061-97CAB
MODEL 216 with CODE (529) HIGH Class Japan as of model year 09/YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Speaker, actuation | 17E |
| 1 | Speaker, actuation | 19G |
| 2 | VICS, signal | 13D |
| 3 | 14G | |
| 4 | Circuit 15R/circuit 15, status ON | 11E |
| 4 | Circuit 15R/circuit 15, status ON | 8D |
| 5 | Microphone, signal | 15D |
| 5 | Microphone, signal | 17D |
| 6 | Multifunction steering wheel button group, signal | 6J |
| 6 | Multifunction steering wheel button group, signal | 8G |
| 6 | Multifunction steering wheel button group, signal | 12E |
| A2/37 | VICS control unit | 13C |
| A40/3 | COMAND control unit | 13D |
| A40/9 | Front central operating unit | 13H |
| A40/9s5 | Telephone/navigation quick select button | 13J |
| A40/9s6 | Button "ON" | 13J |
| A67b1 | Hands-free system microphone group | 14C |
| A8/1 | Transmitter key | 8B |
| CAN A | Telematics CAN | 13G |
| CAN B | Interior CAN | 7C |
| CAN E | Chassis CAN | 7G |
| CAN F | Central CAN | 10E |
| H4/17 | Bass module speaker | 19H |
| H4/27 | Center cockpit speaker (centerfill) | 19H |
| H4/3 | Left door rear speaker | 19H |
| H4/4 | Right door rear speaker | 19H |
| H4/54 | Left rear surround speaker | 19J |
| H4/57 | Right rear surround speaker | 19J |
| H4/68 | Left door Sound tweeter | 19J |
| H4/69 | Right door Sound tweeter | 19J |
| H4/72 | Left door Sound woofer and midrange speaker group | 19K |
| H4/73 | Right door Sound woofer and midrange speaker group | 19K |
| LIN E1 | Steering LIN | 5J |
| MOST | Media Oriented System Transport | 16E |
| MOST | Media Oriented System Transport | 16F |
| N73 | EIS [EZS] control unit | 7A |
| N80 | Steering column module | 7H |
| N93 | Central gateway control unit | 7E |
| N93/1 | Audio tuner control unit | 19D |
| S111 | Right multifunction steering wheel button group | 4H |
| S111s1 | Buttons + and - for setting specific functions and volume control | 4H |
