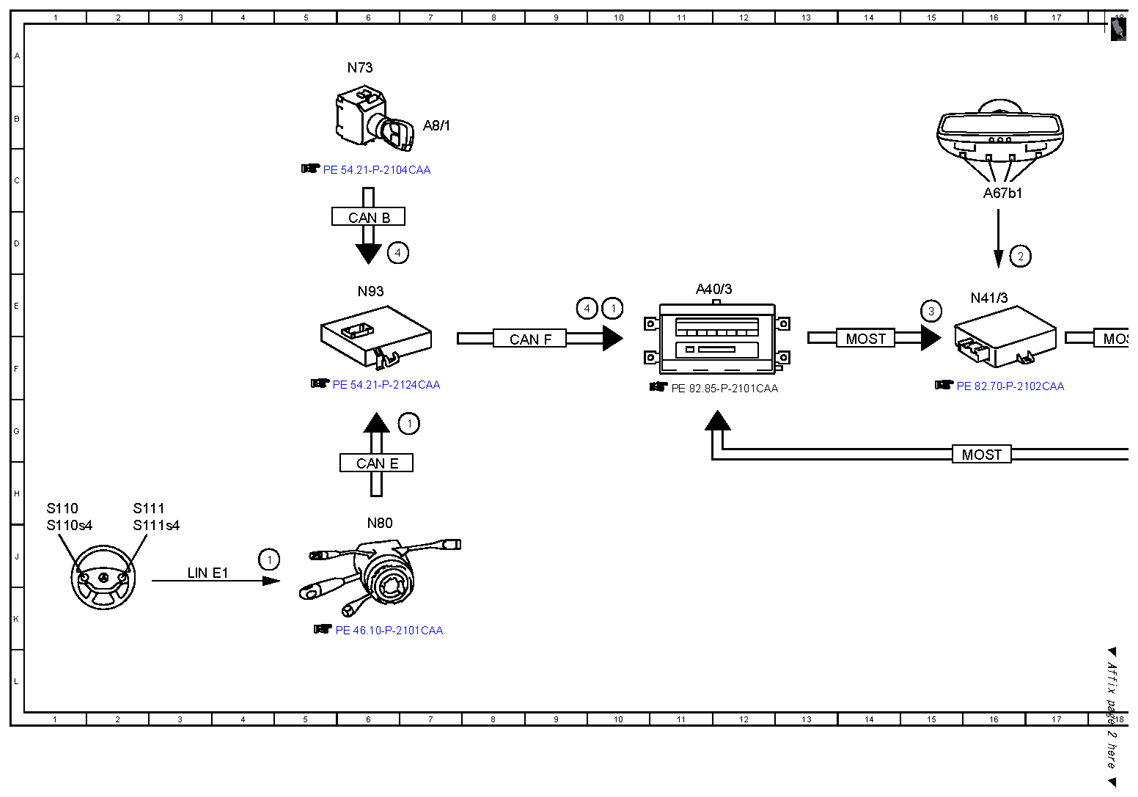

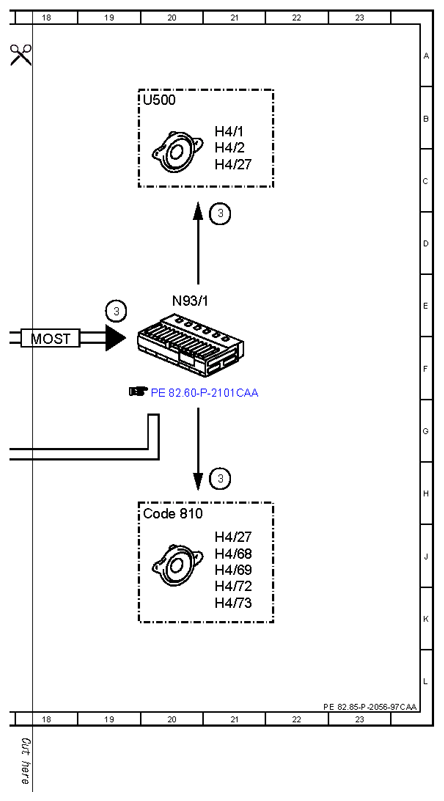

Electrical function diagram for COMAND voice control - PE82.85-P-2056-97CAA
MODEL 216 up to 31.5.09 with CODE (813) Voice control system (VCS [SBS]) as of model year 2009 /YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multifunction steering wheel button group, signal | 7G |
| 1 | Multifunction steering wheel button group, signal | 4J |
| 1 | Multifunction steering wheel button group, signal | 10E |
| 2 | Microphone, signal | 16D |
| 3 | Speaker, actuation | 15E |
| 3 | Speaker, actuation | 21H |
| 3 | Speaker, actuation | 19E |
| 3 | Speaker, actuation | 21C |
| 4 | Circuit 15R/circuit 15, status ON | 6D |
| 4 | Circuit 15R/circuit 15, status ON | 9E |
| A40/3 | COMAND control unit | 11E |
| A67b1 | Hands-free system microphone group | 16C |
| A8/1 | Transmitter key | 7B |
| CAN B | Interior CAN | 6C |
| CAN E | Chassis CAN | 6G |
| CAN F | Central CAN | 9E |
| Code 810 | Sound system | 20H |
| H4/1 | Left door speaker group | 21B |
| H4/2 | Right door speaker group | 21C |
| H4/27 | Center cockpit speaker (centerfill) | 21C |
| H4/27 | Center cockpit speaker (centerfill) | 21J |
| H4/68 | Left door Sound tweeter | 21J |
| H4/69 | Right door Sound tweeter | 21J |
| H4/72 | Left door Sound woofer and midrange speaker group | 21K |
| H4/73 | Right door Sound woofer and midrange speaker group | 21K |
| LIN E1 | Steering LIN | 3J |
| MOST | Media Oriented System Transport | 14E |
| MOST | Media Oriented System Transport | 16G |
| MOST | Media Oriented System Transport | 18E |
| N41/3 | Voice control system (VCS [SBS]) control unit | 16E |
| N73 | EIS [EZS] control unit | 6A |
| N80 | Steering column module | 6J |
| N93 | Central gateway control unit | 6E |
| N93/1 | Audio tuner control unit | 20E |
| S110 | Left multifunction steering wheel button group | 1H |
| S110s4 | "Back" and SBS off button | 1J |
| S111 | Right multifunction steering wheel button group | 2H |
| S111s4 | VCS [SBS] on button | 2J |
| U500 | Not valid for Sound System | 20B |
