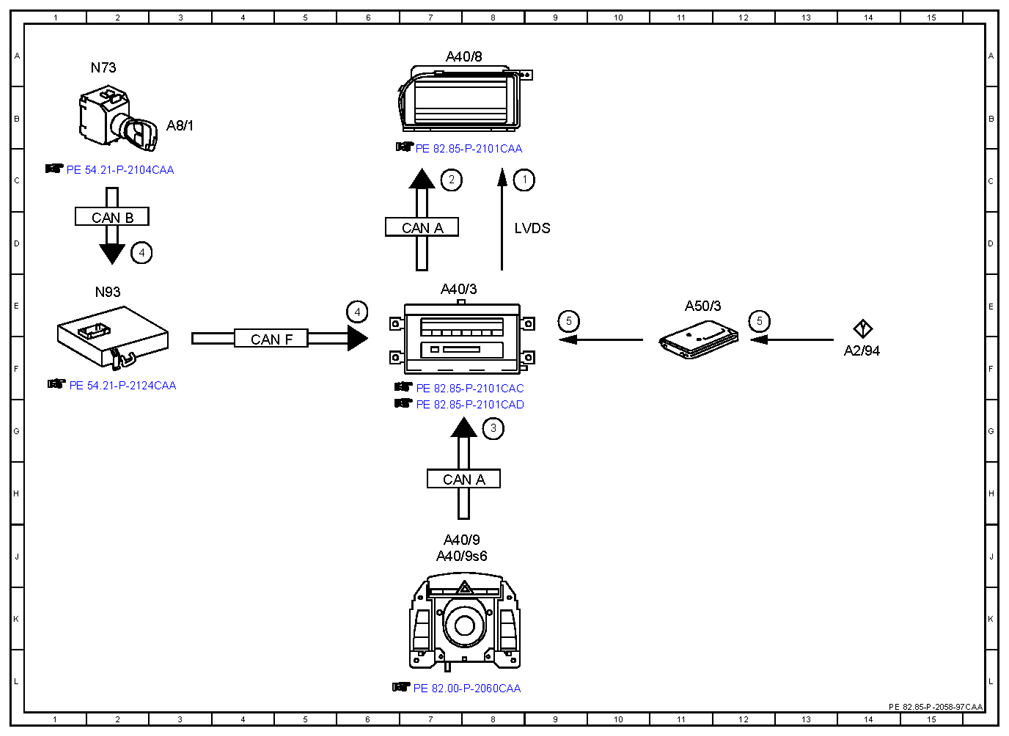

Electrical function diagram for COMAND ETC - PE82.85-P-2058-97CAA
MODEL 216 with CODE (529) HIGH Class Japan as of model year 09/YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Audio/COMAND display, signal | 9C |
| 2 | Switch-on request, signal | 7C |
| 3 | 8G | |
| 4 | Circuit 15R/circuit 15, status ON | 6E |
| 4 | Circuit 15R/circuit 15, status ON | 2D |
| 5 | Electronic Toll Collection (ETC), signal | 9E |
| 5 | Electronic Toll Collection (ETC), signal | 12E |
| A2/94 | Electronic toll collection (ETC) antenna | 14F |
| A40/3 | COMAND control unit | 8E |
| A40/8 | COMAND display | 8A |
| A40/9 | Front central operating unit | 7J |
| A40/9s6 | Button "ON" | 7J |
| A50/3 | Electronic toll collection (ETC) control unit | 12E |
| A8/1 | Transmitter key | 3B |
| CAN A | Telematics CAN | 7D |
| CAN A | Telematics CAN | 7H |
| CAN B | Interior CAN | 2D |
| CAN F | Central CAN | 5E |
| LVDS | Low voltage differential signal | 9D |
| N73 | EIS [EZS] control unit | 2A |
| N93 | Central gateway control unit | 2E |
