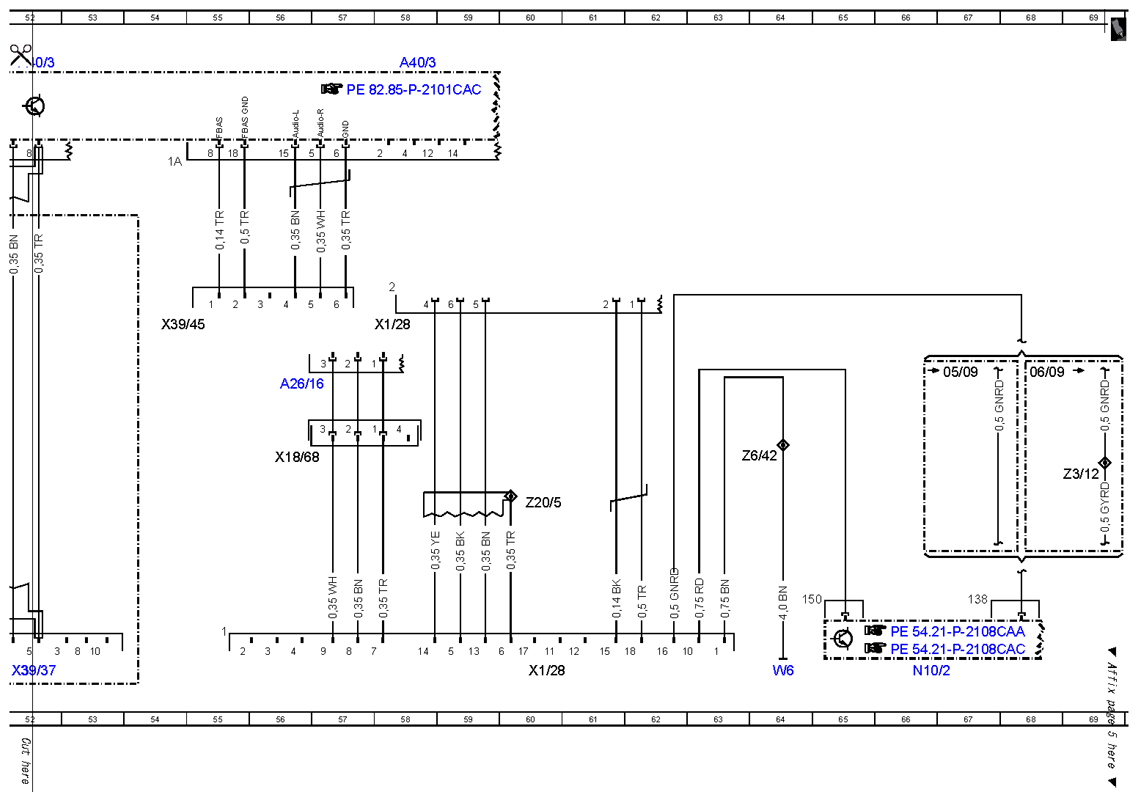

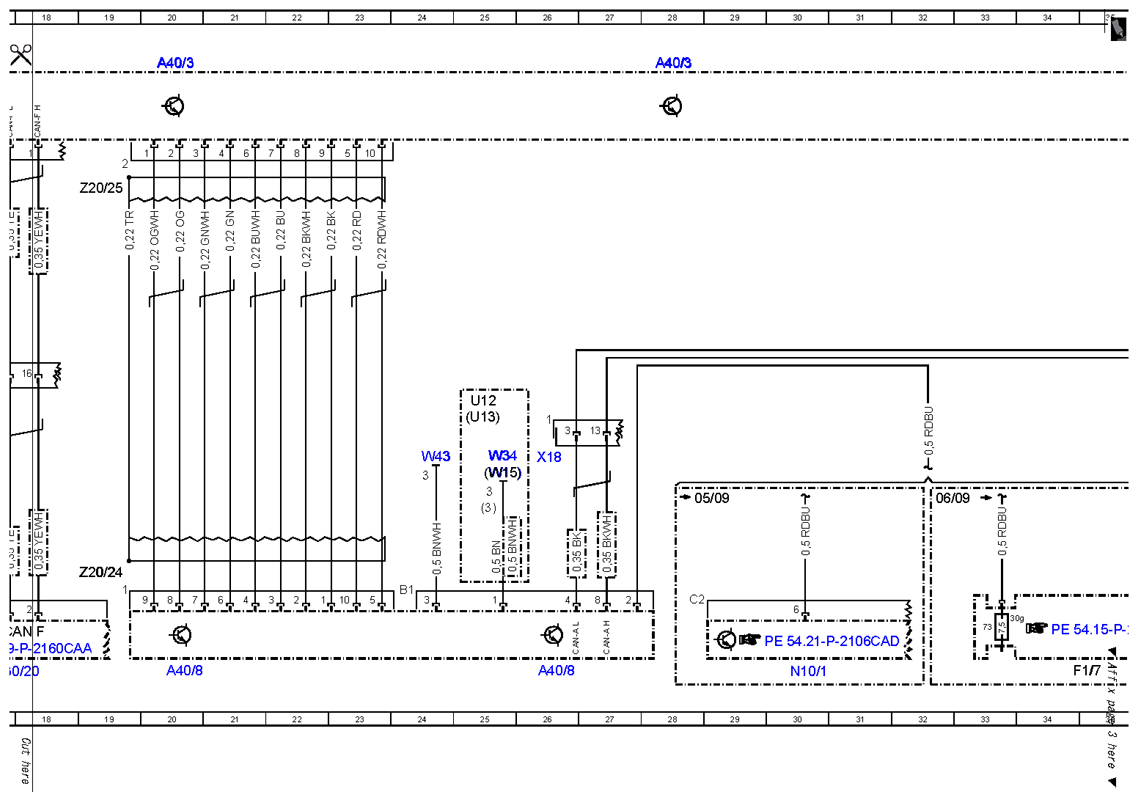

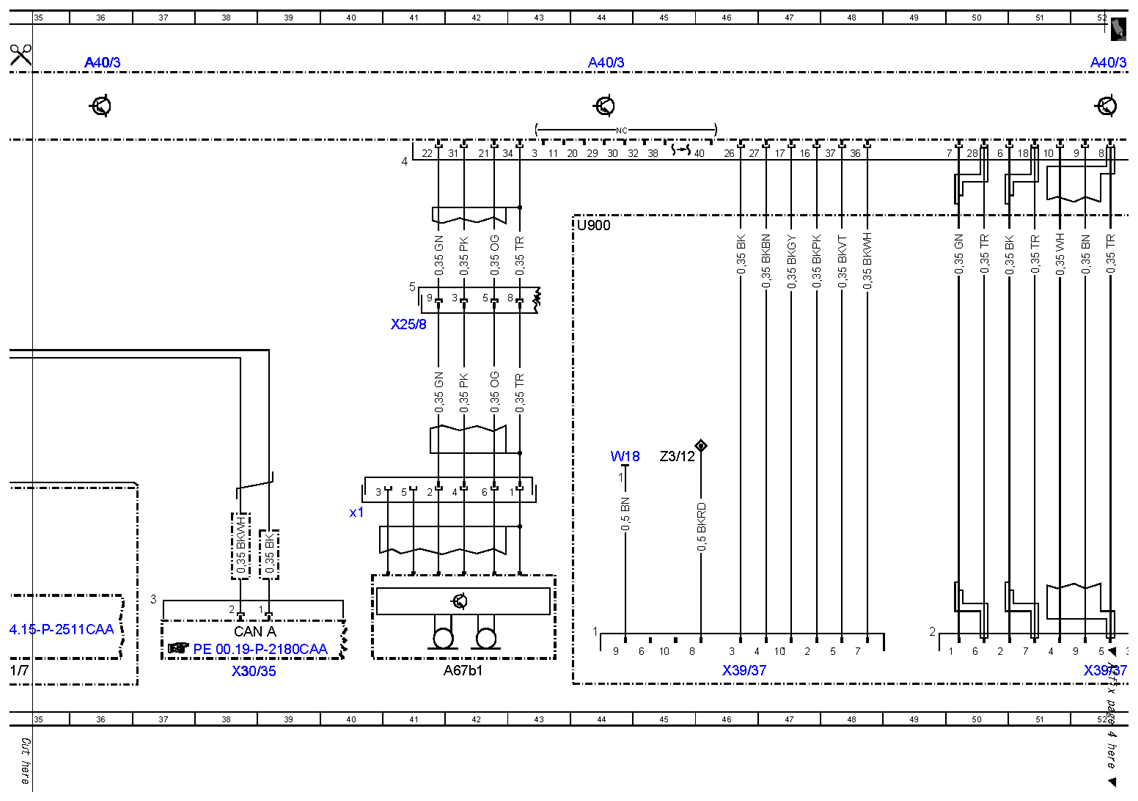

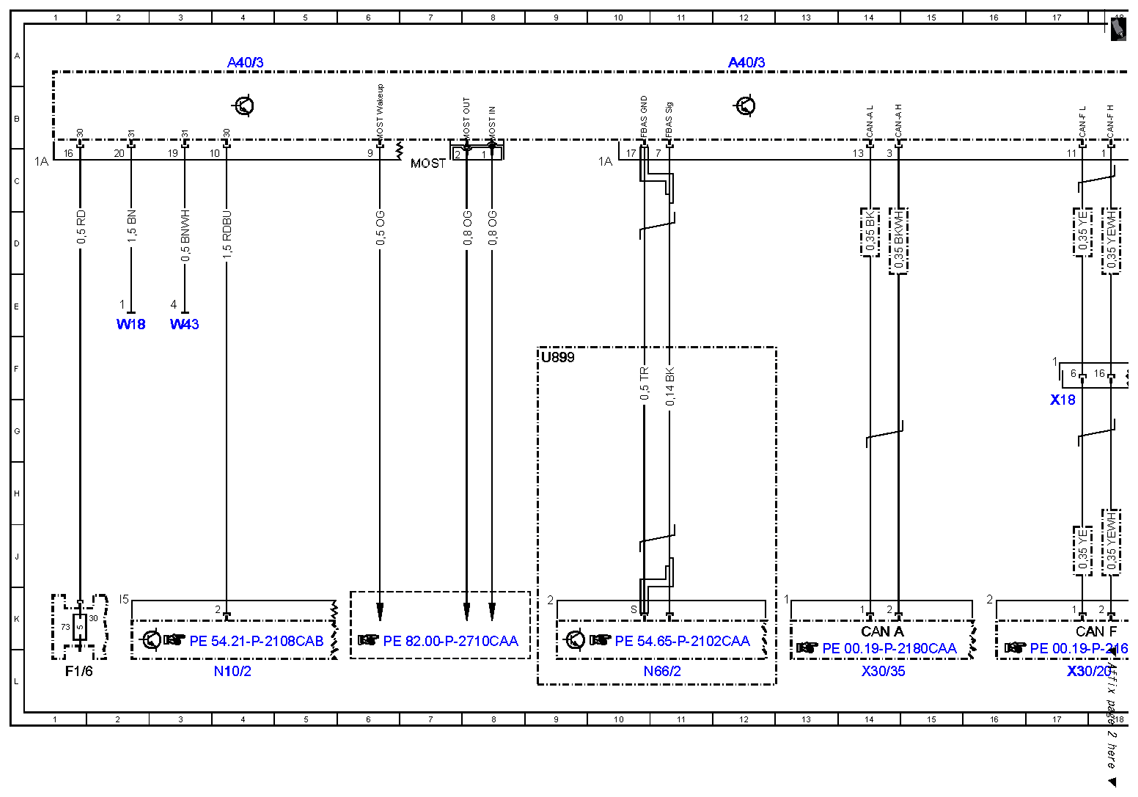

Cockpit Management and Data System (COMAND) control unit wiring diagram - PE82.85-P-2101-97CAD
MODEL 216.3 with CODE (529) HIGH Class Japan as of model year 2009 /YoM 08, control unit A40/3, Sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| A26/16 | IR receiver unit, Head Unit | 56F |
| A40/3 | COMAND control unit | 4A |
| A40/3 | COMAND control unit | 12A |
| A40/3 | COMAND control unit | 20A |
| A40/3 | COMAND control unit | 28A |
| A40/3 | COMAND control unit | 36A |
| A40/3 | COMAND control unit | 44A |
| A40/3 | COMAND control unit | 52A |
| A40/3 | COMAND control unit | 58A |
| A40/8 | COMAND display | 20L |
| A40/8 | COMAND display | 26L |
| A67b1 | Hands-free system microphone group | 42L |
| A67b1x1 | Hands-free system microphone group connector | 40H |
| CAN A | Telematics CAN | 14K |
| CAN A | Telematics CAN | 38K |
| CAN F | Central CAN | 17K |
| F1/6 | Right instrument panel fuse box | 1L |
| F1/6f73 | Fuse 73 | 1K |
| F1/7 | Left instrument panel fuse box | 35L |
| F1/7f99 | Fuse 99 | 33K |
| MOST | Media Oriented System Transport | 7C |
| N10/1 | Front SAM control unit with fuse and relay module | 30L |
| N10/2 | Rear SAM control unit with fuse and relay module | 4L |
| N10/2 | Rear SAM control unit with fuse and relay module | 66L |
| N66/2 | Backup camera control unit | 11L |
| U12 | Valid for left-hand drive vehicles | 25G |
| U13 | Valid for right-hand drive vehicles | 25G |
| U899 | Valid for backup camera | 9F |
| U900 | Further line routing not clarified at time of publication | 44D |
| W15 | Power ground (electronics) | 25H |
| W18 | Ground (left front seat crossmember) | 2E |
| W18 | Ground (left front seat crossmember) | 44G |
| W34 | Ground (left footwell) | 25G |
| W43 | Ground (reference, image transmission systems) | 24G |
| W43 | Ground (reference, image transmission systems) | 3E |
| W6 | Ground (left wheelhouse in luggage compartment) | 64L |
| X1/28 | TV/tuner connector | 60L |
| X1/28 | TV/tuner connector | 58E |
| X18 | Cockpit wiring harness and FFS [RBA] connector | 17G |
| X18 | Cockpit wiring harness and FFS [RBA] connector | 26H |
| X18/68 | External navigation infrared receiver connector | 56H |
| X25/8 | Overhead control panel and FFS [RBA] connector | 41E |
| X30/20 | Central CAN voltage distributor connector | 17L |
| X30/35 | Telematics CAN voltage distributor connector | 14L |
| X30/35 | Telematics CAN voltage distributor connector | 38L |
| X39/37 | CTEL separation point | 46L |
| X39/37 | CTEL separation point | 52L |
| X39/45 | Walkman separation point | 54E |
| Z20/24 | Cable end insulation not stripped, placed inside insulated tubing | 19J |
| Z20/25 | Cable end insulation not stripped, placed inside insulated tubing | 19C |
| Z20/5 | Shielding placed inside insulating tubing | 60H |
| Z3/12 | Circuit 15R connector sleeve | 45G |
| Z3/12 | Circuit 15R connector sleeve | 69H |
| Z6/42 | Ground W6 connector sleeve | 64G |
