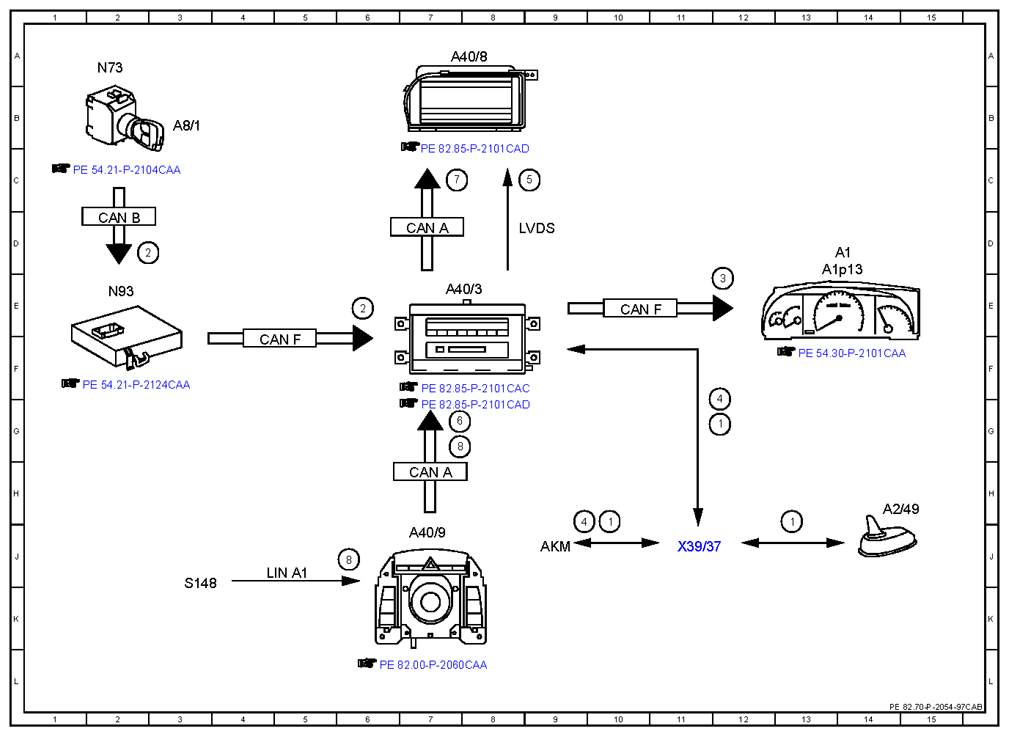

Electrical function schematic for mobile phone, switch on and switch off characteristics - PE82.70-P-2054-97CAB
MODEL 216 with CODE (529) HIGH Class Japan as of model year 09/YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Telephone, signal | 10J |
| 1 | Telephone, signal | 13J |
| 1 | Telephone, signal | 11G |
| 2 | Circuit 15R/circuit 15, status ON | 6E |
| 2 | Circuit 15R/circuit 15, status ON | 3D |
| 3 | 12D | |
| 4 | Switch on/off, signal | 9H |
| 4 | Switch on/off, signal | 12F |
| 5 | Audio/COMAND display, signal | 9C |
| 6 | 7G | |
| 7 | Switch-on request, signal | 7C |
| 8 | 7G | |
| 8 | 6J | |
| A1 | Instrument cluster | 14D |
| A1p13 | Multifunction display | 14D |
| A2/49 | Telephone and GPS antenna | 14H |
| A40/3 | COMAND control unit | 8E |
| A40/8 | COMAND display | 8A |
| A40/9 | Front central operating unit | 7J |
| A8/1 | Transmitter key | 3B |
| CAN A | Telematics CAN | 7D |
| CAN A | Telematics CAN | 7H |
| CAN B | Interior CAN | 2D |
| CAN F | Central CAN | 5F |
| CAN F | Central CAN | 10E |
| LIN A1 | COU [ZBE] LIN | 5J |
| LVDS | Low voltage differential signal | 9D |
| N73 | EIS [EZS] control unit | 2A |
| N93 | Central gateway control unit | 2E |
| S148 | Center console button group | 3J |
| X39/37 | CTEL separation point | 11J |
