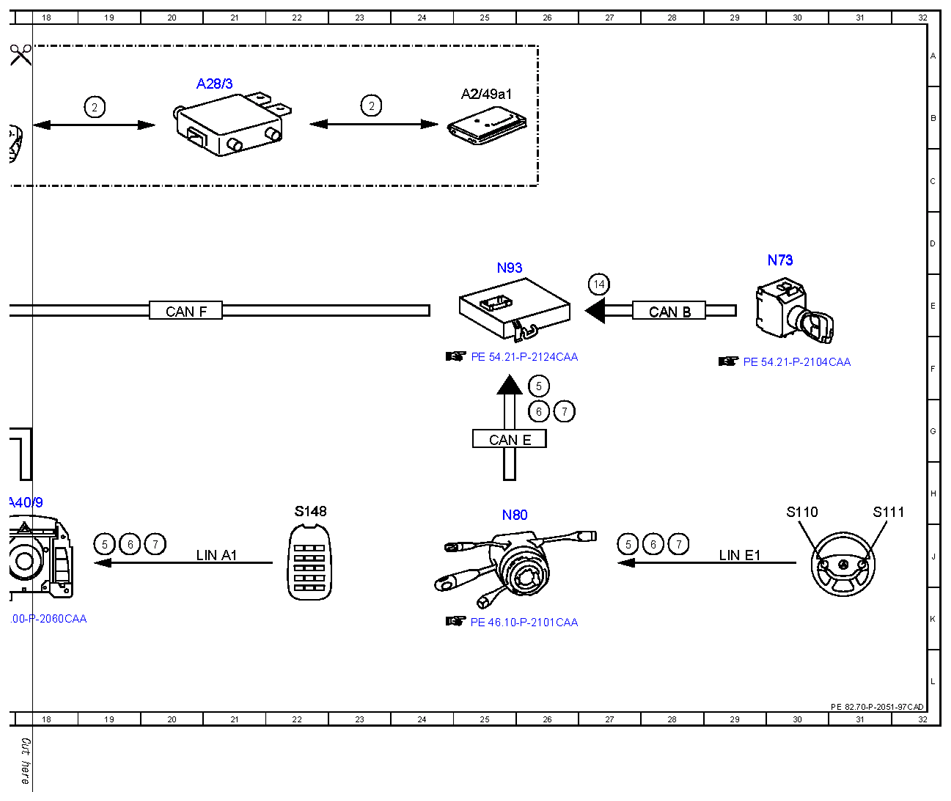

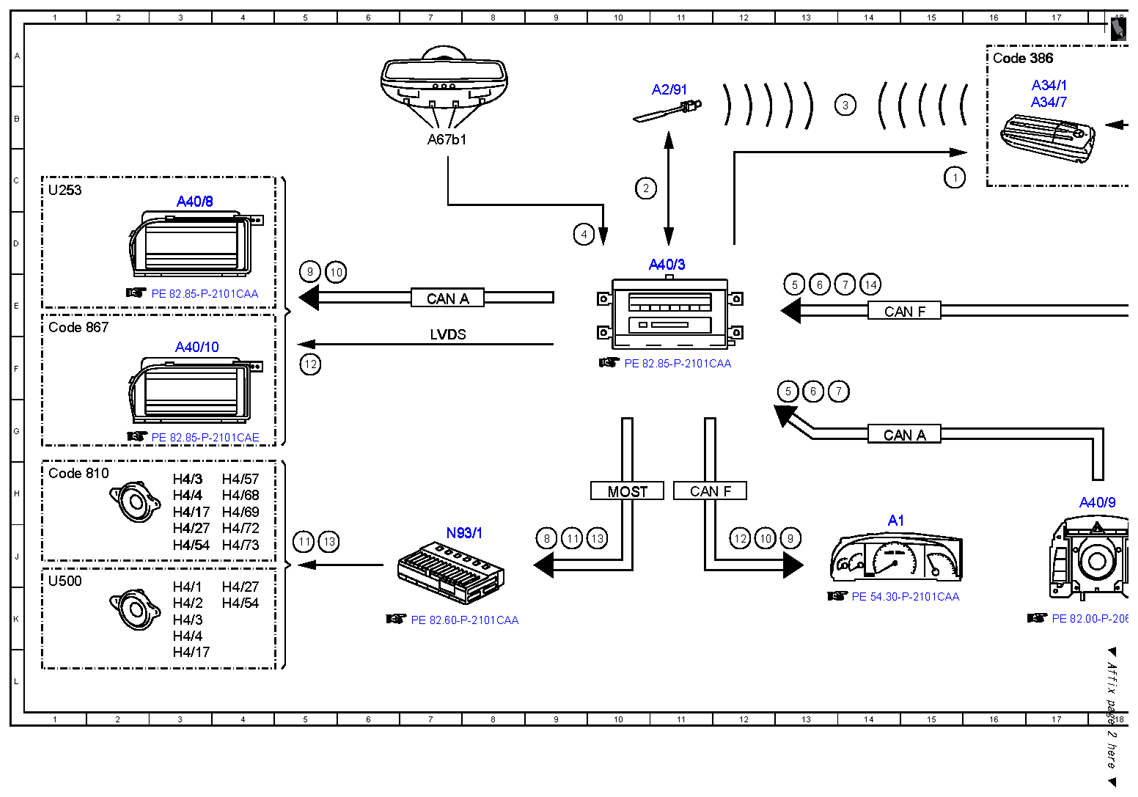

Electrical function schematic for cellular phone - PE82.70-P-2051-97CAD
MODEL 216 with CODE (379) Telephone module with Bluetooth SAP
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Switch-on request, signal | 15C |
| 10 | Incoming call display, actuation | 12J |
| 10 | Incoming call display, actuation | 5E |
| 11 | Ring tone output, signal | 9J |
| 11 | Ring tone output, signal | 5J |
| 12 | Display of caller information, actuation | 12J |
| 12 | Display of caller information, actuation | 5F |
| 13 | Voice output, signal | 10J |
| 13 | Voice output, signal | 5J |
| 14 | Circuit 30, status | 27E |
| 14 | Circuit 30, status | 14E |
| 2 | Telephone, signal | 10C |
| 2 | Telephone, signal | 19B |
| 2 | Telephone, signal | 23B |
| 3 | Connection via Bluetooth, communication | 14B |
| 4 | Voice input, signal | 9D |
| 5 | Establish connection for phone call, request | 13F |
| 5 | Establish connection for phone call, request | 13E |
| 5 | Establish connection for phone call, request | 26F |
| 5 | Establish connection for phone call, request | 19J |
| 5 | Establish connection for phone call, request | 27J |
| 6 | Telephone/address book data display, request | 13F |
| 6 | Telephone/address book data display, request | 13E |
| 6 | Telephone/address book data display, request | 26G |
| 6 | Telephone/address book data display, request | 19J |
| 6 | Telephone/address book data display, request | 28J |
| 7 | Accept phone call, request | 13F |
| 7 | Accept phone call, request | 14E |
| 7 | Accept phone call, request | 26G |
| 7 | Accept phone call, request | 20J |
| 7 | Accept phone call, request | 28J |
| 8 | Mute, signal | 9J |
| 9 | Telephone/address book data display, actuation | 13J |
| 9 | Telephone/address book data display, actuation | 5E |
| A1 | Instrument cluster | 14J |
| A2/49a1 | Telephone antenna | 25B |
| A2/91 | Bluetooth antenna | 11B |
| A28/3 | E-net compensator | 20B |
| A34/1 | Bluetooth® mobile telephone adapter | 17B |
| A34/7 | Bluetooth module | 17B |
| A40/10 | SPLITVIEW display | 3F |
| A40/3 | COMAND control unit | 11D |
| A40/8 | COMAND display | 3C |
| A40/9 | Front central operating unit | 18H |
| A67b1 | Hands-free system microphone group | 7B |
| CAN A | Telematics CAN | 7E |
| CAN A | Telematics CAN | 14G |
| CAN B | Interior CAN | 28E |
| CAN E | Chassis CAN | 25G |
| CAN F | Central CAN | 14E |
| CAN F | Central CAN | 11H |
| CAN F | Central CAN | 20E |
| Code 386 | Mobile phone preinstallation with universal interface | 16A |
| Code 810 | Sound system | 1H |
| Code 867 | SPLITVIEW | 1E |
| H4/1 | Left door speaker group | 3K |
| H4/17 | Bass module speaker | 3H |
| H4/17 | Bass module speaker | 3L |
| H4/2 | Right door speaker group | 3K |
| H4/27 | Center cockpit speaker (centerfill) | 3J |
| H4/27 | Center cockpit speaker (centerfill) | 4K |
| H4/3 | Left door rear speaker | 3H |
| H4/3 | Left door rear speaker | 3K |
| H4/4 | Right door rear speaker | 3H |
| H4/4 | Right door rear speaker | 3K |
| H4/54 | Left rear surround speaker | 3J |
| H4/54 | Left rear surround speaker | 4K |
| H4/57 | Right rear surround speaker | 4H |
| H4/68 | Left door Sound tweeter | 4H |
| H4/69 | Right door Sound tweeter | 4H |
| H4/72 | Left door Sound woofer and midrange speaker group | 4J |
| H4/73 | Right door Sound woofer and midrange speaker group | 4J |
| LIN A1 | COU [ZBE] LIN | 21J |
| LIN E1 | Steering LIN | 29J |
| LVDS | Low voltage differential signal | 7F |
| MOST | Media Oriented System Transport | 10H |
| N73 | EIS [EZS] control unit | 30D |
| N80 | Steering column module | 25H |
| N93 | Central gateway control unit | 25D |
| N93/1 | Audio tuner control unit | 7J |
| S110 | Left multifunction steering wheel button group | 30H |
| S111 | Right multifunction steering wheel button group | 31H |
| S148 | Center console button group | 22H |
| U253 | Not valid for SPLITVIEW display | 1C |
| U500 | Not valid for Sound System | 1J |
