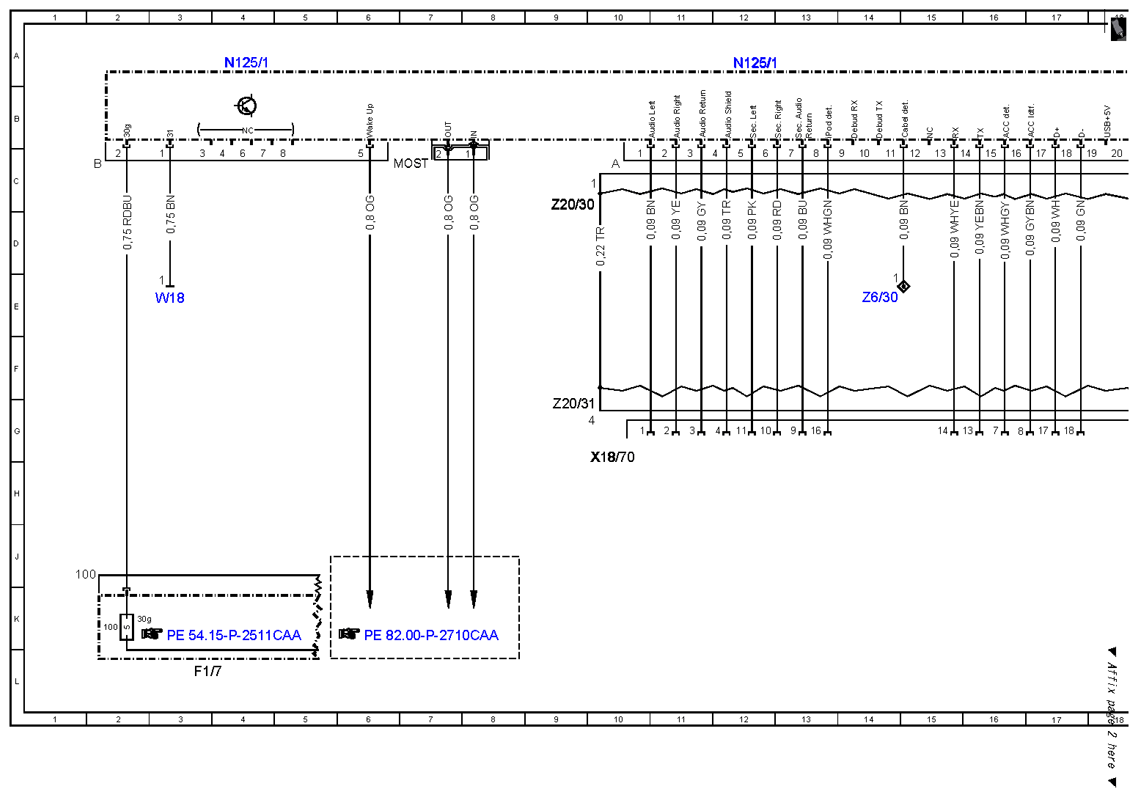

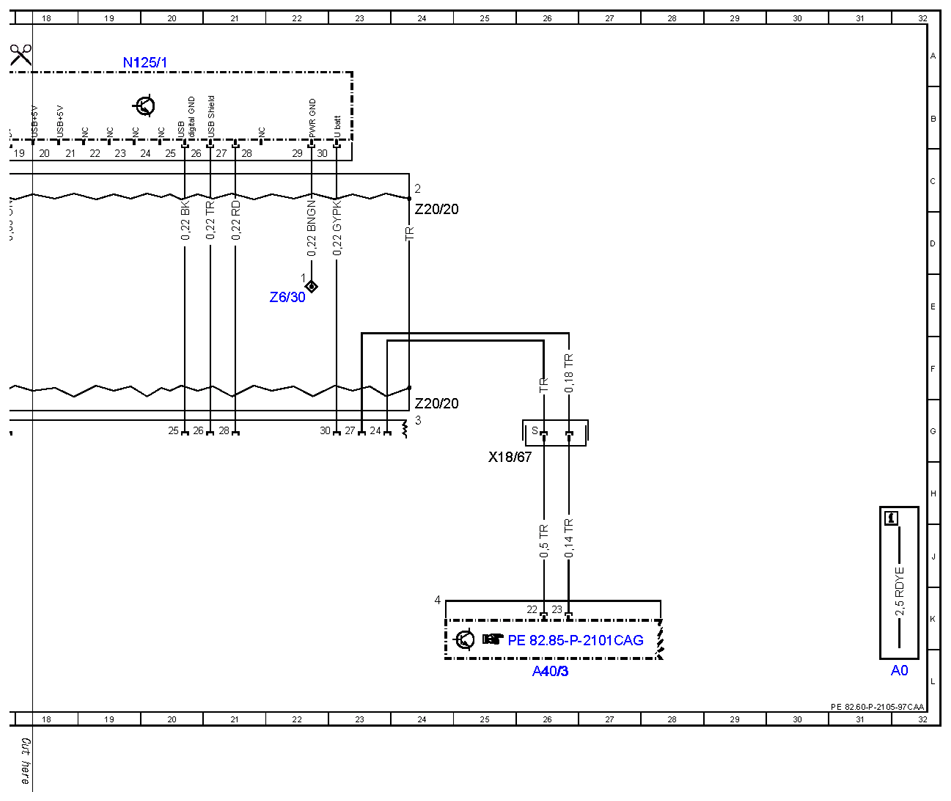

Wiring diagram for media interface control unit - PE82.60-P-2105-97CAA
MODEL 216.3 except CODE (498) Japan version with CODE (518) Media interface as of model year 2010 /YoM 09 model refinement package, control unit N125/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A40/3 | COMAND control unit | 26L |
| F1/7 | Left instrument panel fuse box | 3L |
| F1/7f100 | Fuse 100 | 2K |
| MOST | Media Oriented System Transport | 7C |
| N125/1 | Media interface control unit | 4A |
| N125/1 | Media interface control unit | 12A |
| N125/1 | Media interface control unit | 19A |
| W18 | Ground (left front seat crossmember) | 3E |
| X18/67 | Media interface connector 1 | 25H |
| X18/70 | Media interface connector | 10H |
| Z20/20 | Media Interface shielding | 24G |
| Z20/20 | Media Interface shielding | 24D |
| Z20/30 | Tracer wire connector sleeve | 9C |
| Z20/31 | Tracer wire connector sleeve | 9G |
| Z6/30 | Circuit 31 connector sleeve | 14E |
| Z6/30 | Circuit 31 connector sleeve | 22E |
