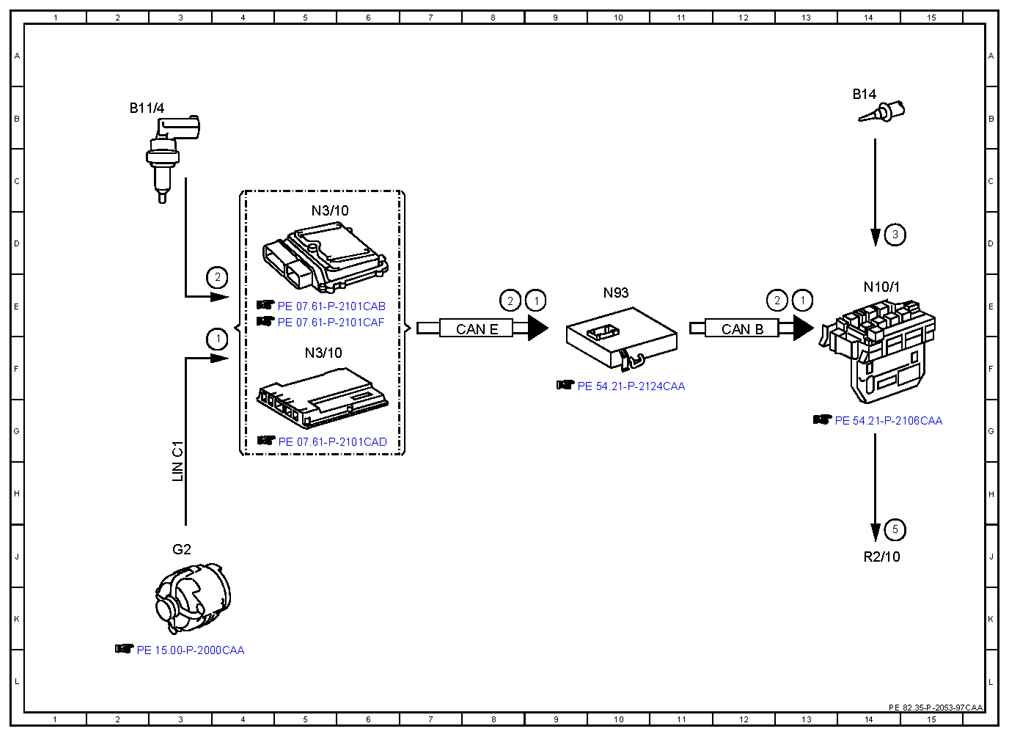

Electrical function schematic for heated wiper park position - PE82.35-P-2053-97CAA
MODEL 216.3 as of model year 09/YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 61, status | 4F |
| 1 | Circuit 61, status | 9E |
| 1 | Circuit 61, status | 13E |
| 2 | Coolant temperature sensor, signal | 4E |
| 2 | Coolant temperature sensor, signal | 8E |
| 2 | Coolant temperature sensor, signal | 13E |
| 3 | Outside temperature indicator temperature sensor, signal | 15D |
| 5 | Wiper park position heater, actuation | 14J |
| B11/4 | Coolant temperature sensor | 3B |
| B14 | Outside temperature display temperature sensor | 14B |
| CAN B | Interior CAN | 12E |
| CAN E | Chassis CAN | 8E |
| G2 | Alternator | 3J |
| LIN C1 | Drive train LIN | 3H |
| N10/1 | Front SAM control unit with fuse and relay module | 14E |
| N3/10 | ME-SFI [ME] control unit | 6D |
| N3/10 | ME-SFI [ME] control unit | 6F |
| N93 | Central gateway control unit | 10E |
| R2/10 | Wiper park heater | 14J |
