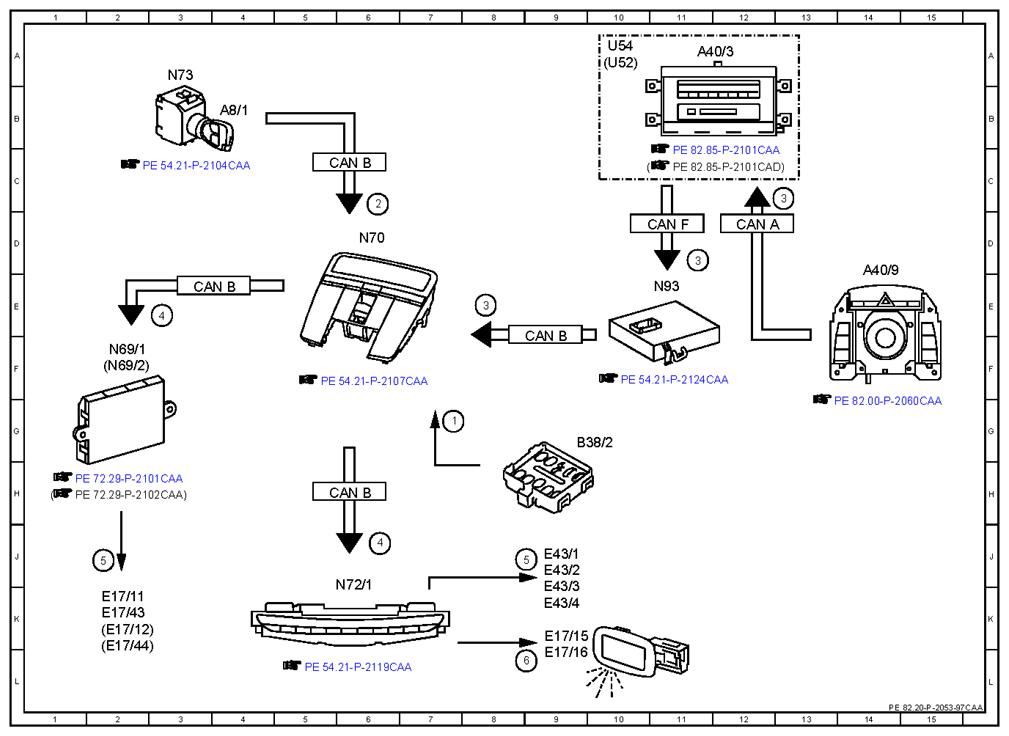

Electrical function schematic ambiance illumination - PE82.20-P-2053-97CAA
MODEL 216.3 with CODE (876) Interior lights package as of model year 2009 /YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Rain/light sensor, status | 7G |
| 2 | Circuit 15, status | 6C |
| 3 | Ambiance illumination brightness, status | 8E |
| 3 | Ambiance illumination brightness, status | 11D |
| 3 | Ambiance illumination brightness, status | 13C |
| 4 | Ambience illumination, request | 3E |
| 4 | Ambience illumination, request | 6J |
| 5 | Ambience illumination, actuation | 2J |
| 5 | Ambience illumination, actuation | 8J |
| 6 | Footwell lamp, actuation | 8L |
| A40/3 | COMAND control unit | 11A |
| A40/9 | Front central operating unit | 14E |
| A8/1 | Transmitter key | 4B |
| B38/2 | Rain/light sensor | 9G |
| CAN A | Telematics CAN | 12D |
| CAN B | Interior CAN | 6C |
| CAN B | Interior CAN | 4E |
| CAN B | Interior CAN | 9E |
| CAN F | Central CAN | 11D |
| E17/11 | Left door inside handle illumination | 2K |
| E17/12 | Right door inside handle illumination | 2K |
| E17/15 | Right front footwell lamp | 9K |
| E17/16 | Left front footwell lamp | 9L |
| E17/43 | Left door trim strip illumination | 2K |
| E17/44 | Right door trim strip illumination | 2L |
| E43/1 | Ambiance illumination LED 1 | 9J |
| E43/2 | Ambiance illumination LED 2 | 9J |
| E43/3 | Ambiance illumination LED 3 | 9K |
| E43/4 | Ambiance illumination LED 4 | 9K |
| N69/1 | Left door control unit | 2F |
| N69/2 | Right door control unit | 2F |
| N70 | Overhead control panel control unit | 6D |
| N72/1 | Upper control panel control unit | 6K |
| N73 | EIS [EZS] control unit | 3A |
| N93 | Central gateway control unit | 11E |
| U52 | Valid for Japan | 10A |
| U54 | Valid for all except Japan | 10A |
