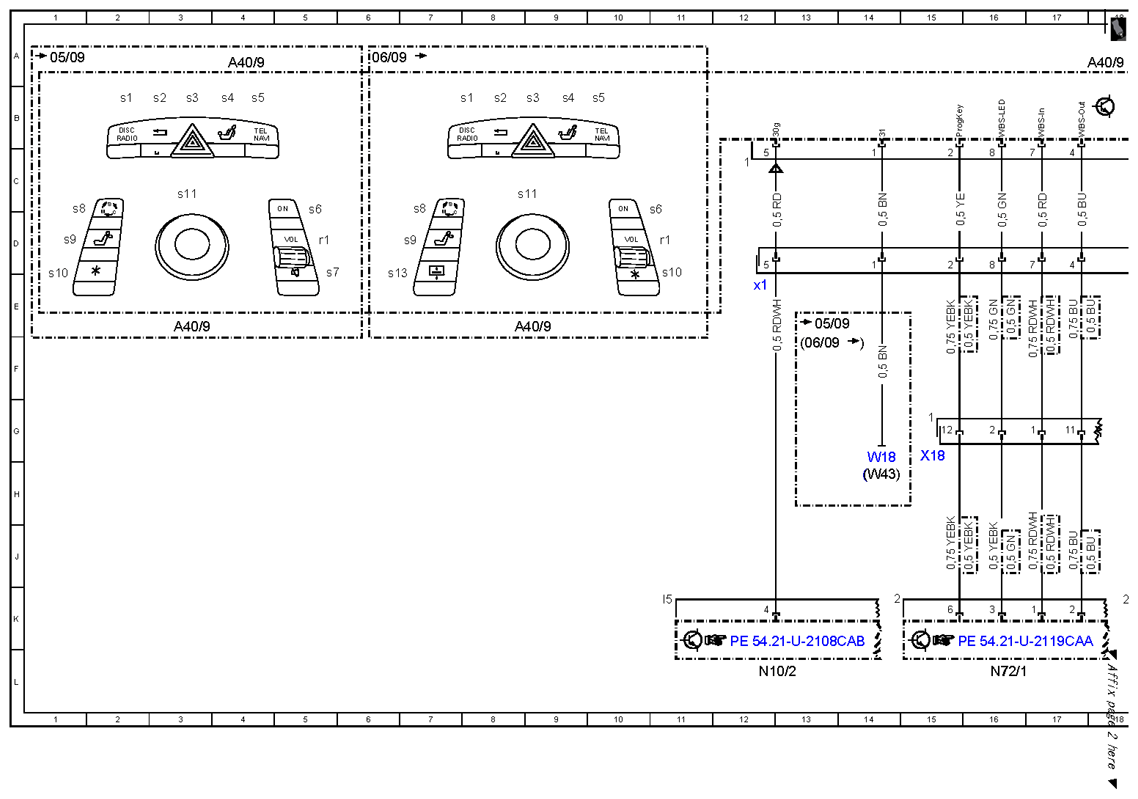

| A40/9 |
Front central operating unit |
18A |
| A40/9 |
Front central operating unit |
3E |
| A40/9 |
Front central operating unit |
4A |
| A40/9 |
Front central operating unit |
8E |
| A40/9r1 |
Volume control |
5D |
| A40/9r1 |
Volume control |
11D |
| A40/9s1 |
Disc/radio quick select button |
2B |
| A40/9s1 |
Disc/radio quick select button |
8B |
| A40/9s10 |
Freely programmable button |
1E |
| A40/9s10 |
Freely programmable button |
11E |
| A40/9s11 |
Turn/push control |
3C |
| A40/9s11 |
Turn/push control |
8C |
| A40/9s13 |
Rear window roller sun blind button |
6E |
| A40/9s2 |
Button "Back" |
3B |
| A40/9s2 |
Button "Back" |
8B |
| A40/9s3 |
Hazard warning system button |
3B |
| A40/9s3 |
Hazard warning system button |
9B |
| A40/9s4 |
Multicontour seat quick select button |
4B |
| A40/9s4 |
Multicontour seat quick select button |
9B |
| A40/9s5 |
Telephone/navigation quick select button |
4B |
| A40/9s5 |
Telephone/navigation quick select button |
10B |
| A40/9s6 |
Button "ON" |
5D |
| A40/9s6 |
Button "ON" |
11D |
| A40/9s7 |
Mute button |
5E |
| A40/9s8 |
Transmission modes button |
1D |
| A40/9s8 |
Transmission modes button |
2D |
| A40/9s9 |
Head restraint folding button |
1D |
| A40/9s9 |
Head restraint folding button |
7D |
| A40/9x1 |
Front central operating unit connector |
12E |

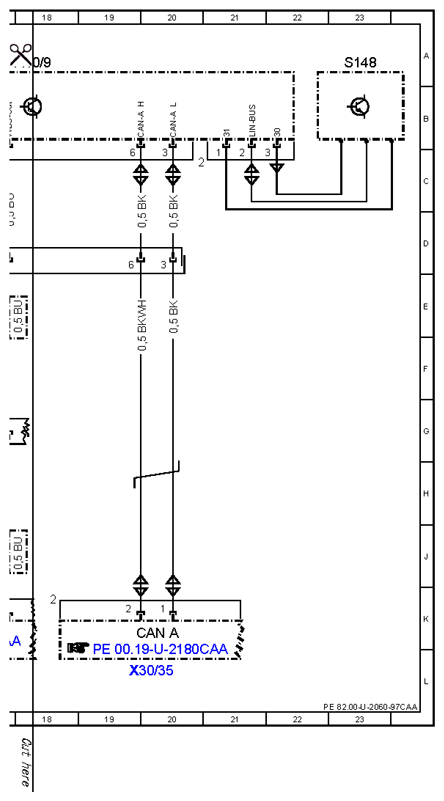

| CAN A |
Telematics CAN |
20K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12L |
| N72/1 |
Upper control panel control unit |
16L |
| S148 |
Center console button group |
23A |
| W18 |
Ground (left front seat crossmember) |
14H |
| W43 |
Ground (reference, image transmission systems) |
14H |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
15G |
| X30/35 |
Telematics CAN voltage distributor connector |
20L |
