Emergency call system block diagram - GF82.95-P-0004-02LAU

MODEL 216 with CODE (359) TELE AID emergency call system as of Model Year 09 /AEJ 08

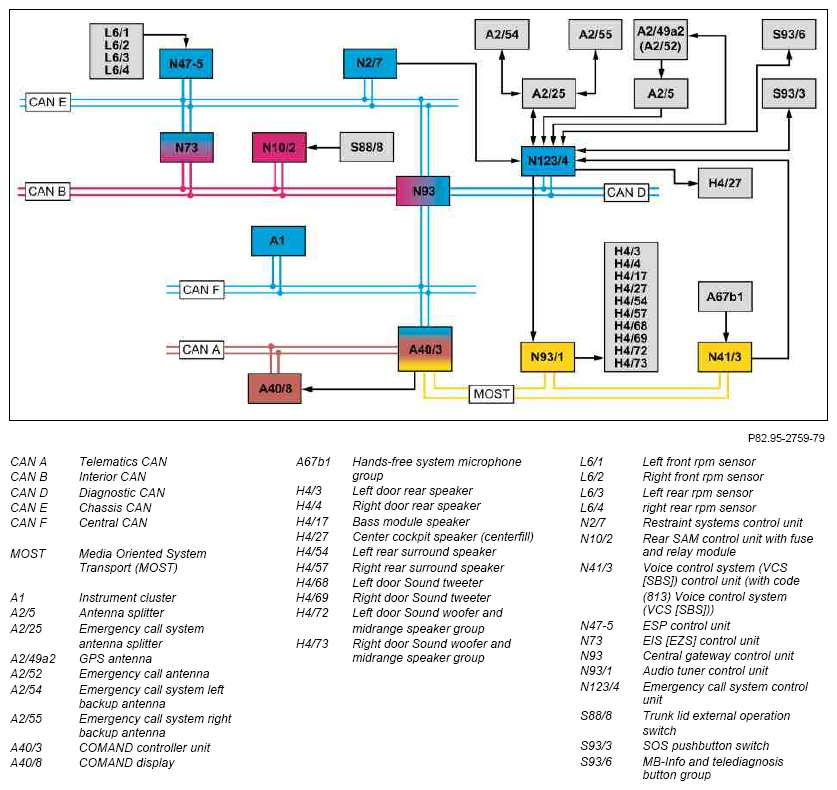

Fig 1: Emergency Call System Block Diagram

Courtesy of MERCEDES-BENZ USA
