Emergency call antenna splitter component description - GF82.95-P-4001SXU
MODEL 221.0/1 with CODE (494) USA version up to Model Year 8
MODEL 221.0/1 with CODE (389) Mobile phone preinstallation with universal interface, USA/Canada up to Model Year 8
MODEL 216.3 with CODE (494) USA version up to Model Year 8

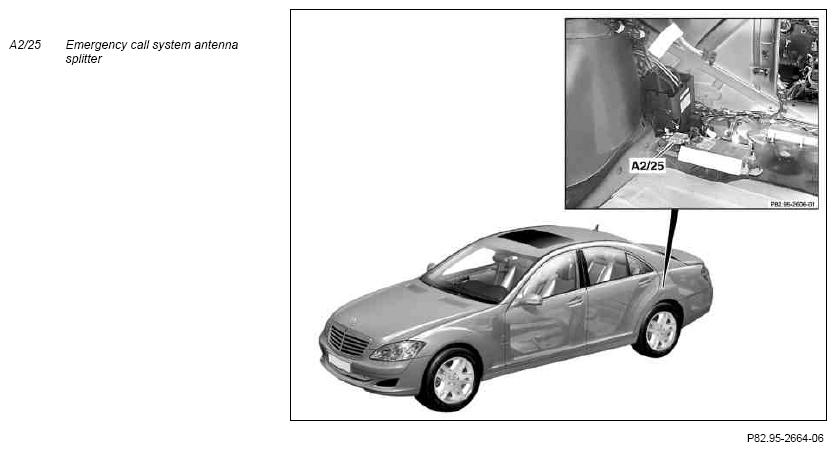

Illustrated on model 221
Location
The emergency call system antenna splitter is installed in the front of the trunk on the left- hand side.
Task and function
The emergency call system antenna splitter connects the emergency call system left backup antenna (A2/54) and the emergency call system right backup antenna (A2/55).
The emergency call system left backup antenna and the emergency call system right backup antenna are used on model 221 up to 31.12.05 by the telephone module for Telematic Alarm Identification on Demand (emergency call system) (TELE AID) in case of failure of the emergency call antenna (A2/52) or in case of poor reception or transmission quality of the emergency call antenna over the emergency call system antenna splitter.
On model 221 as of 1.1.06 and on model 216, the emergency call system left backup antenna and the emergency call system right backup antenna are used by the TELE AID in case of failure or poor reception or transmission quality of the telephone and GPS roof antenna (A2/49) (model 221) or telephone and GPS antenna (A2/49) (model 216) over the emergency call system antenna splitter.
